Product Overview

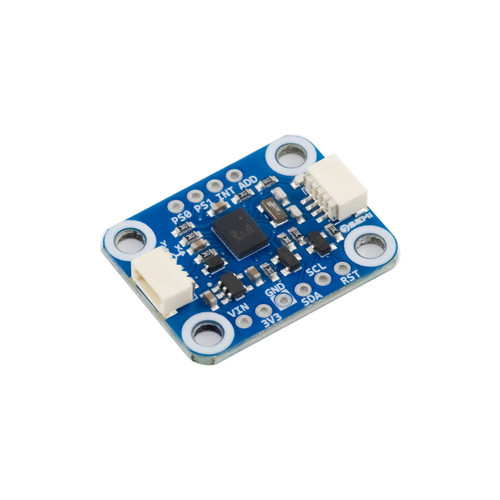

Explore the revolutionary BNO055 9-Axis Absolute Orientation Breakout by 7SEMI - the definitive answer for achieving accurate and precise orientation sensing. This intelligent sensor boasts advanced features and cutting-edge technology, ensuring a robust performance.

Fusing an accelerometer, gyroscope, magnetometer, and orientation capabilities, the BNO055 provides precise and reliable orientation data for diverse applications. Seamlessly integrate it into your projects or systems with its cutting-edge I2C interface.

At the core of this device lies the Bosch BNO055 Intelligent Smart sensor, combining accelerometer, gyroscope, magnetometer technologies. Leveraging state-of-the-art advancements, it delivers accurate measurements of acceleration, angular rate, and magnetic field strength. A sophisticated fusion algorithm enhances its ability to calculate orientation data with unmatched precision and stability.

The BNO055 boasts an array of technical specifications, guaranteeing optimal performance and adaptability. Its operating voltage spans 3.3V and 5.0V, ensuring compatibility with various systems, while low power consumption extends battery life. Additionally, its compact size and user-friendly interface simplify integration into any project or application.

Whether you're engaged in robotics, drone development, or IoT projects, the 7SEMI BNO055 9-Axis Absolute Orientation Breakout stands as the ultimate solution for your orientation sensing requirements. Settle for nothing but the best - elevate your project today and savor the unparalleled performance of the BNO055!

Key Features

Absolute Orientation (Euler Vector, 100Hz) Three axis orientation data based on a 360 degree sphere
Absolute Orientation (Quaterion, 100Hz) Four point quaternion output for more accurate data manipulation
Angular Velocity Vector (100Hz) Three axis of 'rotation speed' in rad/s
Acceleration Vector (100Hz) Three axis of acceleration (gravity + linear motion) in m/s^2
Magnetic Field Strength Vector (20Hz) Three axis of magnetic field sensing in micro Tesla (uT)
Linear Acceleration Vector (100Hz) Three axis of linear acceleration data (acceleration minus gravity) in m/s^2
Gravity Vector (100Hz) Three axis of gravitational acceleration (minus any movement) in m/s^2
Accelerometer, Gyroscope, Magnetometer, 9 Axis Sensor I2C
Temperature (1Hz) Ambient temperature in degrees celsius
Dimensions: 21mm x 27mm x 4mm

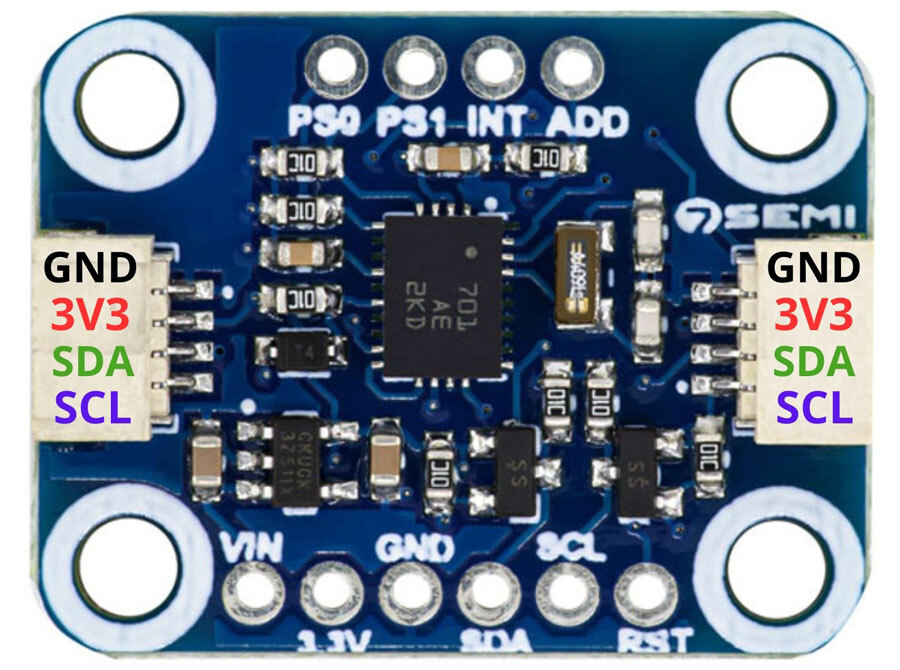

Uses I2C address 0x28 (default) or 0x29
