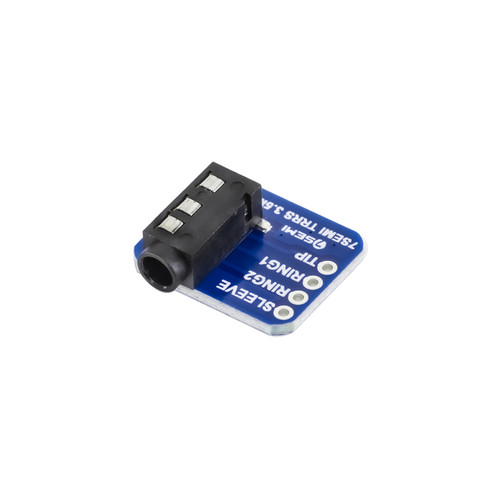

A specialized form of the 3.5mm audio jack, known as the TRRS 3.5mm audio jack breakout, is engineered to grant access to four distinct audio channels: left audio, right audio, microphone input, and ground. The acronym TRRS denotes "Tip, Ring, Ring, Sleeve," signifying the four contact points on the connector. Typically, the TRRS 3.5mm audio jack breakout comprises a female connector on one end with solder pads or pins, facilitating seamless integration into electronic projects. This particular connector finds frequent application in smartphones, tablets, and laptops, specifically for accommodating headphones with built-in microphones. Through the incorporation of a TRRS 3.5mm audio jack breakout, it becomes feasible to establish connections between audio signals, microphones, and various electronic components such as amplifiers, microcontrollers, or signal processing modules. This capability broadens the scope of potential audio applications, encompassing projects like voice recognition systems, sound recording and playback setups, and mobile communication devices. The module's compact dimensions and user-friendly design render it an indispensable tool for audio enthusiasts, hobbyists, and professionals alike.
TRRS 3.5mm Audio Jack Breakout Dimensions
