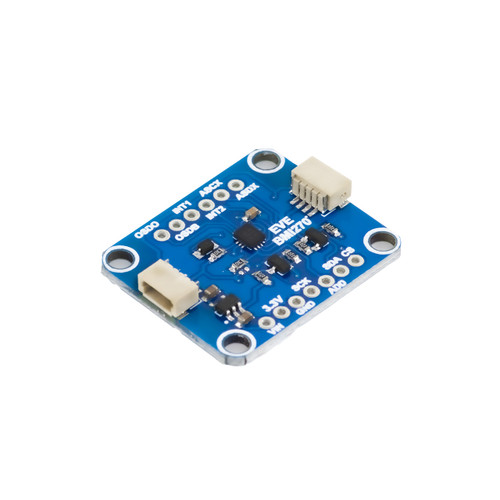

Name: IMU BMI270 Accelerometer and Gyroscope Breakout STEMMA QT / Qwiic
SKU: ES-12135
Price: 845 INR
Availability: InStock

Product Overview

The breakout board ES-12135 seamlessly incorporates Bosch Sensortec's BMI270, a pivotal member within the BMI260 family of IMUs designed to provide swift and precise inertial sensing for wearable applications. Boasting Bosch's proven automotive gyroscope technology alongside an enhanced accelerometer, BMI270 stands out with the industry's inaugural self-calibrating gyroscope that utilizes motionless CRT (Component ReTrimming) functionality. This innovative feature compensates for typical soldering drifts in MEMS, ensuring minimal post-soldering sensitivity errors, limited to just +- 0.4%. Additionally, BMI270 encompasses user-friendly gesture recognition, context awareness, and activity recognition, complemented by an integrated plug-and-play step counter/detector meticulously optimized for accurate step counting in wrist-worn devices. Beyond wristwear, this IMU proves versatile for various wearable devices, including hearables, smart clothing, intelligent footwear, smart eyewear, and ankle bands.

STEMMA QT / Qwiic 4-pin 1mm Pitch White Female Connector Cable 150mm Long - Both Side can be purchased seperately.

Key Features

3.3v and 5v voltage operation
16-bit 3-axis accelerometer with +- 2g/4g/8g/16g range
16-bit 3-axis gyroscope with +- 125dps/250dps/500dps/1000dps/2000dps range
Significant motion/Any motion/Motion detect/No motion/Stationary detect/Wrist wear wakeup/Wrist worn step counter and detector/Activity change recognition/Push arm down/Pivot up/Wrist jiggle/Flick in /out

The BMI270 Accelerometer and Gyroscope Breakout is an advanced sensor module that combines an accelerometer and a gyroscope to measure motion and orientation. It can operate with both 3.3V and 5V power supplies, making it easy to integrate into a wide range of systems.

The accelerometer in the BMI270 can measure linear acceleration in three axes with a range of +/- 2g, +/- 4g, +/- 8g, or +/- 16g. Meanwhile, the gyroscope can measure angular velocity in three axes with a range of +/- 125dps, +/- 250dps, +/- 500dps, +/- 1000dps, or +/- 2000dps. The module also features advanced motion detection capabilities, including significant motion, any motion, no motion, stationary detect, wrist wear wakeup, wrist worn step counter and detector, activity change recognition, push arm down, pivot up, wrist jiggle, and flick in/out.

The BMI270 Accelerometer and Gyroscope Breakout is highly precise and accurate, making it ideal for applications that require accurate motion and orientation sensing, such as robotics, virtual reality, and motion tracking. Its advanced motion detection capabilities also make it suitable for applications that require advanced activity recognition and wearables.

The IMU BMI270 Accelerometer and Gyroscope Breakout is a powerful and versatile sensor module that can provide valuable data on motion and orientation in a wide range of applications.
