7Semi EG800AK-CN Dongle LTE module

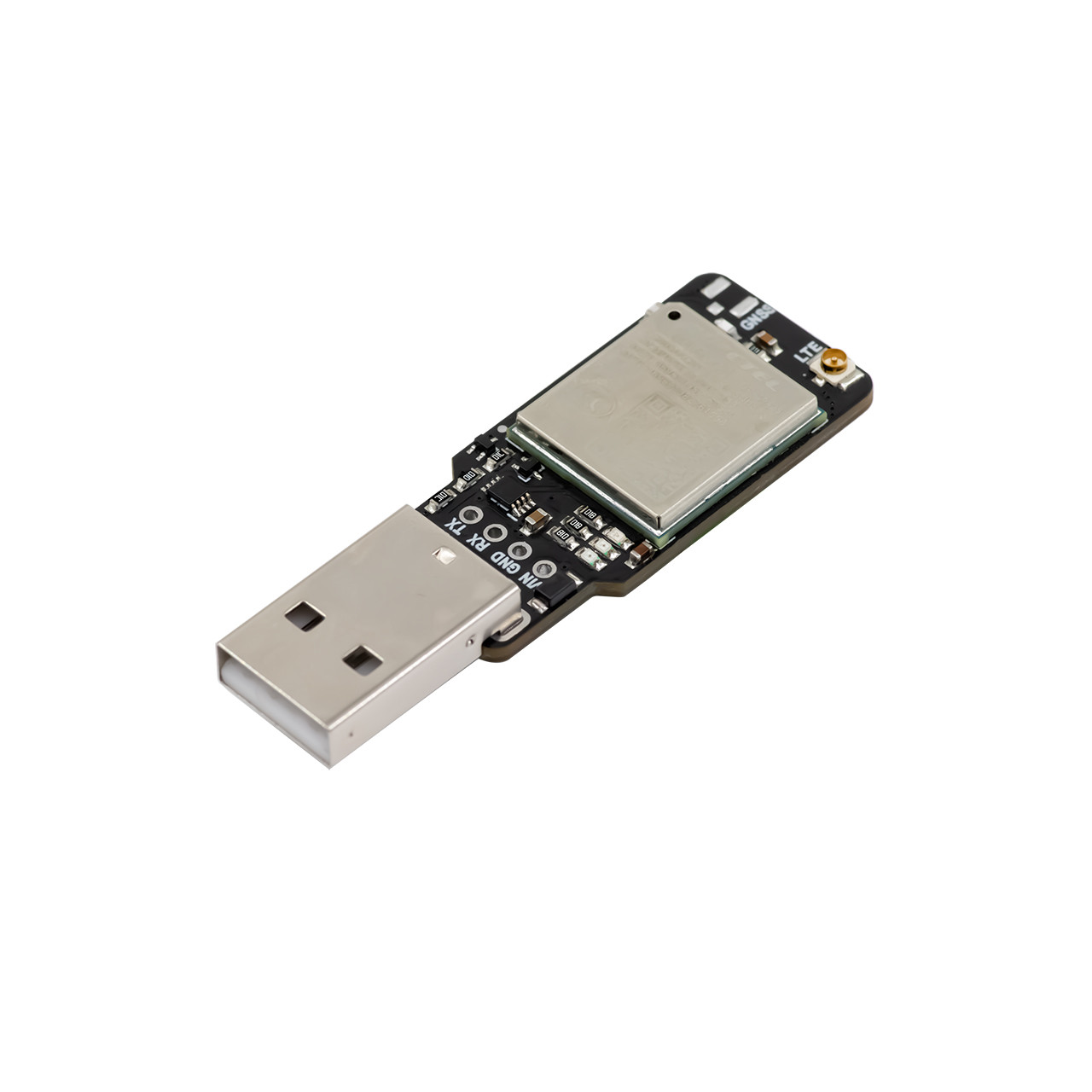

7Semi LTE Communication module

7Semi LTE Communication module

3D Model Viewer

Overview

The 7Semi EG800AK-CN LTE USB Dongle is a compact LTE Cat 1 communication module designed for rapid cellular connectivity, AT command testing, IoT development, telemetry applications, remote monitoring, and embedded system integration. Built around the Quectel EG800AK-CN LTE modem, the board combines LTE communication, SIM card support, onboard USB connectivity, and UART breakout pins in a convenient USB dongle form factor. Whether you are testing AT commands directly from a PC, integrating LTE into an Arduino project, or developing industrial IoT solutions, the 7Semi EG800AK-CN provides a simple and reliable cellular communication platform.

Features

• Quectel EG800AK-CN LTE Cat 1 module
• USB Type-A dongle form factor
• SIM card slot for cellular connectivity
• UART interface breakout pins
• LTE antenna connector
• Direct AT command access
• Compatible with Arduino, ESP32, STM32, and other MCUs
• Suitable for IoT, telemetry, remote monitoring, and industrial applications
• Compact and lightweight design
• Plug-and-play PC connectivity

Technical Specification

Pinouts

Hardware connection with USB to UART converter

Hardware connection with USB to UART converter

Hardware connection with Arduino UNO

Hardware connection with Arduino UNO

Application with Arduino

• This example shows how to communicate with the 7Semi EG800AK-CN PICO LTE module using an Arduino UNO. The Arduino works as a USB-to-UART bridge, allowing AT commands typed in the Arduino IDE Serial Monitor to be sent directly to the EG800 module.

#include <SoftwareSerial.h>

SoftwareSerial eg800(2, 3);   // RX, TX

void setup()
{
  Serial.begin(115200);      // Serial Monitor
  eg800.begin(115200);       // EG800 Module

  Serial.println("EG800 Ready");
  Serial.println("Type AT commands below...");
}

void loop()
{
  // EG800 -> Serial Monitor
  while (eg800.available())
  {
    Serial.write(eg800.read());
  }

  // Serial Monitor -> EG800
  while (Serial.available())
  {
    eg800.write(Serial.read());
  }
}

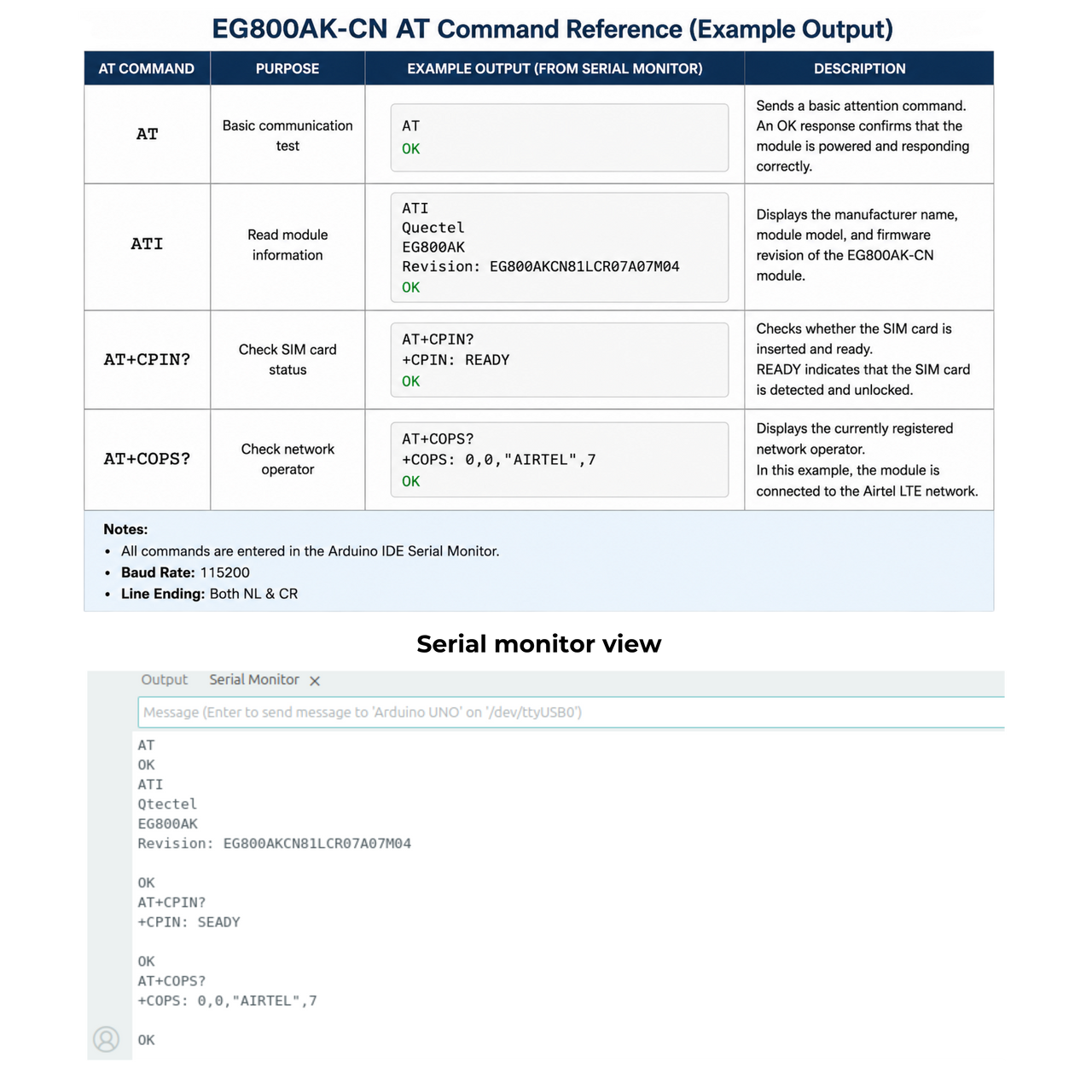

AT Commands you can try to test the module

AT Commands you can try to test the module

Mechanical

Dimensions: L=54mm W=18mm H=7.91mm

Downloads

Frequently Asked Questions
