7Semi SCD43 CO2, Temperature and Humidity Sensor Breakout I2C qwiic

7Semi
SKU
ES-12295

Measures carbon dioxide, temperature and relative humidity for indoor air-quality monitoring.

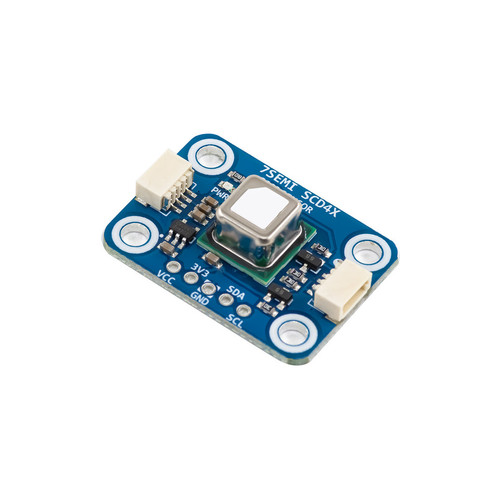

7Semi SCD43 CO2, Temperature and Humidity Sensor Breakout 7Semi SCD43 CO2 Sensor Breakout Board angled view showing the SCD43 CO2 sensor, compact PCB design, Qwiic connectors, pin headers and mounting holes

Select a photo to enlarge it.

30mm x 22mm x 7.83mm

Write a Review
$43.00
Only 3 left

Shipped in 24 Hours from Mumbai Warehouse

Adding to cart… The item has been added

About this product

The 7Semi SCD43 CO₂, Temperature and Humidity Sensor Breakout  is a compact sensor module for accurate indoor air-quality monitoring. It uses Sensirion’s PASens photoacoustic NDIR technology to directly measure CO₂ levels from 0ppm to 40,000 ppm, with an accuracy of ±(30 ppm + 3% of the reading). It also measures temperature and relative humidity, making it ideal for HVAC systems, smart buildings, indoor air-quality monitors and IoT applications.

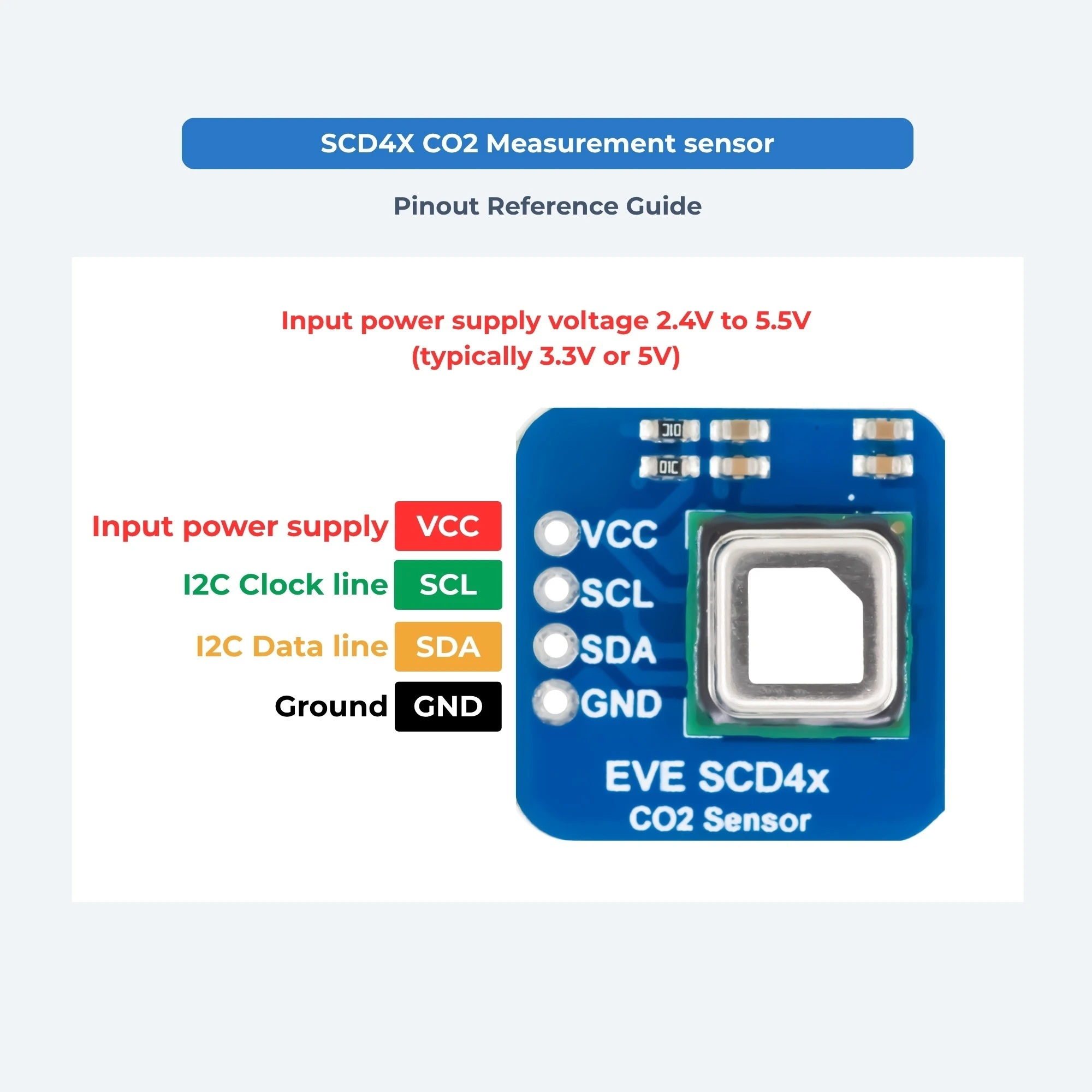

Important power note: When powering the board through VCC, the 3V3 pin acts as the regulated 3.3V output with 200mA current rating . Alternatively, the board can be powered directly through the 3V3 pin. Do not apply power to both VCC and 3V3 at the same time.


Key Features

  • Measures CO₂, temperature and relative humidity
  • CO₂ measurement range: 0ppm to 40,000ppm
  • CO₂ accuracy: ±(30 ppm + 3% of measured value)
  • PASens® photoacoustic NDIR technology for true CO₂ measurement
  • Supports automatic self-calibration (ASC)
  • Supports forced recalibration (FRC)
  • Supports single-shot measurement
  • Easy integration through I²C interface
  • Compact breakout board for embedded and IoT applications

Calibration Certificate

A calibration certificate is available for the sensor. To request the certificate, please email us the sensor serial number, and we will share the corresponding calibration certificate.

Items Included

  • 1 × 7Semi SCD43 Breakout Board (ES-12295)
  • 1 × Pin Header

Note: The Qwiic cable is not included and must be purchased separately.
