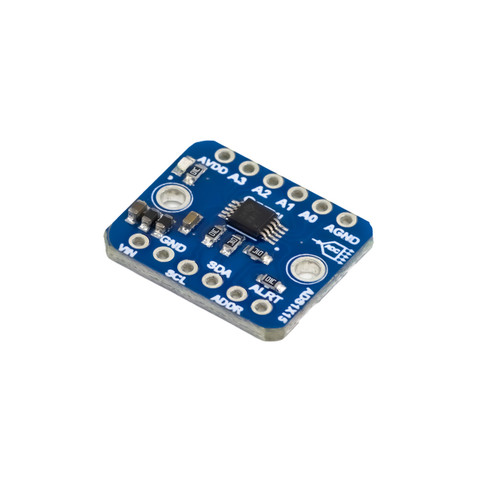

The 7Semi ADS1015 12-bit 4-Channel ADC Board features the Texas Instruments ADS1015 analog-to-digital converter, providing 12-bit resolution at up to 3.3 kSPS. It includes a programmable gain amplifier (PGA) and supports I2C communication, facilitating easy integration with microcontrollers. The board operates over a supply voltage range of 2.0V to 5.5V, making it suitable for various sensor measurement applications.
Key Features:
- 12-Bit Noise-Free Resolution: Achieve superior accuracy with minimal noise interference, ensuring precise measurements in all conditions.
- Wide Supply Range (2.0 V to 5.5 V): Flexible voltage options make this board compatible with various power sources.
- Low Power Consumption: Consumes just 150 µA in continuous-conversion mode, optimizing energy efficiency for battery-powered applications.
- Programmable Data Rate: Adjust the sampling speed from 128 SPS to 3.3 kSPS to meet your specific measurement needs.
- Internal Low-Drift Voltage Reference and Oscillator: Ensures stable and consistent performance over time, crucial for long-term projects.
- I2C Interface with Four Pin-Selectable Addresses: Simplifies integration and allows multiple devices to communicate seamlessly within your system.
- Four Single-Ended or Two Differential Inputs: Offers versatile input options to suit different measurement configurations.
- Programmable Gain Amplifier (PGA): Enhances signal processing, enabling accurate readings across a wide range of input levels.
- Compact and Space-Saving Design: Perfect for applications with limited space, without compromising on functionality.
