Product Overview
The 7Semi ADS1115 16-bit 4-Channel ADC Board integrates the Texas Instruments ADS1115 ADC, offering high-precision analog-to-digital conversion with a programmable gain amplifier (PGA) and I2C interface. It operates over a wide supply range of 2.0V to 5.5V, consumes low power, and supports data rates from 8 to 860 samples per second, making it ideal for sensor measurements in industrial, automotive, and portable applications.
Key Features:
-
16-Bit High-Resolution ADC: Achieve superior precision and accuracy in your measurements, ensuring high-quality data conversion.
-
Wide Supply Range (2.0 V to 5.5 V): Compatible with various power sources, offering versatility in your design.
-
Low Power Consumption: Operates with just 150 µA in continuous-conversion mode, optimizing energy efficiency in battery-powered applications.
-
Programmable Data Rate: Customize your sampling speed from 8 SPS to 860 SPS, perfect for different application needs.
-
Internal Low-Drift Voltage Reference and Oscillator: Provides stable and reliable performance, essential for long-term accuracy.
-

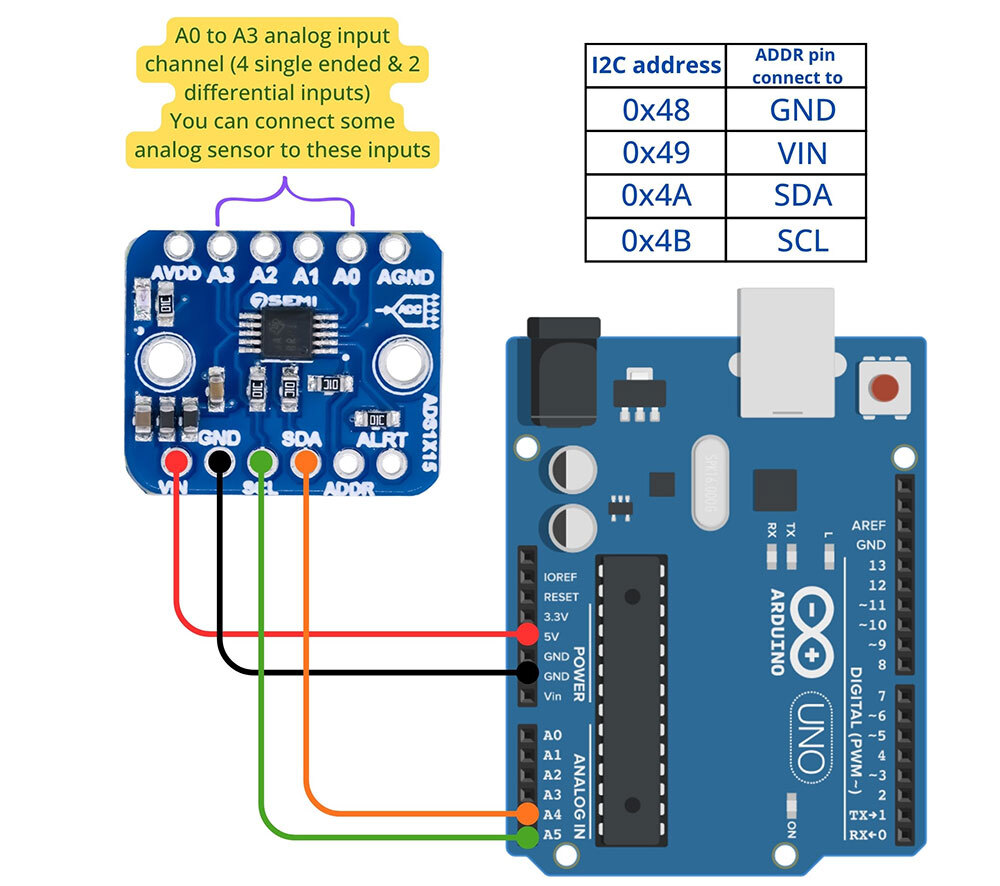

I2C Interface with Four Pin-Selectable Addresses: Facilitates easy integration and communication between multiple devices in your system.
-
Four Single-Ended or Two Differential Inputs: Flexible input configurations to match your specific measurement requirements.
-
Programmable Gain Amplifier (PGA): Enhances signal processing, allowing accurate readings across various input levels.
-
Wide Operating Temperature Range (-40C to +125C): Designed to perform reliably in extreme conditions, making it ideal for industrial and automotive applications.
Resources
Warranty Information
All the products supplied by 7semi are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
