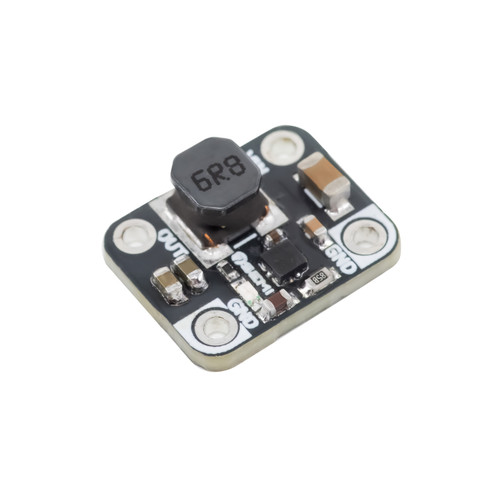

Buck Converter Breakout In 3.0-65V Out 5V/0.6A - LMR36506-Q1

High-Efficiency Buck Converter for Demanding Automotive and Industrial Use: Ensure Consistent 5V Output with Rugged Reliability

Power your systems with confidence using the 7Semi Buck Converter Breakout In 3.0-65V Out 5V/0.6A – LMR36506-Q1, a high-performance voltage regulator engineered for the most demanding applications. Designed to handle wide input voltage ranges, including automotive transients up to 70V, this converter ensures unwavering 5V output in harsh environments. Whether it's cold-crank vehicle conditions or unstable industrial power rails, this converter maintains operational integrity and system stability.

Built around the AEC-Q100 qualified LMR36506-Q1, this buck converter is tailored for rugged automotive and industrial setups. With superior EMI suppression and automatic efficiency optimisation between FPWM and PFM modes, it balances performance and energy efficiency. The integrated Power-Good (PGOOD) flag adds another layer of system reliability by enabling real-time voltage output monitoring without requiring extra supervisory components. Its compact, breadboard-friendly layout streamlines prototyping and deployment in embedded systems.

Key Features

• Wide Input Voltage Range (3.0V to 65V)
  Withstand extreme input conditions with transient protection up to 70V, ideal for automotive ECUs and industrial controls.

• Fixed 5V Output at 0.6A
  Consistent, regulated 5V output ensures reliable operation of critical system components.

• Automotive-Grade LMR36506-Q1 Controller
  AEC-Q100 certified for automotive use, built to handle temperature extremes, cold crank events, and noisy environments.

• Excellent EMI Performance
  Integrated switching controller and design suppress EMI, improving system signal integrity.

• PGOOD Flag Output
  Built-in monitoring functionality simplifies power supervision and enhances system diagnostics.

• High-Efficiency Operation with FPWM/PFM Modes
  Maintains high efficiency across load conditions with seamless power mode transitions.

• Compact, Developer-Friendly Breakout Board
  Breadboard-compatible format simplifies integration into prototypes and production systems.
