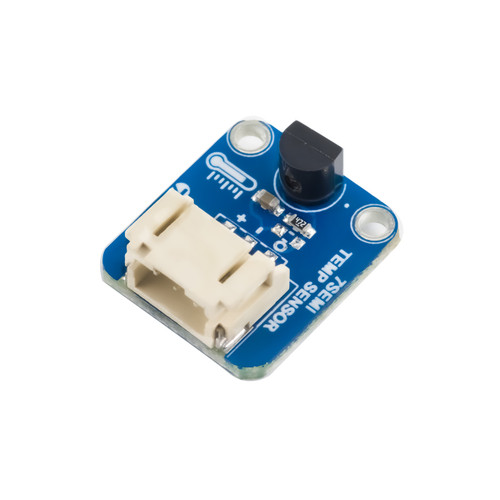

DS18B20+ 1-Wire Digital Temperature Sensor Breakout with 3Pin Connector

The 7Semi DS18B20+ 1-Wire Digital Temperature Sensor Breakout features the DS18B20+ sensor, offering precise temperature measurements from -55°C to +125°C with ±0.5°C accuracy between -10°C and +85°C. It utilizes a unique 1-Wire interface, allowing communication over a single data line, and includes a 3-pin JST connector for easy integration with microcontroller units (MCUs).

Key Features:

• Unique 1-Wire Interface:
  Only one port pin needed for communication, reducing complexity and component count.
• Integrated Temperature Sensor and EEPROM:
  Combines temperature sensing and data storage, simplifying your design.
• Wide Temperature Range:
  Measures temperatures from -55°C to +125°C with ±0.5°C accuracy between -10°C and +85°C.
• Programmable Resolution:
  Adjustable resolution from 9 bits to 12 bits, offering flexibility based on your application needs.
• No External Components Required:
  Operates without the need for additional components, streamlining your setup.
• Parasitic Power Mode:
  Requires only two pins (DQ and GND) for operation, eliminating the need for an external power supply.
• Multidrop Capability:
  Easily integrates multiple sensors on the same 1-Wire bus, ideal for distributed temperature sensing applications.
• Unique 64-Bit Serial Code:
  Each sensor has a unique identifier, allowing for precise control and monitoring of multiple sensors.
• Flexible Alarm Settings:
  User-definable nonvolatile alarm settings with an alarm search command to identify devices with temperatures outside programmed limits.
