7Semi Human Presence and Motion Sensor FOV 80° STHS34PF80 – 4 Metres with 6-Pin 2.5mm Connector
The 7Semi Human Presence and Motion Sensor is engineered around the STHS34PF80, a highly sensitive infrared sensing device that measures black-body radiation with precision. This compact board provides reliable human presence detection, motion sensing and ambient temperature monitoring within an 80° field of view, making it suitable for smart automation and safety applications. Its floating vacuum thermal transistor architecture eliminates self-heating errors by comparing exposed and shielded IR sensing elements, providing dependable performance across diverse indoor environments.
Designed for rapid prototyping and IoT integration, this module features a 6-pin JST XH 2.5mm side-entry connector, onboard PTH pins (3V3, GND, SCL, SDA, CS, INT), a red power LED, and standard mounting holes for effortless installation. The built-in algorithms distinguish stationary objects from dynamic ones, enabling effective human presence detection up to 4 metres without additional optics. Its wide 5–20 µm IR band-pass filter and low-power architecture ensure robust performance in lighting-independent scenarios such as smart lighting, automation, alarm systems, and occupancy analytics.
Features
-
High-Sensitivity IR Detection: Detects human presence and motion up to 4 metres without external lenses.
-
Wide 80° Field of View: Covers large areas for room occupancy, automation and safety systems.
-
Smart Processing Engine: Embedded algorithms distinguish stationary and moving objects for reliable detection.
-
Integrated Silicon IR Filter: Stable sensing across the 5–20 µm band, unaffected by visible light.
-
Low-Power Operation: Typical supply current around 10 μA, ideal for battery-powered IoT devices.
-
Flexible Interface Options: Supports both I2C and SPI for seamless MCU and microcontroller integration.
-
Convenient Hardware Design: Includes JST XH 2.5mm connector, PTH pins, red LED indicator and mounting holes.
-
Factory Calibrated: Pre-calibrated IR and temperature sensing for consistent results.

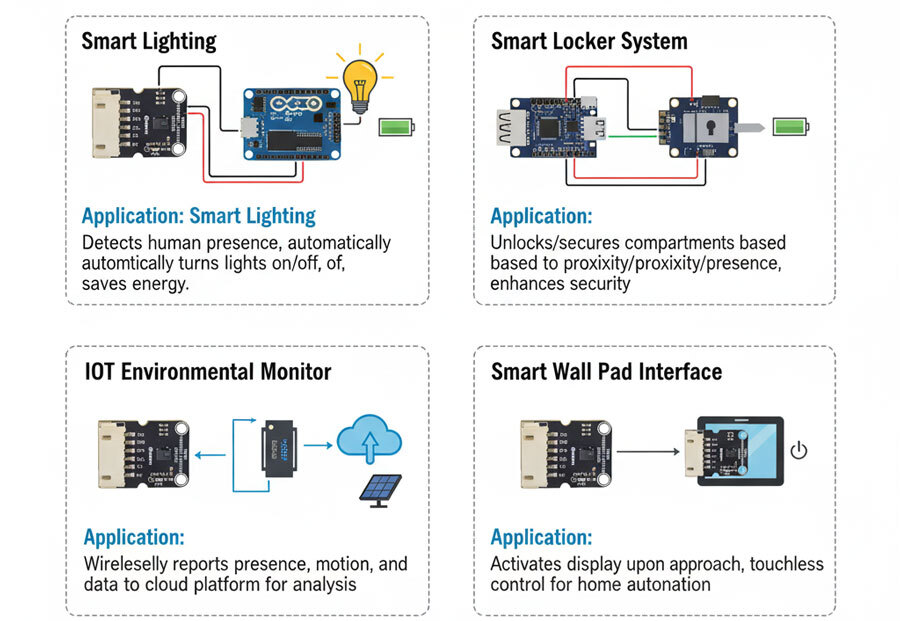

Applications
- Presence and proximity sensing
- Alarm / security systems
- Home automation
- Smart lighting
- IoT
- Smart lockers
- Smart wall pads
- Sensor Model:
- STHS34PF80 (STMicroelectronics)
- Field of View:
- 80 deg
- Detection Range:
- Up to 4 metres
- Supply Voltage:
- 3.3V
- Supply Current:
- 10 uA
- Interface:
- I2C / 3-wire SPI
- ODR Range:
- 0.25 Hz to 30 Hz
- One-Shot Mode:
- Supported
- IR Sensitivity:
- 2000 LSB/°C
- RMS Noise:
- 25 LSBrms
- Operating Wavelength:
- 5 µm to 20 µm
- Temperature Accuracy:
- +-0.3°C
- Connectivity:
- 6-Pin JST XH 2.5mm Side Entry
- Board Pins:
- 3V3, GND, SCL, SDA, CS, INT
- Indicators:
- Red Power LED
- Mounting:
- Four mounting holes
- I2C Address:
- 0x5A (Default)
