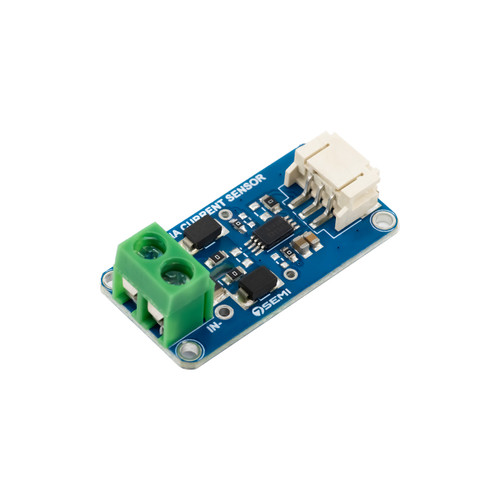

The 7Semi INA240 Breakout Board incorporates Texas Instruments' INA240 current-sense amplifier, providing a 20 V/V gain for precise bidirectional current measurement across a wide common-mode voltage range of -4V to 80V. It features enhanced PWM rejection, ensuring accurate readings in noisy environments, and is suitable for applications like motor drives and power management systems.
Key Features & Benefits:
- Gain: INA240A1: 20 V/V – Amplify your current sensing precision.
- Wide Common Mode Voltage Range (-4V to 80V): Measure currents accurately, even in systems operating below ground voltage.
- Enhanced PWM Rejection: Obtain reliable measurements in environments with PWM signals, filtering out noise for greater accuracy.
- High-Precision Voltage Output: Seamlessly integrate the INA240A1PW with your existing setup through its voltage output proportional to sensed current.
- Compact & Convenient: The breakout board's design fits easily into your projects while offering hassle-free access to essential pins.
- Versatile Applications: Ideal for diverse projects such as motor drives, solenoid control, battery management, and power monitoring.
Elevate Your Current Sensing Accuracy
The 7Semi INA240 breakout board is your gateway to superior current sensing precision. Its extensive common mode voltage range, advanced PWM rejection, and high-precision output make it a must-have tool for demanding applications. Choose the INA240 to unlock the full potential of your electronics projects.
