The 7SEMI MPPT Solar Charger is a compact, high-efficiency charging module designed for 3.7V Li-ion and 18650 batteries. Powered by the CN3791 MPPT controller, it maintains optimal solar power harvesting even during low-light conditions.
Key Features
-
CN3791 MPPT charging IC
-
Supports 1S Li-ion / Li-poly batteries
-
True MPPT tracking for maximum solar power
-
Solar input typically 5–18V
-
Automatic CC/CV charging
-
Charge status indication
-
High-efficiency switching architecture
-

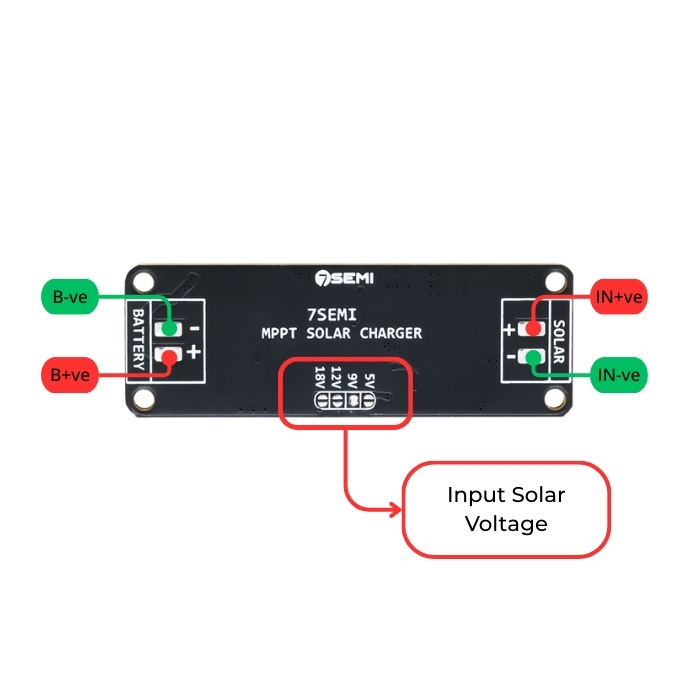

Plug-and-play connectors for battery and solar
Applications
-
Solar IoT nodes
-
Off-grid battery charging
-
Weather and environmental sensors
-
Solar-powered LoRa / GSM / ESP32 projects
-
Portable solar chargers
- Battery:
- 3.7V Li-ion or 18650
- Solar input:
- 5–18V typical
- Charge current:
- up to 2A (panel dependent)
- MPPT:
- Built-in voltage sampling algorithm
- Protection:
- Over-voltage, short-circuit, reverse polarity, over-temperature
