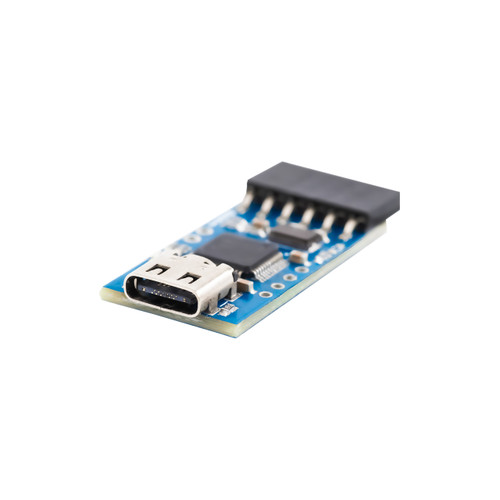

The 7Semi ST-LINK V2/V2.1 USB-C Debugger Programmer facilitates efficient debugging and programming of STM32 microcontrollers via SWIM and JTAG/SWD interfaces. Its USB-C connectivity ensures compatibility with modern devices, while the isolated variant (ST-LINK/V2-ISOL) offers robust protection by isolating the PC from the target board, handling voltages up to 1000 Vrms.
Key Features:
-
Versatile Microcontroller Support: Seamless compatibility with STM32 microcontrollers using SWIM and JTAG/SWD interfaces for precise debugging and programming.
-
Advanced USB-C Connectivity: Equipped with a USB-C interface for reliable, high-speed communication and modern device support.
-
High-Speed Programming: Supports low-speed (9.7 kbyte/s) and high-speed (12.8 kbyte/s) SWIM programming modes for quick data transfer.
-
Isolated Variant (ST-LINK/V2-ISOL): Features robust 1000 Vrms isolation between the PC and target board for enhanced safety and protection during debugging and programming.
-
LED Status Indicators: Real-time communication status is displayed through LED indicators, allowing quick visual feedback on programming and debugging activities.
-
Direct Firmware Updates (DFU): Support for direct firmware updates ensures that your tool remains up-to-date with the latest features and improvements.
Specifications
- Supports 1.65 V to 5.5 V on the SWIM interface and 1.65 V to 3.6 V on the JTAG/SWD interface.
- USB 2.0 full-speed compatible interface for seamless connection with modern computers.
- SWIM cable supports both ERNI connectors and pin headers.
- 5V power supplied via a USB connector.
- Supports JTAG/SWD and SWV (Serial Wire Viewer) communication.
- Operating temperature: 0C to 50C.
- 1000 Vrms high isolation voltage for ST-LINK/V2-ISOL variant.
This robust and efficient USB-C debugger and programmer is an indispensable tool for embedded system developers and engineers looking for a reliable and fast solution to their STM32 development needs.
