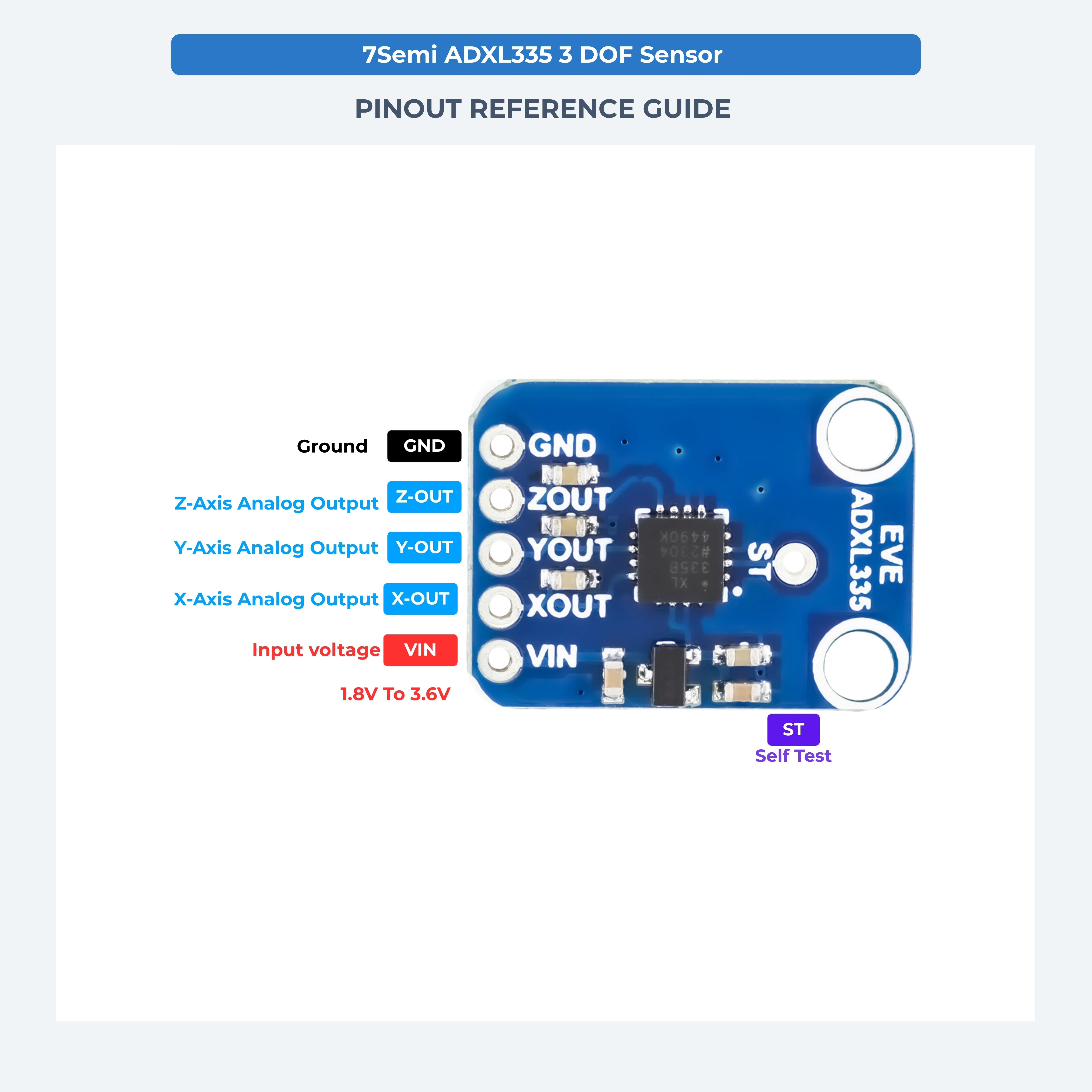

The 7Semi ADXL335 Accelerometer Breakout measures acceleration along the X, Y, and Z axes through analog outputs. It supports a ±3 g range for detecting tilt, motion, shock, and vibration. Its compact 21 × 16 mm design makes it suitable for robotics, drones, gaming controllers, and motion-sensing projects.
Key Features
-
Three-axis analog acceleration sensing
-
Measurement range: ±3 g
-
Low current consumption: 350 µA typical
-
Shock survival: Up to 10,000 g
Resources
- Datasheet ADXL335
- User Guide, Arduino Code etc
- Evelta ADXL335 3D STEP File Downlaod
- ADXL335 Quickstart Guide Web
- DXF file
- STEP File
ADXL345, ADXL335 and LIS3DH 3-Axis Accelerometer Breakout Comparison Table
- Category of product:
- Accelerometer 3 DOF
- Supply voltage:
- 5V DC
- Operating Temperature:
- -40C to 80C
- Communication Interface:
- Analog
- _3d_glb:
- https://7semi.com/content/3d-files/10184.glb
- Dimension in mm:
- 21mm x 16mm x 3.06mm
