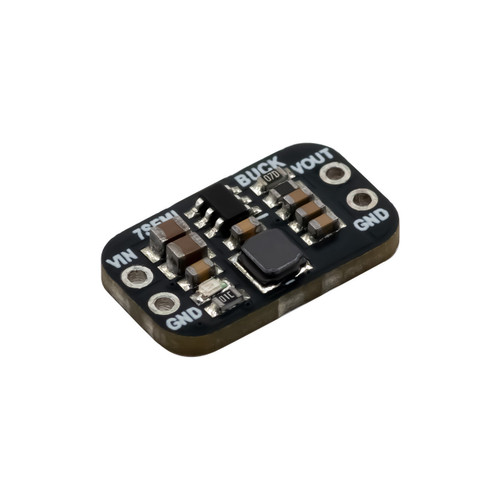

The 7Semi Buck Converter Module delivers a stable, regulated 12V DC output at up to 600mA from a wide 15V to 40V DC input range. Its synchronous step-down design uses integrated high-side and low-side MOSFETs to improve conversion efficiency without requiring an external catch diode. A high 2MHz switching frequency enables a compact module design, while Pulse-Frequency Modulation helps maintain efficiency under light-load conditions. Built-in undervoltage, overvoltage, overcurrent, and thermal protection support reliable operation in embedded electronics, industrial automation, IoT devices, and general-purpose power applications.
Key Features
- Wide 15V to 40V DC input range
- Fixed, regulated 12V DC output
- Up to 600mA continuous output current
- Efficient synchronous step-down architecture
- Integrated high-side and low-side power MOSFETs
- High 2MHz switching frequency
- Pulse-Frequency Modulation for improved light-load efficiency
Resources
- _3d_glb:
- https://7semi.com/content/3d-files/10552.glb
- Category of product:
- Synchronous Buck converters
- Operating Temperature:
- -40 to +85 °C
- Operating input Voltage:
- 15V to 40V DC
- Output voltage:
- Fixed 12V DC
- Output current:
- 600mA
- Switching frequncy:
- 2MHz
- Dimension:
- 16mm x 10mm x 2.97mm
