7Semi ESP32-DEVKIT-E ESP32 Wifi BLE Development Board

7Semi
SKU
DC-10113

Provides a programmable Wi-Fi and Bluetooth platform for embedded and IoT applications.

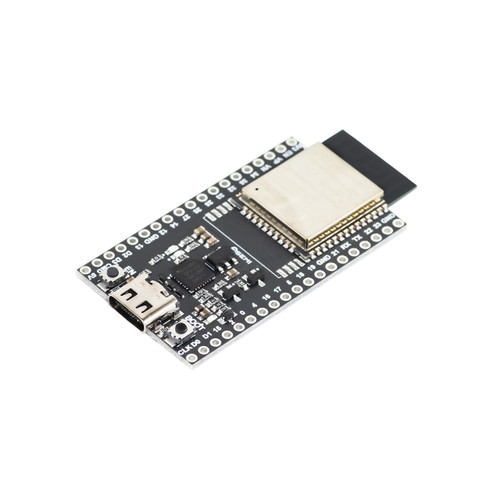

ESP32-DEVKIT-E Development Board featuring WiFi and BLE capabilities, a versatile module for IoT and wireless communication projects.

Select a photo to enlarge it.

50mm x 28mm x 5.17mm

Write a Review
$7.02
75 in stock

Shipped in 24 Hours from Mumbai Warehouse

Adding to cart… The item has been added

About this product

The 7Semi ESP32-DEVKIT-E is a development board featuring the ESP32-WROOM-32E module, which integrates Wi-Fi and Bluetooth capabilities. It includes 4MB of flash memory and a PCB antenna for wireless connectivity. The board provides multiple GPIOs for versatile interfacing and is equipped with a CP2102 USB-to-UART bridge for seamless programming and debugging.

Key Features
  • Dual-Core Processor: Features a 32-bit Xtensa LX6 dual-core processor operating at up to 240 MHz for embedded and IoT applications.
  • WiFi and Bluetooth: Integrate your projects seamlessly into wireless networks and connect with Bluetooth-enabled devices.
  • Extensive I/O: Experiment with a wide range of sensors, actuators, displays, and other peripherals using the readily available pin headers.
  • Breadboard-Friendly Design: Effortless prototyping thanks to conveniently spaced pin headers that fit standard breadboards.
  • Flexible Power Options: Supports 5 V power input through USB Type-C and regulated 3.3 V operation for embedded applications.
  • CP2102 USB-TTL Adapter: Program and debug your code with ease using the built-in adapter.
  • Compact and Cost-Effective: Enjoy the space-saving design and budget-friendly price of this development board.

Includes

  • 1 × ESP32-WROOM-32E Development Board
  • 2 × 2.54 mm Pin Header
Resources

ESP32-WROOM-32E Datasheet

DXF File

Step File

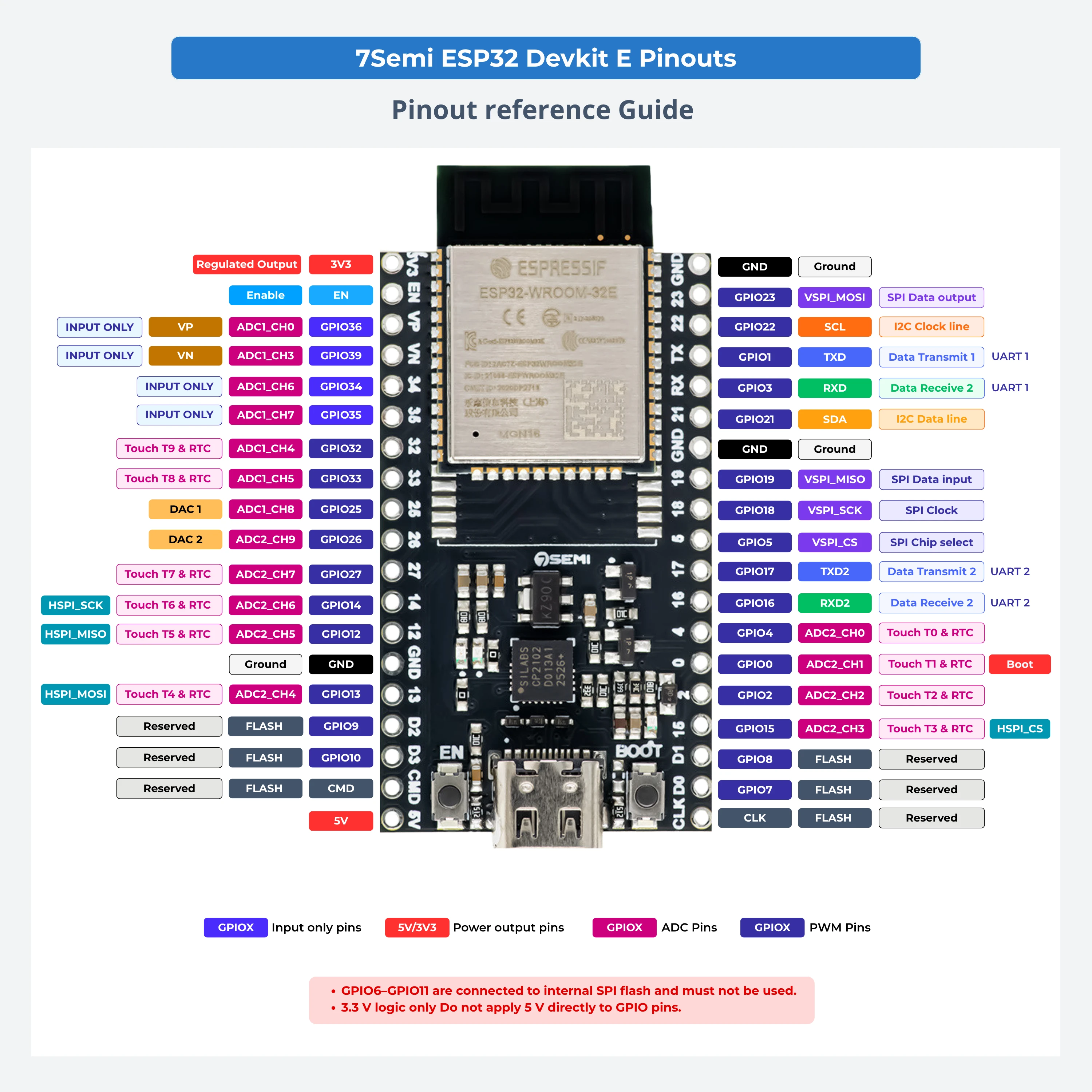

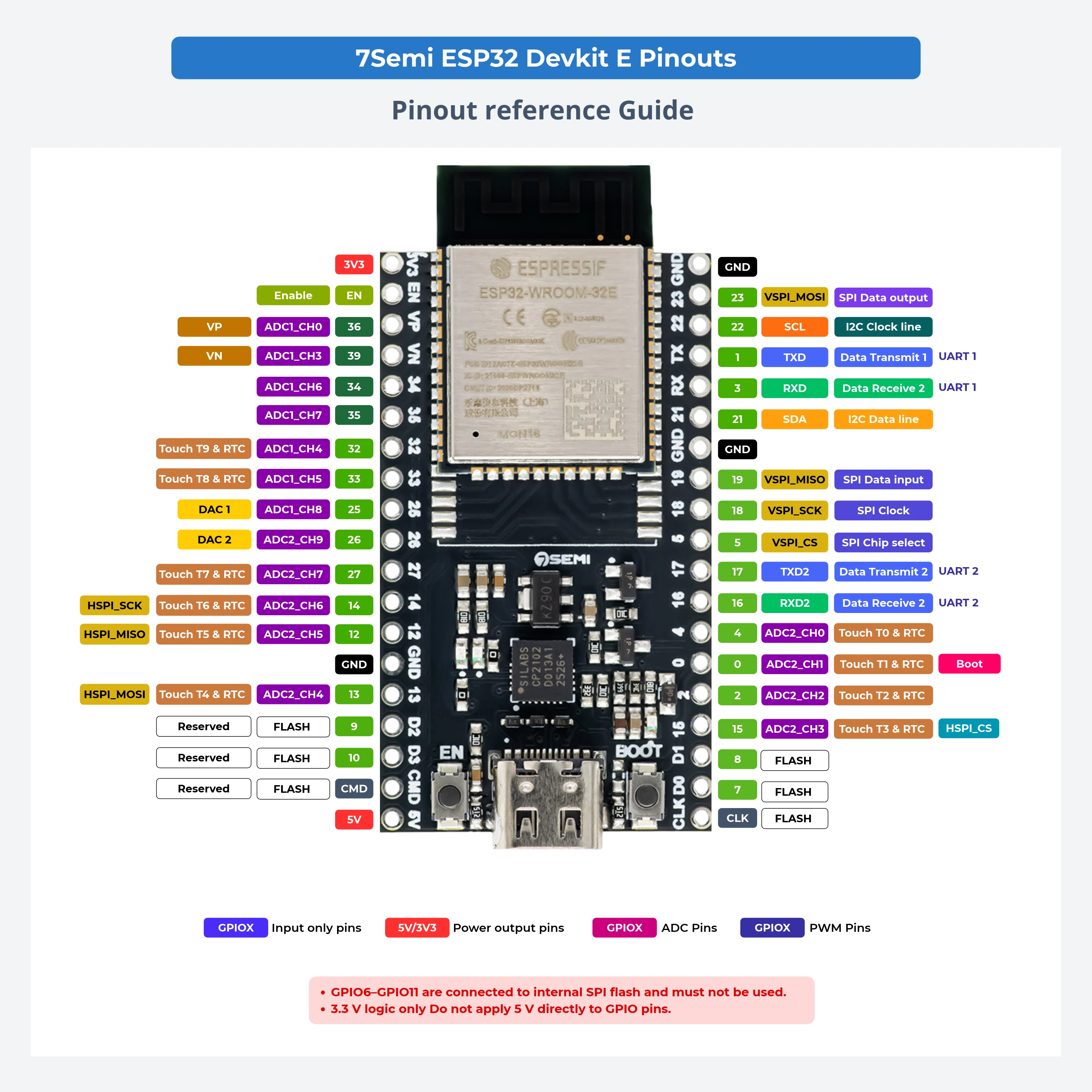

ESP32 Devkit Pinouts
