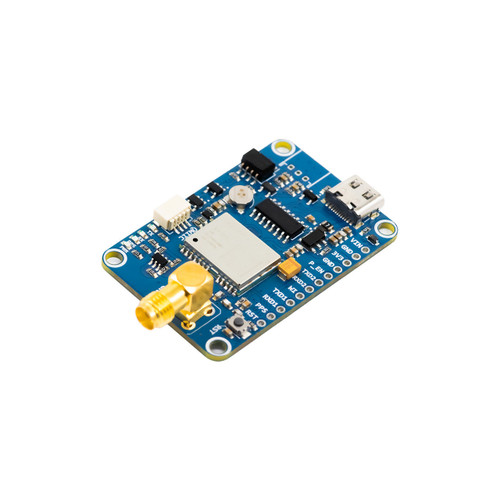

The 7Semi LC29HDA Dual-Band Multi-GNSS RTK Board is a high-precision positioning solution based on the Quectel LC29HDA GNSS module. It supports multiple satellite constellations, including GPS, Galileo, GLONASS, BeiDou, QZSS, using dual-band GNSS reception for reliable positioning.
With RTK positioning, the board provides horizontal accuracy down to 1 cm + 1 ppm under specified conditions, making it suitable for applications that require precise location data. It supports NMEA 0183 and RTCM 3.x protocols for standard GNSS data and RTK correction information.
The board provides UART and I²C interfaces, along with a Qwiic-compatible connector for easy integration with microcontrollers and embedded systems. Its compact design makes it suitable for robotics, surveying, precision agriculture, autonomous systems, mapping, and other high-accuracy positioning applications.
Key Features
- Centimeter-Level RTK Positioning: Provides horizontal RTK accuracy down to 1 cm + 1 ppm under specified conditions.
- Dual-Band GNSS Reception: Supports L1 and L5-band signals for improved positioning performance.
- Multi-Constellation Support: Supports GPS, Galileo, GLONASS, BeiDou & QZSS satellite systems.
- Fast RTK Convergence: RTK convergence time of less than 10 seconds under specified conditions.
- High GNSS Sensitivity: Tracking sensitivity down to −165 dBm for reliable satellite signal reception.
- RTK Correction Support: Supports RTCM 3.x correction data for high-precision RTK applications.
- Standard GNSS Output: Supports NMEA 0183 messages for easy integration with GNSS applications.
- UART & I²C Interfaces: Provides flexible communication options for microcontrollers and embedded systems.
- Qwiic-Compatible Interface: Enables convenient I²C connection with compatible development boards
- Wide Operating Temperature: Designed for operation from −40°C to +85°C at the GNSS module level.
- Compact Breakout Design: Suitable for robotics, precision agriculture, surveying, mapping, autonomous systems, and high-accuracy navigation.
Item included
1 × 7Semi LC29HDA Dual-Band Multi-GNSS RTK Board
2.54mm pitch pins headder strip
Note:
- Qwiic cable is not included with this product must be purchased separately.
- GNSS antenna is not included with this product must be purchased separately.
Resources
- _3d_glb:
- https://7semi.com/content/3d-files/10507_2.glb
- Category:
- GNSS RTK Module
- Communication interface:
- UART , I2C
- Supply voltage range:
- 4.2V to 5.5V
- Connectors:
- 2.54MM Standard connectors & JST/Qwiic support
- Operational temperature:
- -40~85℃
- GNSS Constellations:
- GPS, BDS, GLONASS, Galileo, QZSS
- SBAS:
- WAAS, EGNOS, MSAS and GAGAN
- GNSS Frequency Band:
- L1 & L5
- RTK Convergence time:
- 10S
- Protocol supported:
- NMEA 0183/RTCM 3.x
- Positioning accuracy (CEP):
- Autonomous: 1 m | RTK: 1 cm + 1 ppm
- RTK Support:
- RTK Rover
- Board Dimensions:
- 58mm x 33mm x 2.5 mm
