Connects multiple Grove I2C modules to a Qwiic input for modular prototyping.
Select a photo to enlarge it.

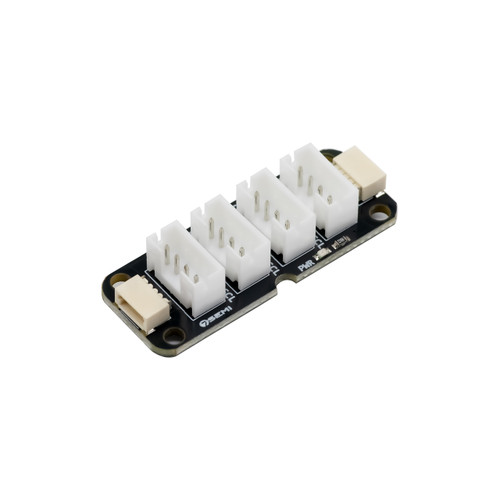

L= 40mm W=15mm H=9.55mm
Ships within 24 Hours
The 7Semi Qwiic – Grove I2C Hub is a compact and convenient expansion board designed to simplify the connection of multiple I2C devices to a single microcontroller or development platform. By providing one Qwiic input connector and multiple Grove-compatible I2C output ports, the hub enables rapid prototyping and modular system development without the need for complex wiring or custom PCB designs. It is an ideal accessory for sensor networks, IoT devices, robotics projects, educational kits, and embedded development platforms.
The hub operates as a passive I2C signal distribution board, routing the SDA, SCL, power, and ground connections from a single host controller to multiple connected peripherals. This allows users to connect several I2C sensors, displays, environmental monitoring modules, motion sensors, and communication devices while maintaining a clean and organized wiring layout. The standardized connector ecosystem reduces development time and helps eliminate wiring errors during prototyping.
Compatible with Arduino, ESP32, STM32, Raspberry Pi, RP2040, micro:bit, and other I2C-capable systems, the 7Semi Qwiic – Grove I2C Hub is perfect for rapidly expanding sensor connectivity in embedded applications. Whether you're building a weather station, smart home controller, industrial monitoring system, robotics platform, or educational electronics project, this hub provides a reliable and user-friendly method of distributing I2C communication signals. The board is designed for reliable operation from -40°C to +80°C
Features
• Simple 1-to-5 I2C expansion hub design
• Supports multiple I2C devices on a single bus
• Compatible with Qwiic and Grove ecosystems
• Plug-and-play operation with no configuration required
• Routes SDA, SCL, VCC, and GND signals to all connectors
• Reduces wiring complexity in I2C projects
• Ideal for sensor expansion and prototyping
• Compact and lightweight PCB design
• No software libraries required
• Supports Arduino, ESP32, STM32, Raspberry Pi, RP2040 and micro:bit
• Enables quick connection of multiple sensors and peripherals
• Suitable for educational and professional development projects
• Helps maintain organized cable management
• Reliable signal distribution for I2C communication
• Easy integration into modular electronics systems
Package Includes
1 × 7Semi Qwiic – Grove I2C Hub
