High-accuracy SHT45 digital temperature and humidity probe with ±0.1°C / ±1.0% RH accuracy, fixed 0x44 I²C address, ventilated metal housing, and 1 m cable.
Select a photo to enlarge it.
6 mm × 50 mm
The SHT45 Sensor Probe is a digital temperature and relative humidity sensor designed for environmental monitoring and embedded applications. It provides typical accuracy of ±0.1°C for temperature and ±1.0% RH for relative humidity. The probe communicates through an I²C interface with a fixed address of 0x44, allowing straightforward integration with microcontrollers and data acquisition systems.
The sensor supports a 0–100% RH measurement range and operates over a temperature range of −10°C to +70°C. An integrated heater provides multiple heating levels for applications where condensation or high humidity may affect measurements.

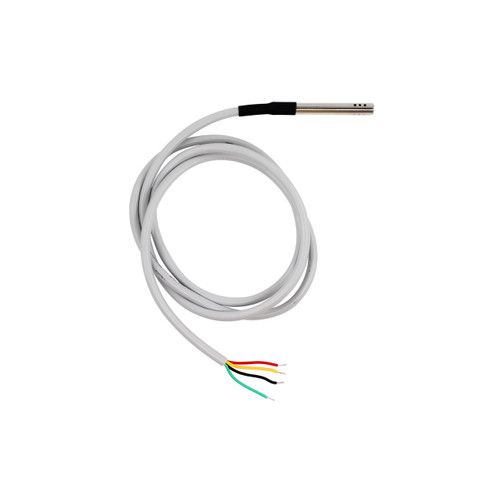

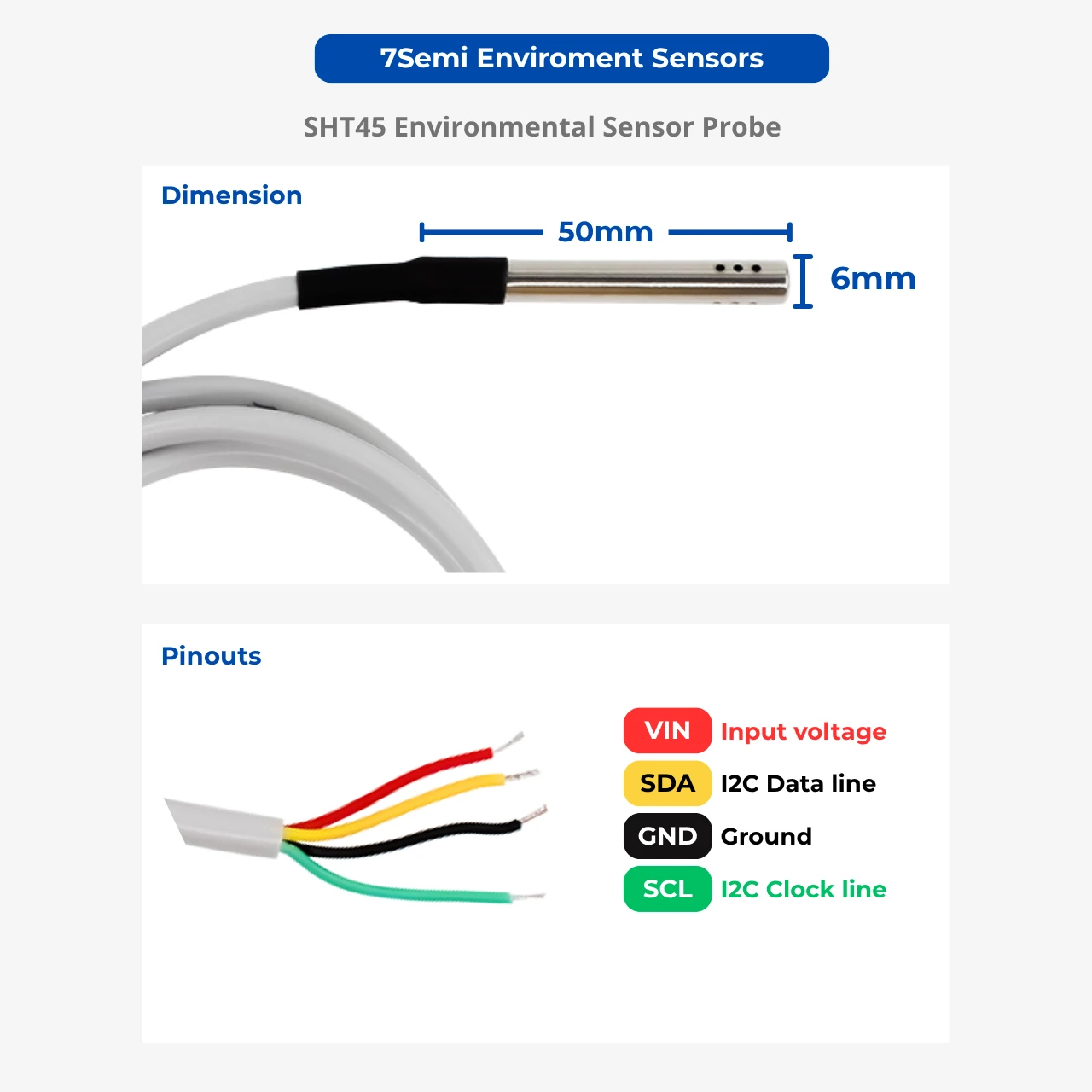

The stainless-steel probe housing features ventilation holes that allow ambient air to reach the sensing element while providing mechanical protection. Its compact 6 mm × 50 mm probe construction and 1-meter PVC cable allow flexible remote installation in space-constrained and monitoring applications. An optional protective membrane is also available for applications requiring additional protection from dust and environmental contaminants.
Key Features
High-Accuracy Temperature Measurement: Provides ±0.1°C typical temperature accuracy for precise environmental monitoring.
High-Accuracy Humidity Measurement: Delivers ±1.0% RH typical accuracy across a wide 0–100% RH measurement range.

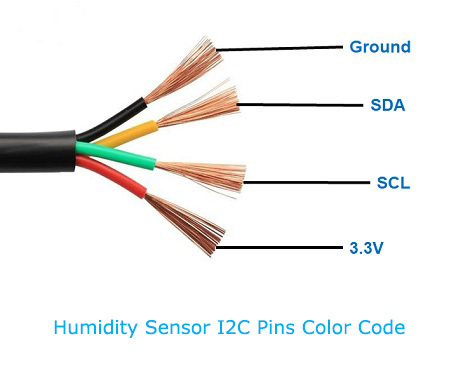

Digital I²C Interface: Provides reliable digital temperature and humidity data for straightforward integration with microcontrollers, data loggers, and monitoring systems.
Fixed I²C Address: Uses a fixed 0x44 I²C address for simple and consistent communication with the host controller.
Fast I²C Communication: Supports I²C communication speeds up to 1 MHz for efficient sensor data acquisition.
Wide Supply Voltage Range: Operates from 1.08 V to 3.6 V DC, making it suitable for low-voltage embedded systems.
Integrated Heater: Features an internal heater with multiple heating levels to support operation in high-humidity and condensation-prone environments.
Ventilated Probe Housing: Features ventilation holes that allow ambient air to reach the sensing element for effective temperature and humidity measurement.
Optional Breathable Protective Membrane: Available with an optional breathable membrane to help protect the sensing element from dust, water droplets, and environmental contaminants while maintaining airflow.
Remote Probe Design: Features a 1-meter cable for flexible sensor placement away from the host electronics.
Note: Customization options are available for higher operating temperatures or a sensor variant with a protective membrane. For customization requirements, please contact us at info@7semi.com.
