Provides a breadboard-friendly microcontroller platform for embedded prototyping and learning.
Select a photo to enlarge it.
53mm × 18mm × 4.80 mm
Shipped in 24 Hours from Mumbai Warehouse

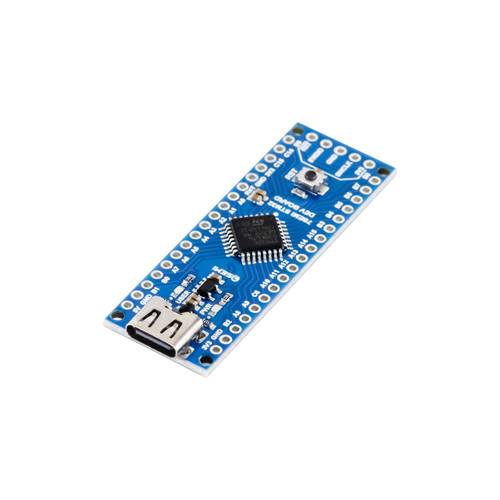

The 7Semi STM32G030K8T6 Development Board is a compact and powerful board designed for embedded development, prototyping, and learning. It is based on the STM32 microcontroller and offers smooth performance for real-time applications. The board comes in a breadboard-friendly layout, making it easy to use in quick projects without extra setup With its simple design and flexible connections, it is suitable for IoT projects, automation, and general embedded applications.
Features:
• STM32G030K8T6 MCU: Based on ARM Cortex-M0+ core.
• 64MHz Speed: Good performance for embedded applications.
• Memory: 64KB Flash and 8KB SRAM.
• SWD Debug Support: Simple programming and debugging access.
• Breadboard Compatible: Quick and easy prototyping.
• Onboard LEDs: Power and user LED for testing.
• Buttons: Reset and user button for control and testing.
• Flexible I/O: Supports I2C, SPI, USART, PWM, and ADC.
USB-C Power Input: Onboard USB Type-C connector is provided for board power supply only and does not support USB data communication or programming.
1x STM32G030K8T6 Development Board
Accessories Sold Separately: USB cable and 7Semi ST-Link programmer. Choose the programmer connector that suits your setup: PR-10111 (USB Type-A) or PR-10114 (USB Type-C
