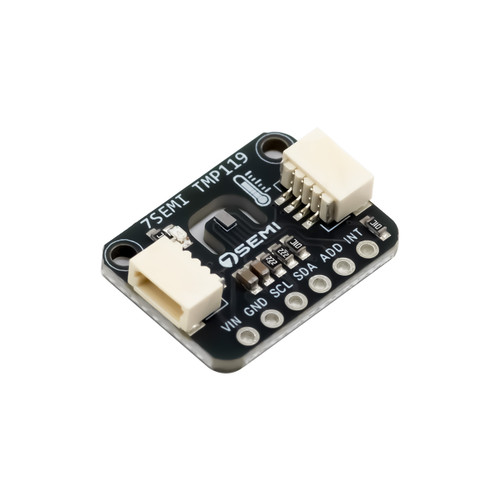

The 7Semi TMP119 High-Accuracy Digital Temperature Sensor Module is a precision temperature sensing solution designed for applications that demand exceptional accuracy, reliability, and low power consumption. Featuring the TMP119 digital temperature sensor, this module delivers highly accurate temperature measurements with up to ±0.08°C accuracy, making it suitable for industrial monitoring, scientific instrumentation, environmental sensing, medical equipment, and advanced IoT systems.
The module supports standard I2C communication and includes dual Qwiic-compatible connectors, enabling quick plug-and-play integration without soldering. A configurable I2C address allows multiple sensors to operate on the same bus, while the onboard interrupt pin enables temperature threshold monitoring and event-based applications.
With its compact design, 3.3V operation, and high-resolution digital output, the 7Semi TMP119 module provides a professional-grade temperature sensing solution for both prototyping and production environments.
Features
- High-accuracy temperature measurement up to ±0.08°C
- Wide temperature measurement range from -45°C to +70°C
- High-resolution 16-bit temperature output
- Standard I2C communication interface
- Dual Qwiic-compatible connectors for plug-and-play integration
- Operates from a 3.3V power supply
- Configurable I2C address selection
- Supports multiple sensors on the same I2C bus
- Dedicated interrupt output for temperature alerts
- Ultra-low power consumption
- Integrated EEPROM for configuration storage
- Programmable temperature threshold alerts
- Fast and reliable temperature conversion
- Excellent long-term stability and repeatability
- Compatible with Arduino, ESP32, STM32, Raspberry Pi, RP2040, and other microcontrollers
- Compact breakout board for embedded and space-constrained designs
Package Includes
- 1 × 7Semi TMP119 High-Accuracy Digital Temperature Sensor Module
- 1 × Header Pin Strip
Resources
- _3d_glb:
- https://7semi.com/content/3d-files/10524.glb
- Category:
- Digital temprature sensor
- Operational temprature range:
- -40C TO 80C
- Accuracy:
- + - 0.08C
- Communication interface:
- I2C
- Operational Voltage:
- 3.3V
- Dimension:
- L=12mm W=7mm H=4.73mm
