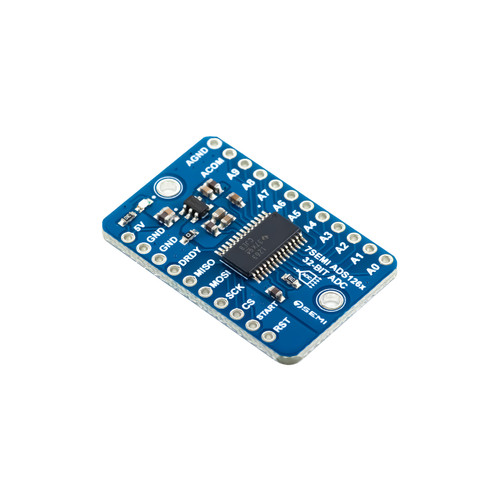

The 7Semi ADS1263 ADC Module is a high-precision board designed for very accurate measurement of sensors like load cells, thermocouples, and RTDs. It converts small analog signals into highly accurate digital data, making it ideal for industrial and scientific use. The module includes a programmable gain and internal reference for stable performance. It also has an extra 24-bit ADC for background measurements, allowing more flexibility. With low noise and strong interference rejection, it ensures reliable readings even in tough environments.
Features:
• 32-Bit ADC: Ultra-high resolution for very precise measurements.
• Auxiliary 24-Bit ADC: Supports background measurements at the same time.
• Wide Data Rate: 2.5 SPS to 38.4 kSPS for flexible use.
• Programmable Gain: Adjustable gain from 1 to 32.
• Multiple Inputs: Supports various sensor connections.
• High Accuracy: Very low noise and stable performance.
• Built-in Reference: Internal voltage reference for consistent results.
• Noise Rejection: Reduces 50Hz/60Hz interference.
• Sensor Support: Works with load cells, RTDs, thermocouples, and strain gauges.
• Fault Monitoring: Built-in protection and system checking.
• Extra GPIOs: Additional pins for control and monitoring.
- CHIP USED:
- ADS1263
- CATEGORY:
- ADC
- SUPPLY VOLTAGE:
- 3.3V
- OPERATING TEMPRATURE:
- -40°C TO 80°C
- COMMUNICATION METHOD:
- SPI
- SAMPLING RATE (SPS):
- 40KSPS
- RESOLUTION:
- 40BIT
- DIMENSION:
- L=32mm W=21mm H=2.75mm
