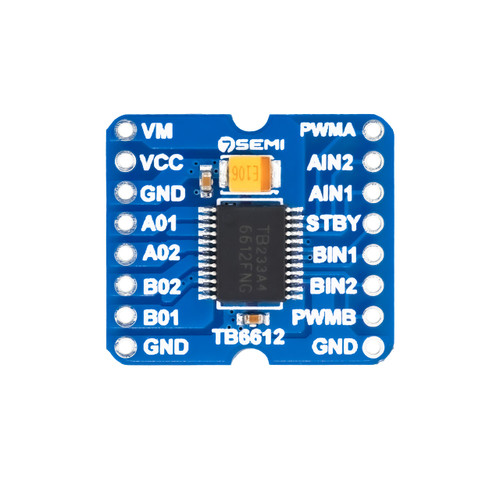

The 7Semi Dual DC Motor Driver Breakout independently controls two brushed DC motors with forward, reverse, brake, stop, and PWM speed control. It supports up to 1.2 A continuous current per channel under suitable operating conditions, making it ideal for robotics, automation, and prototyping.
Features
- Dual Motor Control: Controls two brushed DC motors independently from a single module.
- 1.2 A Output per Channel: Supports up to 1.2 A continuous current per channel under suitable operating conditions.
- Multiple Control Functions: Supports forward, reverse, brake, and stop operations for each motor.
- PWM Speed Control: Allows smooth adjustment of each motor’s speed using PWM input signals.
- Low-Power Standby Mode: Reduces power consumption when the motor driver is not operating.

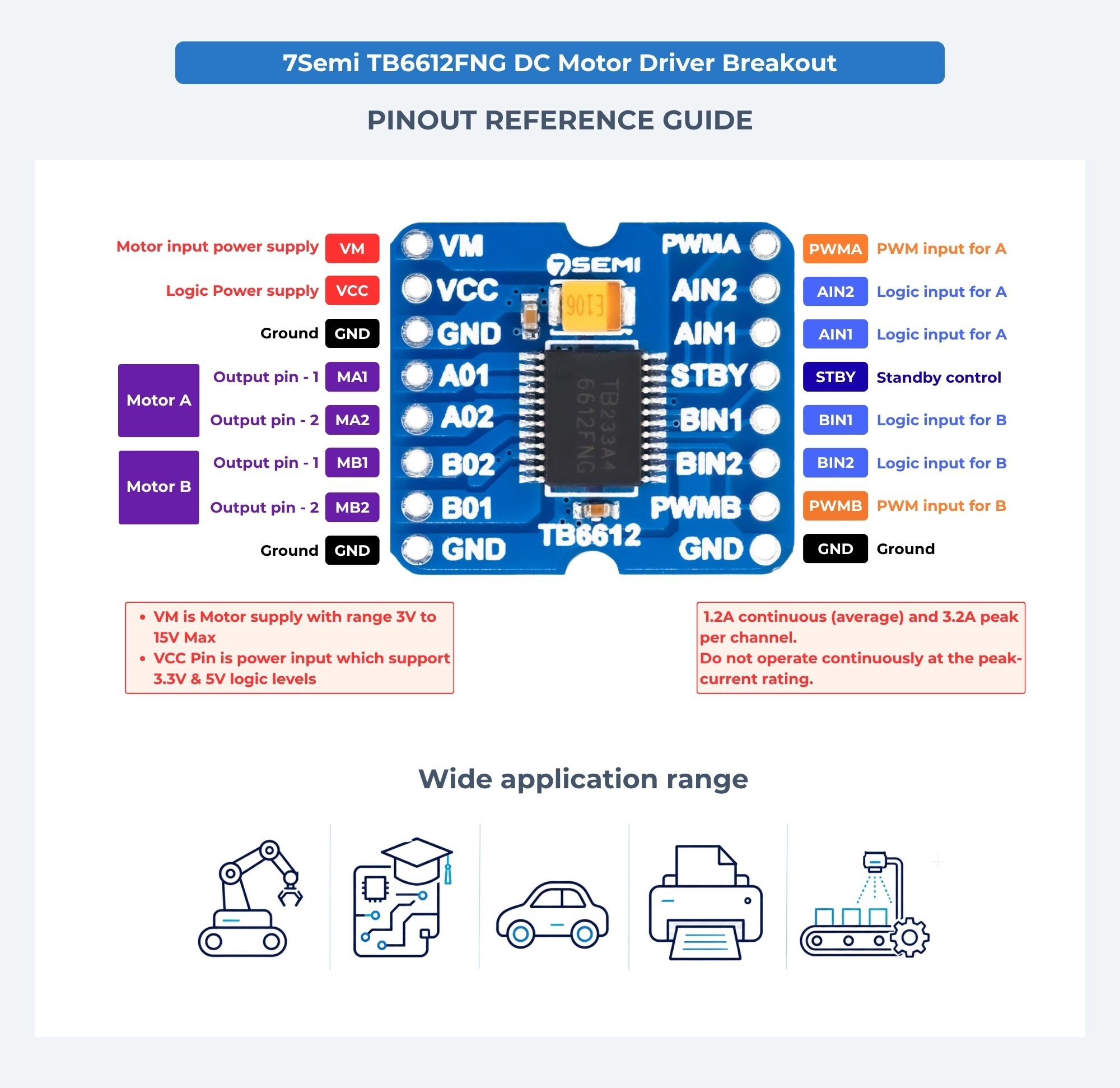

- Easy Integration: Features a simple pin interface for connection with microcontrollers and development boards.
- _3d_glb:
- https://7semi.com/content/3d-files/dfx_step/10280.glb
- Category of product:
- Motor driver
- No of Channel:
- 2 independent
- Operational voltage:
- VM-: 5V TO 12V , VCC -:5V
- Continuous Output Current:
- 1.2A per Channel
- Peak Output current:
- 3.6A per Channel
- Control method:
- PWM
- Logic level supported:
- 3.3V & 5V
- Dimension In mm:
- 24mm x 21mm x 3.60mm
- Application:
- Hobby diy robotics , Toys & devlopment platform
