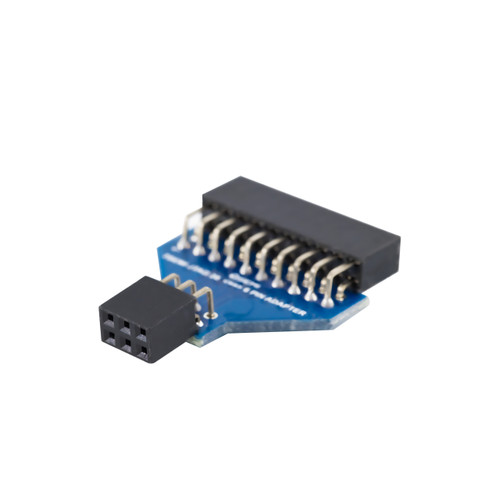

Need to connect a standard ARM JTAG programmer to a compact 6-pin target header? The 7Semi ARM-JTAG-20-6 Plug-in Adapter provides a simple and reliable bridge between the widely used 20-pin ARM JTAG connector and a space-saving 6-pin interface commonly found on embedded development boards. Whether you're debugging firmware, programming microcontrollers, or performing production testing, this adapter helps eliminate connector compatibility issues and keeps your development workflow running smoothly.
Designed for engineers, students, and embedded developers, the adapter follows the standard ARM JTAG/SWD pin mapping and allows seamless integration with a wide range of debugging tools. Instead of dedicating valuable PCB space to a large 20-pin header, designers can use a compact 6-pin connector on the target board while maintaining compatibility with professional programming and debugging hardware.
The adapter works with many popular ARM development tools including Segger J-Link, ARM-USB-OCD, ARM-USB-TINY, ARM-USB-TINY-H, and other compatible JTAG and SWD programmers. Its compact plug-in design makes it ideal for development labs, educational projects, production environments, and embedded system debugging where reliability and convenience are essential.
Features
• Converts a standard 20-pin ARM JTAG connector into a compact 6-pin programming and debugging interface.
• Compatible with popular debugging tools including Segger J-Link, ARM-USB-OCD, ARM-USB-TINY, and other JTAG/SWD programmers.
• Follows the standard ARM JTAG/SWD pin layout for reliable programming and debugging operations.
• Helps reduce PCB size by allowing designers to use compact 6-pin headers instead of bulky 20-pin connectors.
• Plug-and-play design requires no configuration or additional circuitry for operation.
• Ideal for embedded development, firmware debugging, prototype testing, production programming, and educational projects.
