BMM350 3-Axis Magnetometer Sensor Breakout for AR / VR

Resources

BMM350 Datasheet

7Semi BMM350 Triple Axis Magnetometer Sensor Breakout for AR and VR – High Precision Geomagnetic Sensing with Low Power Operation

The 7Semi BMM350 Triple Axis Magnetometer Sensor Breakout is a precision geomagnetic sensor designed for advanced spatial orientation, motion tracking, and navigation tasks. Built on Bosch’s next-generation TMR (Tunnel Magnetoresistance) technology, it delivers ultra-low noise, high accuracy, and long-term stability for applications requiring exact directional data. Its Field Shock Recovery mechanism ensures consistent performance even in environments with strong or fluctuating magnetic fields, making it ideal for AR, VR, and robotics systems.

With support for both I2C and I3C interfaces, the BMM350 simplifies system integration and data transfer in compact designs. It maintains compatibility with the earlier BMM150 series, offering improved precision, higher sampling rates, and greater energy efficiency. This breakout board is a perfect fit for battery-powered devices, head tracking systems, and sensor fusion platforms requiring reliable 3-axis magnetic field data.

Applications

Features

• Advanced TMR Technology: Offers superior magnetic accuracy and ultra-low noise levels.

• Field Shock Recovery: Ensures stable readings under strong magnetic disturbances.

• Low Power Operation: Consumes only 200µA at 100Hz, ideal for portable electronics.

• High Sampling Rate: Supports up to 400Hz data rate for smooth, real-time tracking.

• Flexible Communication: Dual I2C/I3C interfaces for fast and efficient data transfer.

• Wide Measurement Range: ±2000µT detection capability across all axes.

• Factory Calibrated: Pre-calibrated for accurate plug-and-play operation.

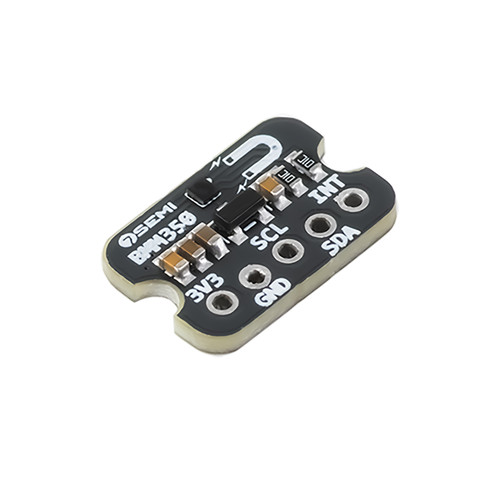

• Compact PCB Design: Labeled header pins (3V3, GND, SDA, SCL, INT) for easy integration.

• Interrupt Pin Support: Enables event-based magnetic sensing in embedded systems.

Applications

• AR and VR head tracking systems

• Geomagnetic navigation and positioning

• Robotics orientation and motion control

• High-end gaming and gesture sensing

• Wearable devices and motion controllers

• Sensor fusion systems in embedded platforms

Frequently Asked Questions

Q: Can this module be used with Arduino?
A: Yes, if your Arduino board supports 3.3V I2C (e.g., ESP32 or via level shifting).

Q: What's the default I2C address of the BMM350 module?
A: 0x10 (7-bit format).

Q: Does it have onboard voltage regulation?
A: No, it operates only at 3.3V logic and power.

Q: What makes the BMM350 better than BMM150?
A: BMM350 offers significantly lower noise, higher precision, and better long-term stability due to its advanced compensation circuitry and calibration.
