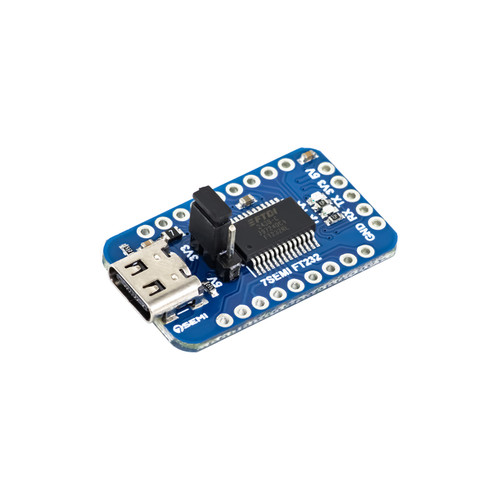

7Semi FT232 USB-C to TTL UART Converter with Hardware Flow Control

The 7Semi FT232 UART Module provides a simple USB Type C -to-UART connection for communicating between a computer and microcontrollers, development boards, embedded controllers, and other serial devices. It converts USB communication into UART signals, allowing users to send commands, read serial data, configure hardware, and troubleshoot communication using standard serial-terminal or development software. The FT232R handles the USB protocol internally, so no USB-specific firmware is required on the connected target device.

The module is suitable for development, programming support, debugging, production testing, device configuration, and general serial communication. Its UART interface supports different logic-voltage systems, while the integrated USB interface, clock, EEPROM, and regulator help keep the design compact and easy to use.

Key Features

• Supports RTS/CTS hardware flow control for reliable UART communication.
• Supports UART communication speeds up to 3 Mbaud for fast serial data transfer.
• Works as a Virtual COM Port, allowing it to be used with commonly available serial-terminal and development software.
• Supports 1.8 V to 5 V class UART logic interfaces, making it suitable for a wide range of embedded hardware.
• Includes configurable CBUS functions that can be used for status indication, control signals, LED activity, and other interface functions.
• The integrated 3.3 V regulator can supply up to 50 mA to external circuitry.

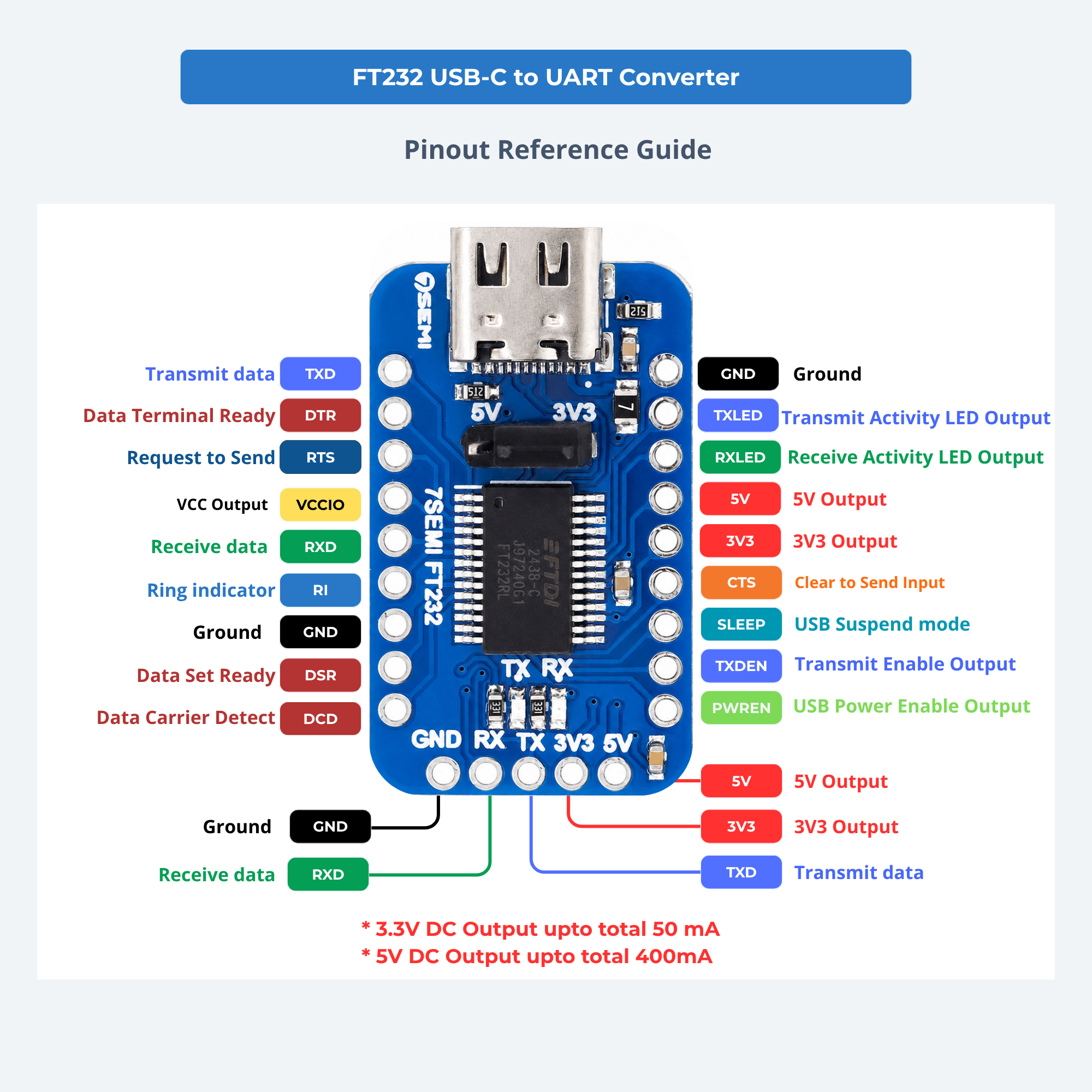

• Supports standard UART control and modem signals including RTS, CTS, DTR, DSR, DCD, and RI.
