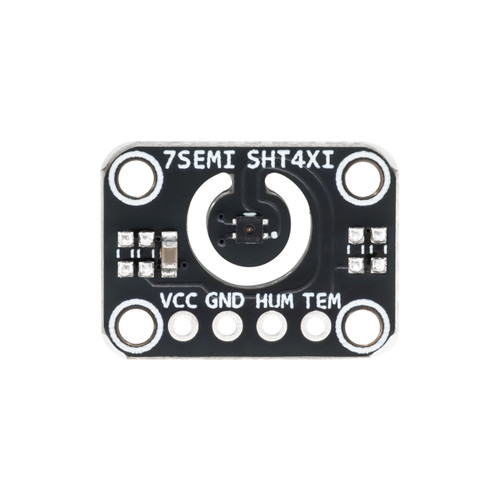

The 7SEMI SHT4XI is a compact breakout board using Sensirion’s SHT40I-Analog sensor. It outputs two analog channels (HUM and TEM) for direct ADC input, providing an easy RH/T measurement solution for embedded systems.
Key Features
-
Dual analog outputs for HUM and TEM
-
5V supply compatible
-
High accuracy: ±2.5%RH, ±0.3°C
-
Compact PCB design
-

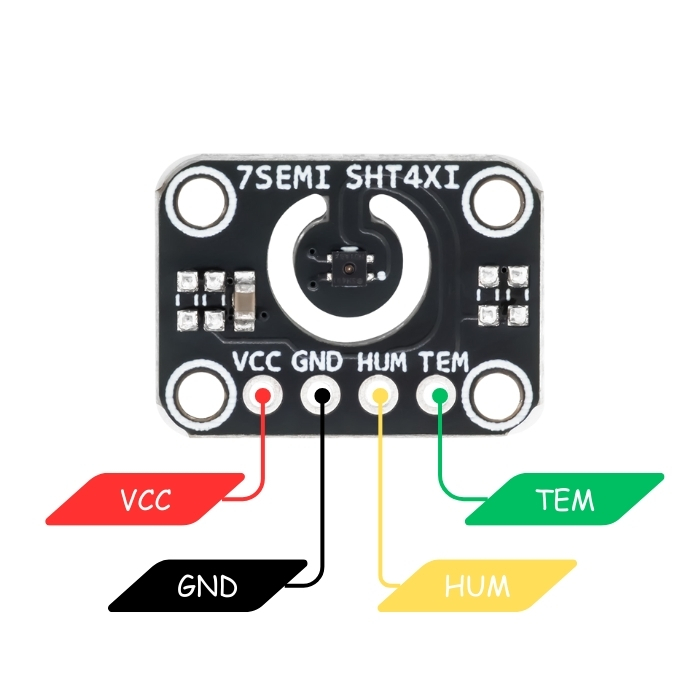

4-pin header: VCC, GND, HUM, TEM
-
Works with Arduino, ESP32, STM32, Raspberry Pi (with ADC)
-
Ideal for panels, enclosures, IoT nodes
Resources
- VOLTAGE REQUIRED (V):
- 3.3V
- CATEGORY:
- HUMIDITY + TEMPRATURE SENSOR
- RECOMENDED TEMPRATURE RANGE:
- -40 TO +125
- ACCURACY:
- 0.1
- HUMIDITY RANGE:
- 0 TO 100%RH
- HUMIDITY ACCURACY:
- 1%
- DIMENSION IN MM:
- 17 X 13 X 2.5
