The 7SEMI SHT40I Analog Probe is an industrial-grade humidity and temperature sensing probe based on Sensirion’s SHT40I-Analog sensor. It provides separate 0–5V analog outputs for HUM and TEM, making it ideal for PLCs, data loggers, Arduino/ESP32/STM32 ADC inputs, and HVAC installations.
Key Features
-
Sensirion SHT40I-Analog sensor
-
5V supply input
-
Dual analog outputs: HUM (humidity), TEM (temperature)
-
Stainless-steel probe with sintered filter
-
High accuracy: ±2.5%RH, ±0.3°C
-

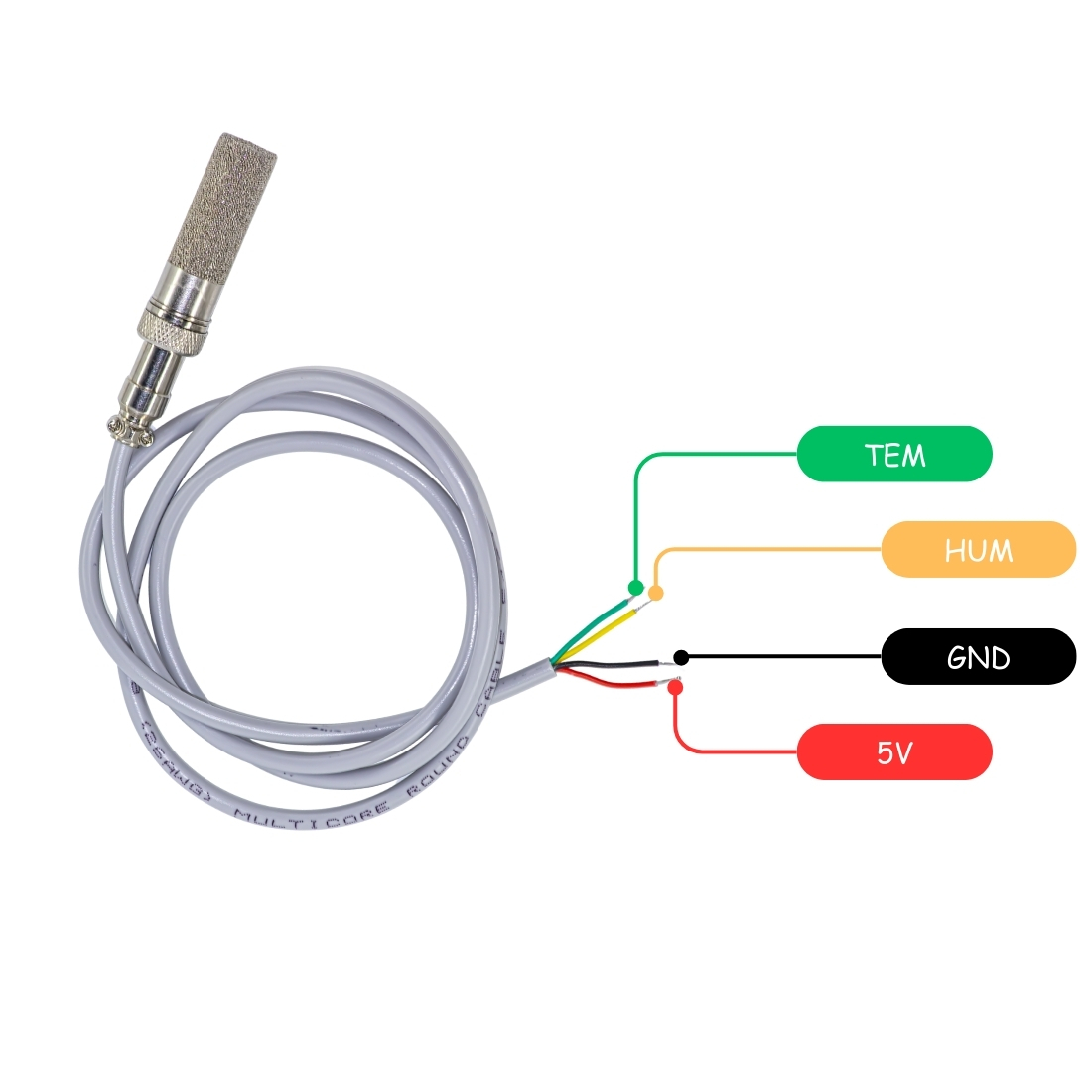

4-core cable: Red (5V), Black (GND), Yellow (HUM), Green (TEM)
-
Ideal for ducts, enclosures, weather stations, industrial control
-
Zero calibration required – factory calibrated
- Humidity Range:
- 0–100%RH
- Humidity accuracy:
- ±2.5%RH
- Temperature Range:
- –40°C to +70°C
- Temperature accuracy:
- ±0.3°C
- Output type:
- Analog 0–5V
- Supply voltage:
- 5V
- Typical current:
- ~520µA
- Dimension of probe:
- 1 Meter
