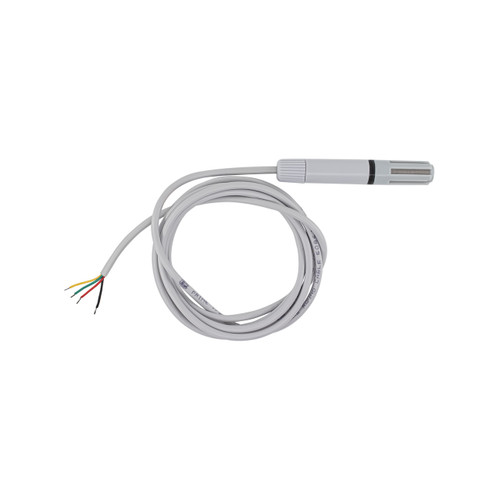

The 7Semi Industrial RS485 Temperature & Humidity Sensor Probe is an industrial-grade sensor engineered for precision and durability in demanding environments. Leveraging Modbus RTU over RS485, it delivers highly accurate readings with excellent long-term stability. Housed in a robust stainless steel probe with a breathable and dust-resistant sintered metal filter, it’s ideal for HVAC systems, building automation, climatology, and industrial monitoring.
This version includes a 2-meter, features a wide 9–36V DC input range, DIP switch-configurable Modbus address and baud rate, and onboard signal processing. Fully plug-and-play with SCADA, PLCs, HMIs, and Arduino/MCUs.
Key Features
-
RS485 Modbus RTU Output (Standard Protocol)
-
DIP switch for Modbus ID & Baud Rate Configuration
-
Easy 4-wire Connection: VCC, GND, RS485 A+, RS485 B−
-
Resources

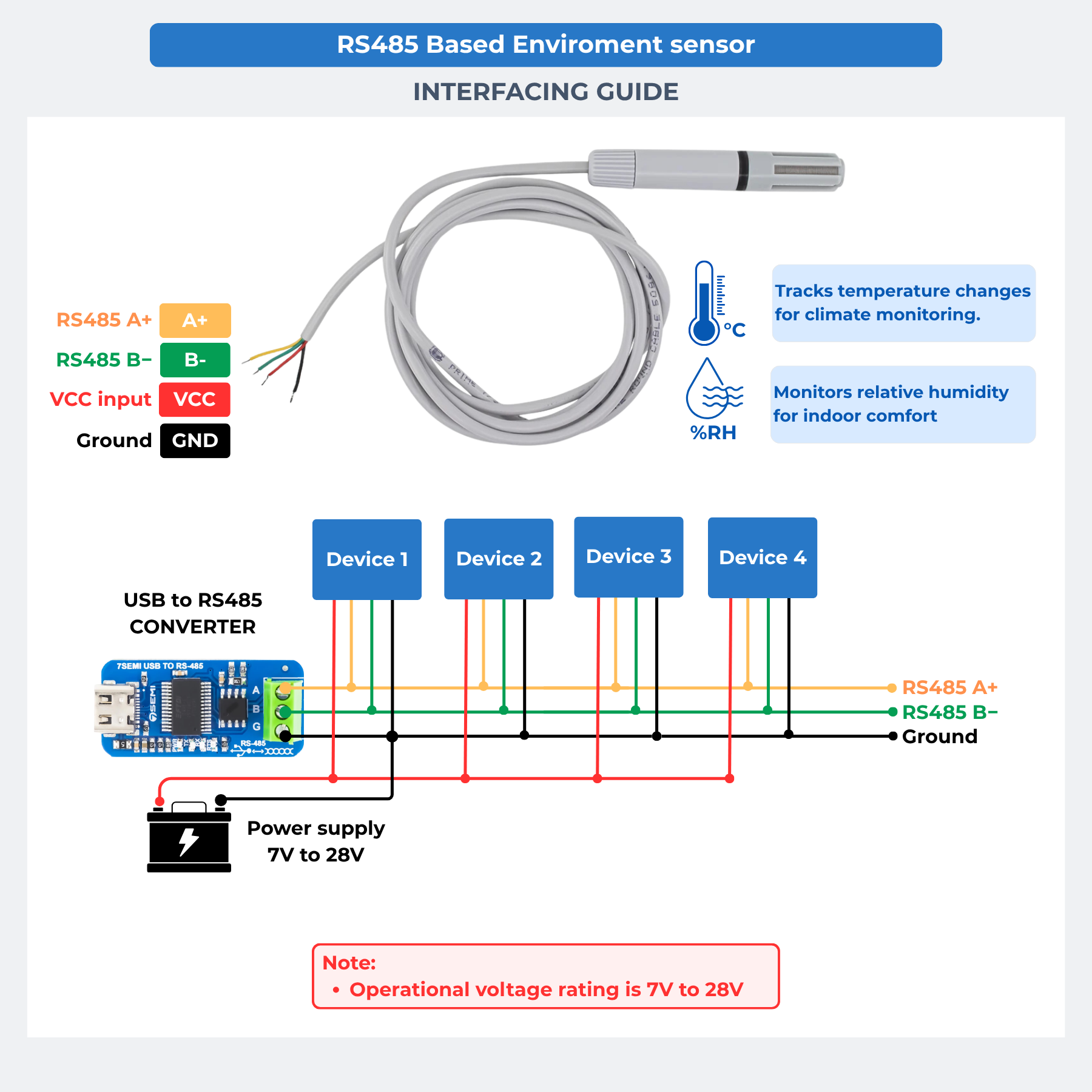

Wiring Guide
- Temperature Range:
- -40°C to +80°C
- Humidity Range:
- 0% to 100% RH
- Power Supply:
- 9–36V DC
- Output Interface:
- RS485 (Modbus RTU)
- Baud Rates:
- 9600 (default); configurable to 19200, 38400, 115200
- Probe Length:
- 150mm
- Probe Diameter:
- 15.7mm
- Cable Length:
- 2 meters
- Weight:
- 100g
- Protection:
- Breathable, dust-proof
