7Semi Anchor STM32 mini Development Board - STM32G030F6P6

7Semi
SKU
DV-10111

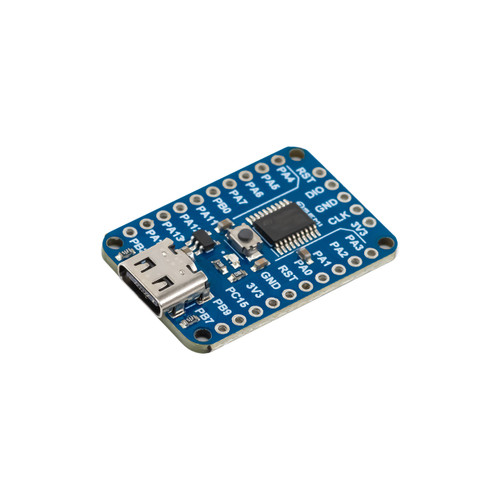

7Semi STM32G030F6P6 Anchor STM32 mini Development Board

Select a photo to enlarge it.

33mm × 22mm × 4.95 mm

Write a Review
$2.27
45 in stock

Shipped in 24 Hours from Mumbai Warehouse

Adding to cart… The item has been added

About this product



Overview

The 7Semi Anchor STM32 Mini Development Board is a compact embedded development platform based on the STM32G030F6P6 microcontroller, featuring a 32-bit ARM Cortex-M0+ processor running at up to 64 MHz. With 32 KB Flash memory and 8 KB SRAM, the board provides a practical platform for compact embedded control, sensor interfacing, automation, and prototyping applications.

The microcontroller supports multiple peripherals including USART, I²C, SPI, 12-bit ADC, hardware timers, PWM, DMA, RTC, and watchdog timers, allowing easy connection to sensors, displays, communication modules, actuators, and other external devices.

Designed for easy prototyping and space-constrained applications, the board provides accessible GPIO connections along with essential support circuitry for reliable operation. Its compact form factor makes it suitable for IoT nodes, industrial control, sensor systems, motor control, automation, educational projects, and general embedded development.

Key Features

  • ARM Cortex-M0+ MCU: Features the STM32G030F6P6 running at up to 64 MHz.

  • On-Chip Memory: Provides 32 KB Flash memory and 8 KB SRAM for embedded applications.

  • Multiple Communication Interfaces: Supports 2 × USART, 2 × I²C, and 2 × SPI for connecting external devices.

  • 12-Bit ADC: Supports analog sensor and signal measurement.

  • Timers & PWM: Provides hardware timers and PWM functionality for timing and control applications.

  • 5-Channel DMA: Enables efficient peripheral data transfer with reduced CPU involvement.

  • RTC & Watchdog Support: Provides timekeeping and improved system reliability.

  • Accessible GPIO Pins: Allows easy connection to sensors, displays, actuators, and communication modules.

  • Compact Mini Board Design: Suitable for breadboarding, prototyping, and space-constrained embedded applications.

Product Includes

  • 1 × 7Semi Anchor STM32 Mini Development Board – STM32G030F6P6

  • 2 × 2.54 mm Male Pin Header Strips

User Note

USB Connector: The onboard USB connector is for 5V power input only and does not support USB data communication or programming.
