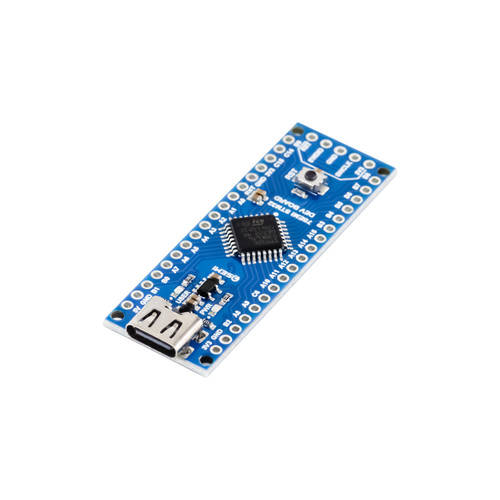

7Semi STM32G030K6T6 STM32 Development Board

The 7Semi STM32G030K6T6 Development Board is a compact and versatile embedded development platform built around the STM32G030K6T6 Arm Cortex-M0+ microcontroller. Operating at up to 64 MHz with 32 KB Flash and 8 KB SRAM, the board provides an efficient platform for developing embedded control, sensor interfacing, IoT, automation, motor control, data acquisition, and rapid prototyping applications.

The STM32G030K6T6 integrates a wide range of peripherals including a 12-bit ADC, PWM and general-purpose timers, RTC, DMA, 2× I²C, 2× SPI, and 2× USART, enabling easy connection to sensors, displays, communication modules, actuators, and other external devices. Its low-power operating modes also make it suitable for power-conscious embedded applications.

With its compact board design and accessible I/O connections, the development board provides a convenient platform for firmware development, testing, education, proof-of-concept development, and custom embedded-system prototyping using the STM32G0 microcontroller family.

Features

• 64 MHz Arm Cortex-M0+ MCU: Powered by the STM32G030K6T6 for efficient embedded control and real-time processing.
• 32 KB Flash & 8 KB SRAM: Provides integrated program and data memory for compact embedded applications.
• 12-bit ADC: Supports high-speed analog signal acquisition with hardware oversampling for sensor and measurement applications.
• Multiple Communication Interfaces: Integrates 2× I²C, 2× SPI, and 2× USART peripherals for interfacing with sensors, displays, communication modules, and other devices.
• Advanced Timer & PWM Support: Includes an advanced-control PWM timer and multiple general-purpose 16-bit timers for motor control, PWM generation, timing, and control applications.
• 5-Channel DMA Controller: Enables efficient peripheral data transfers with reduced CPU intervention.
• Calendar RTC: Integrated real-time clock supports calendar, alarm, and periodic wakeup functions.
• SWD Programming & Debugging: Supports firmware programming and debugging through the Serial Wire Debug (SWD) interface.
• USB-C Power Input: Onboard USB-C connector is provided for board power supply only and does not provide USB data communication or programming.
• Onboard LED & Reset Button: Provides convenient status indication, application testing, and manual system reset.
• Compact Development Platform: Suitable for embedded control, sensor interfacing, IoT, automation, motor control, and rapid prototyping applications.

Product Includes

• 1 × 7Semi STM32G030K6T6 Development Board

• 2.54 mm Pitch Male Header Pins

Accessories Sold Separately: USB cable and 7Semi ST-Link programmer. Choose the programmer connector that suits your setup: PR-10111 (USB Type-A) or PR-10114 (USB Type-C).
