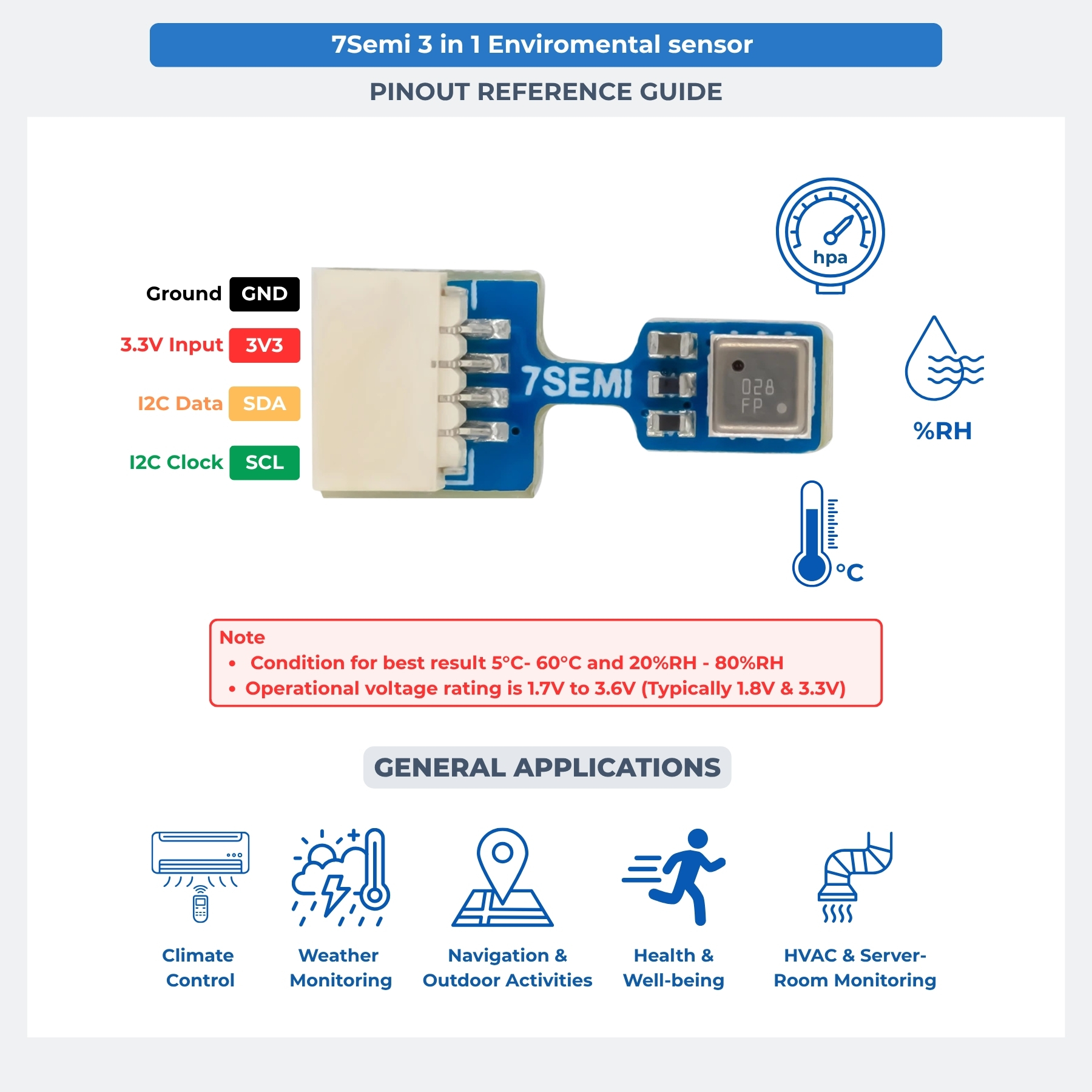

The 7Semi BME280 Sensor Module is a compact and powerful sensor used to measure temperature, humidity, and air pressure in one board. It gives accurate digital output and is very easy to use with microcontrollers using I2C interface. With its small size and Qwiic connector, connection becomes simple without messy wiring. This sensor is perfect for weather monitoring, smart home projects, and environmental sensing. It also works with low power, so it is good for battery-based projects.
Features:
• 3-in-1 Sensor: Measures temperature, humidity, and pressure together
• I2C Interface: Easy communication with microcontrollers
• Compact Design: Very small size, easy to fit in any project
• Low Power Consumption: Suitable for portable and battery devices
• Fast Response: Quickly reacts to environment changes
• Altitude Support: Can be used for altitude and weather calculation
Resources
- Category:
- Enviroment sensors
- Communication interface:
- I2C
- I2C address:
- 0x76
- Operational voltage:
- 1.8V to 3.6V
- integrated heater:
- Not available for this product
- Measures:
- Pressure, Humidity, Temprature
- Operational Temperature:
- -40C to 85C
- Temperature accuracy:
- 0.5C
- Operational Humidity range:
- 0 to 100%RH
- Humidity accuracy:
- 3%RH
- Pressure range:
- 300 to 1100hPa
- Pressure accuracy:
- 1hPa
- Board Dimensions:
- 15mm x 7mm x 4.84mm
