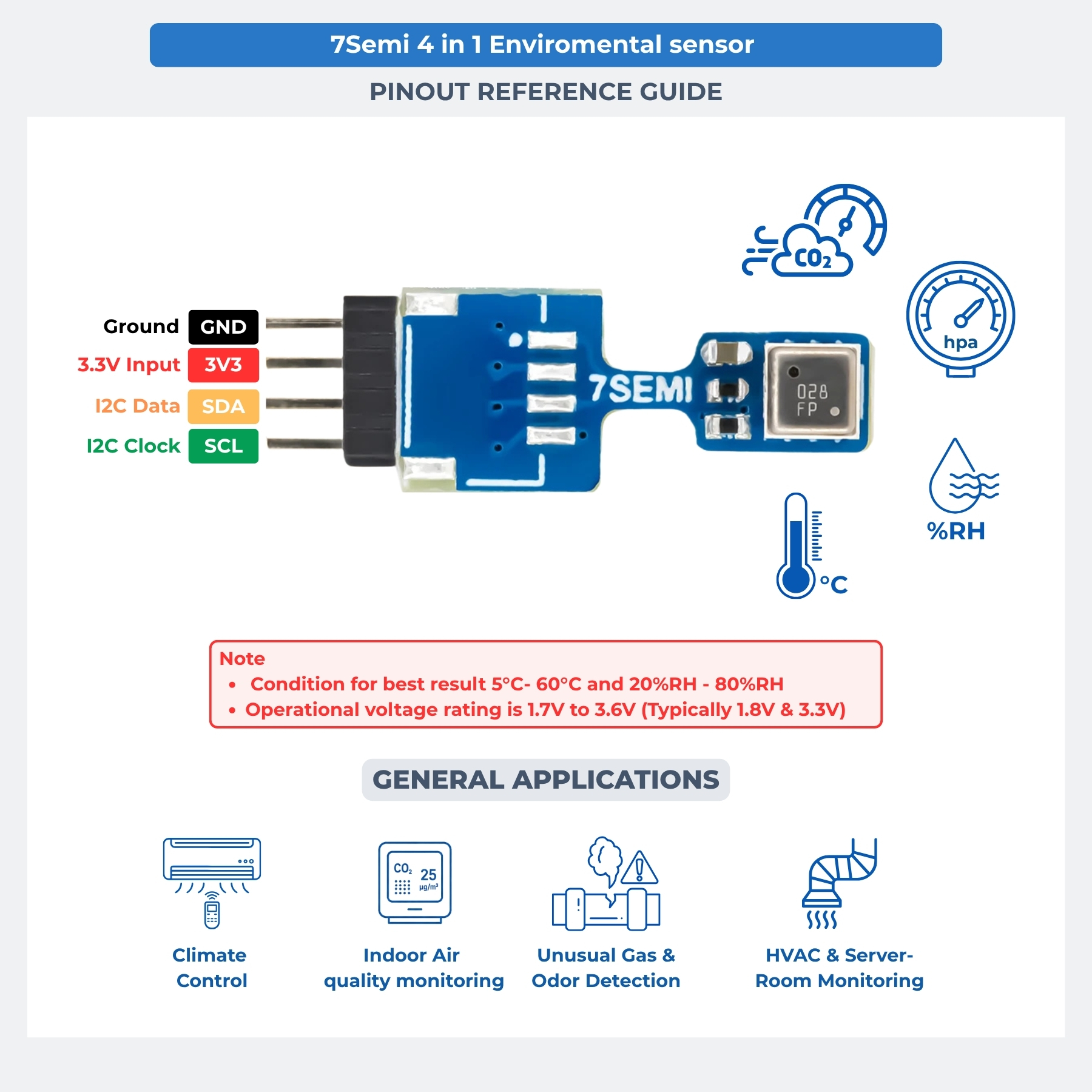

The BME680 Temperature, Pressure, Humidity, and Gas Sensor Nano Breakout with a 1.27 mm pitch is a compact module featuring Bosch’s BME680 environmental sensor. It combines temperature, relative humidity, barometric pressure, and gas sensing in a single device. The integrated gas sensor provides gas-resistance data for VOC-related and indoor environmental monitoring applications, with Bosch BSEC software support for processed gas and air-quality outputs. Featuring an I²C interface, the module can be easily integrated into a wide range of projects, including environmental monitoring, gas sensing, and smart sensing systems.
- Bosch BME680 Sensor: Delivers reliable and precise readings across multiple environmental parameters.
- Operating Modes: Forced Mode, Sleep Mode, and Parallel Mode options are available.
- 3.3V Compatibility: Works flawlessly with Raspberry Pi, Arduino, and other common platforms.
- 1.27mm Pitch Header: Facilitates easy and secure connections.
- Advanced Power Management: Offers programmable low-power modes and interrupt functions to optimize battery life in portable or long-term projects.
-
Fast Data Communication: Supports I²C communication speeds of up to 3.4 MHz.
-
Compact Nano Form Factor: Ideal for space-constrained designs.
Items include
1x 7Semi BME680 Sensor module (ES-12174)
- Category of product:
- Digital Environmental Sensor
- Operational Voltage:
- 1.7V to 3.6V
- Operational temperature:
- -30C TO 85C
- Temperature accuracy:
- 1C
- Humidity range:
- 0 TO 100%RH
- Humidity accuracy:
- 3%RH
- Pressure range:
- 300 TO 1100hPA
- Pressure accuracy:
- 1.0hPA
- Dimension:
- 19mm x 7mm x 3.10mm
