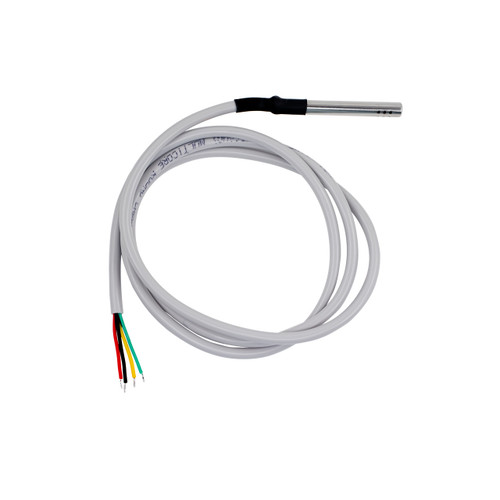

The BME690 Environmental Sensor Probe is a compact digital environmental sensing solution that combines multiple measurements in a single device. It is designed for applications that need temperature, humidity, and barometric pressure data without using separate sensors, helping simplify system design and reduce component count.
The integrated gas sensing element adds air-quality capability by responding to VOCs and other gases in the surrounding air. With Bosch software support, the sensor data can also be used for functions such as IAQ evaluation and gas-related environmental analysis, depending on the sensor model.
Features
- Combines temperature, humidity, and barometric pressure sensing in one compact device.
- Reduces the need for multiple separate environmental sensors in a system.
- Provides digital sensor data directly to the host controller, simplifying signal processing.
- Supports configurable measurement modes to balance power consumption, response time, and data rate.
- Includes selectable oversampling and filtering options for adapting measurement behavior to the application.
- Supports low-power operation for battery-powered and continuously monitored systems.
- Adds VOC and air-quality monitoring capability where supported by the sensor.
- Suitable for weather stations, HVAC systems, indoor air monitoring, IoT nodes, automation, and portable devices
Resources
Visit our GitHub to download the Arduino library.
- Category of product:
- Digital Enviroment sensor
- Operational voltage:
- 1.7V DC to 3.6V DC (Typically 3.3V)
- Communication interface:
- I2C (Default address -: 0x76)
- Temperature sense range:
- -40C to +85C
- Temperature measurement accuracy:
- +/- 0.5C
- Humidity measurement range:
- 0 TO 100% RH
- Humidity accuracy:
- +/-3%RH
- Pressure measurement range:
- 300 TO 1100hPa
- Pressure measurement accuracy:
- ±0.5 hPa
- Cable length:
- 1meter

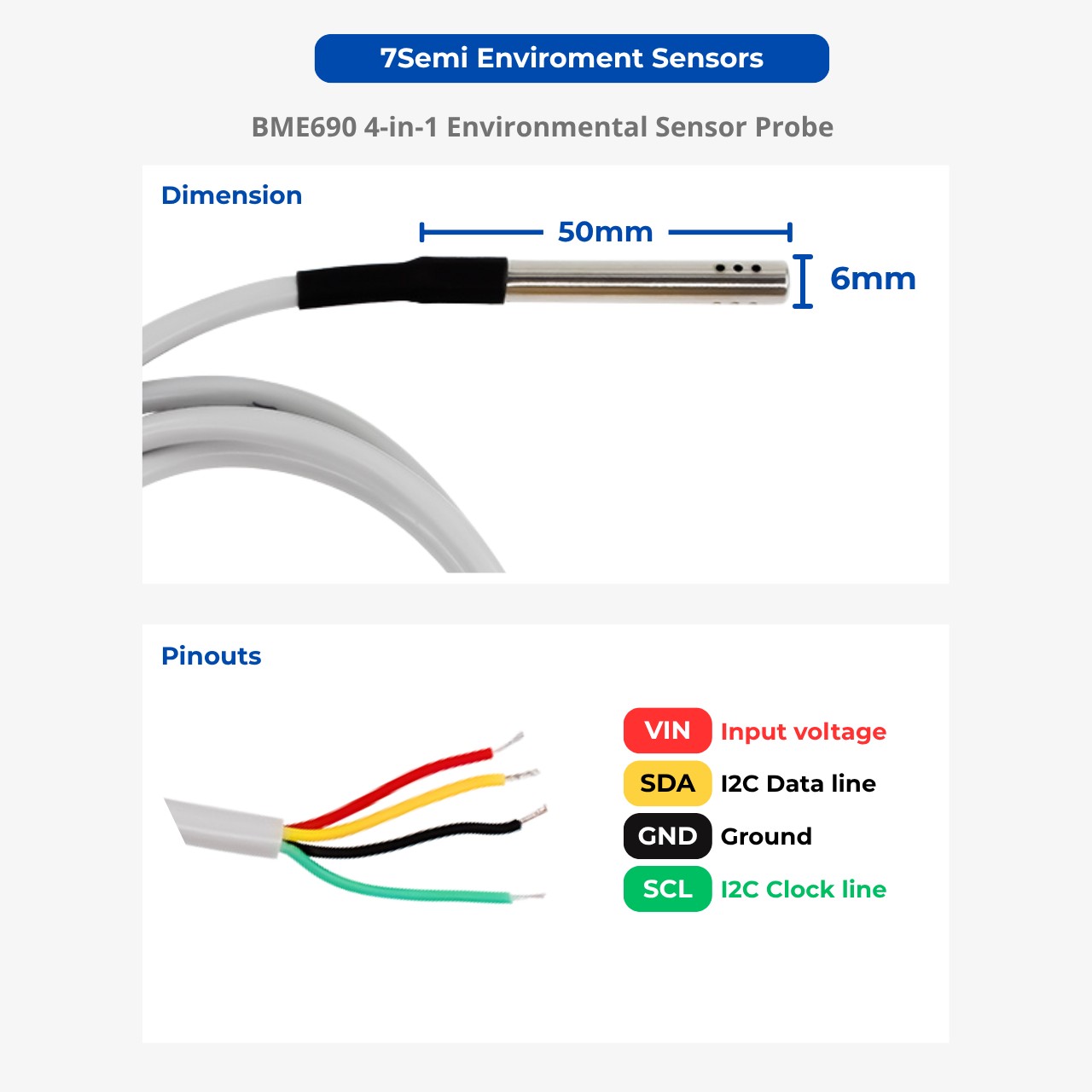

- Probe dimension:
- length 50mm , diameter 6mm
