The 7Semi BME690 Environmental Sensor combines temperature, relative humidity and barometric pressure sensing in a compact solution for environmental monitoring. It is recommended for room climate monitoring, weather stations, home automation and connected sensor networks. Its low-power operation supports portable and battery-powered designs, while configurable measurement settings allow developers to balance measurement frequency, signal noise and power consumption according to their application.
The integrated gas sensor responds to volatile organic compounds (VOCs), supporting indoor air quality monitoring. When used with Bosch BSEC software on a compatible host, its readings can be processed to provide an Index for Air Quality (IAQ), bVOC-equivalent and CO₂-equivalent outputs. CO₂-equivalent is an estimated value derived from gas-sensor responses, not a direct measurement of CO₂ concentration
Key Features
- The sensor supports I²C digital interfaces for reading measurements and configuring operation from an embedded controller.
- Supports sleep and on-demand measurement modes, helping reduce energy consumption between readings in periodic monitoring applications.
- Offers configurable oversampling, allowing measurement noise, response time and power consumption to be balanced for the application.
- Includes internal filtering for temperature and pressure measurements to reduce short-term fluctuations caused by environmental disturbances.
- Recommended for climate control, home weather stations, smart home devices and environmental sensor networks.
What’s Included

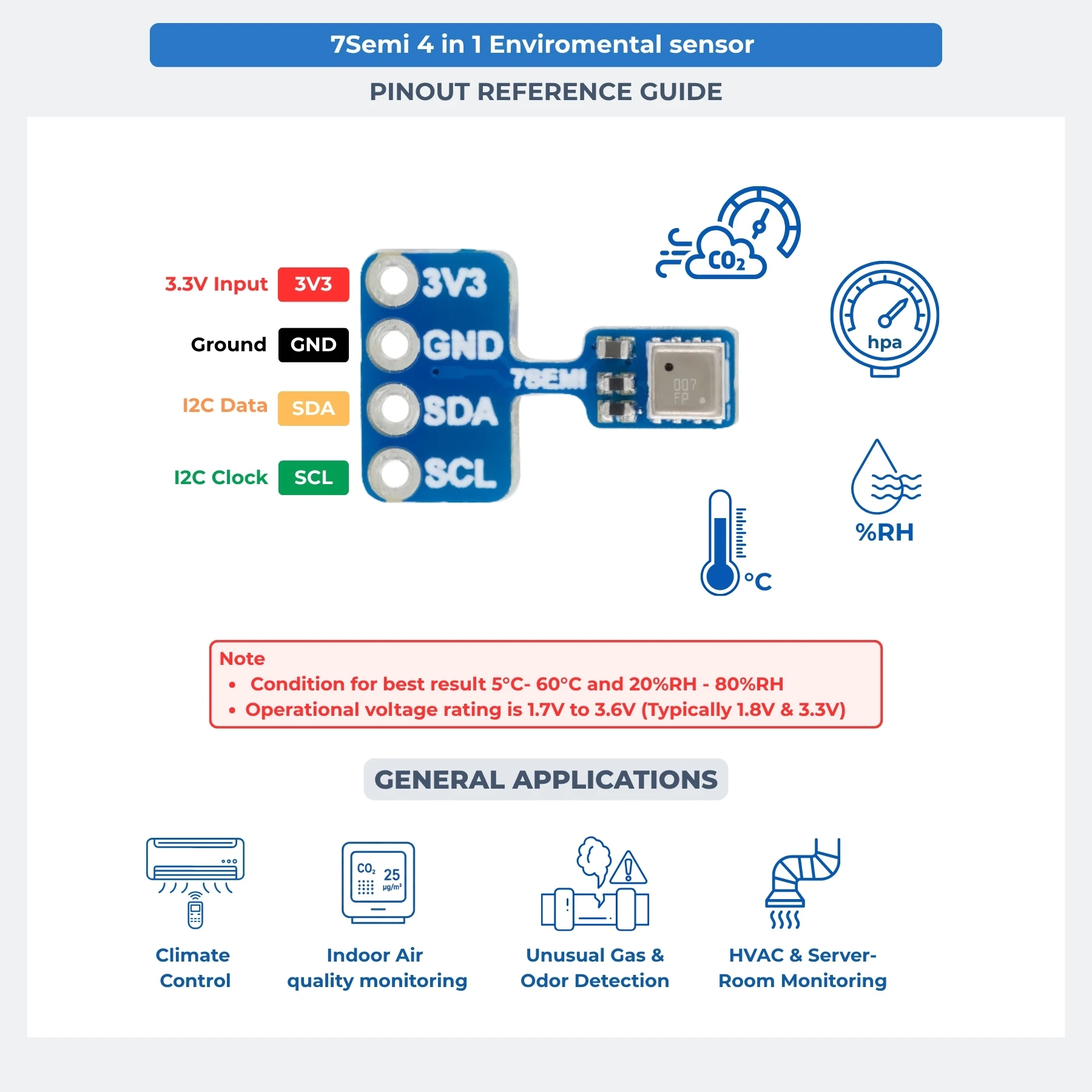

1x 7Semi BME690 Digital Sensor Nano Breakout
1x 2.54mm pin headers
Resources
- _3d_glb:
- https://7semi.com/content/3d-files/dfx_step/10257.glb
- Category:
- Enviroment sensors
- Communication interface:
- I2C
- I2C address:
- 0x76
- Operational voltage:
- 1.8V to 3.6V
- Measures:
- Gas, pressure, Humidity, Temperature
- Operational Temperature:
- -40C to 85C
- Temperature accuracy:
- 0.5C
- Humidity range:
- 0 to 100%RH
- Humidity accuracy:
- 3%RH
- Pressure range:
- 300 to 1100hPa
- Pressure accuracy:
- 0.5hPa
- Dimension:
- 10mm x 15mm
