7Semi CP2102 USB-C UART Converter – 3.3V/5V TTL Serial Module

The 7Semi CP2102 UART Module provides a simple USB-to-TTL UART connection between a computer and serial devices such as microcontrollers, development boards, embedded controllers, and communication modules. It converts the computer’s USB connection into UART TX and RX signals that can be connected directly to the target hardware.

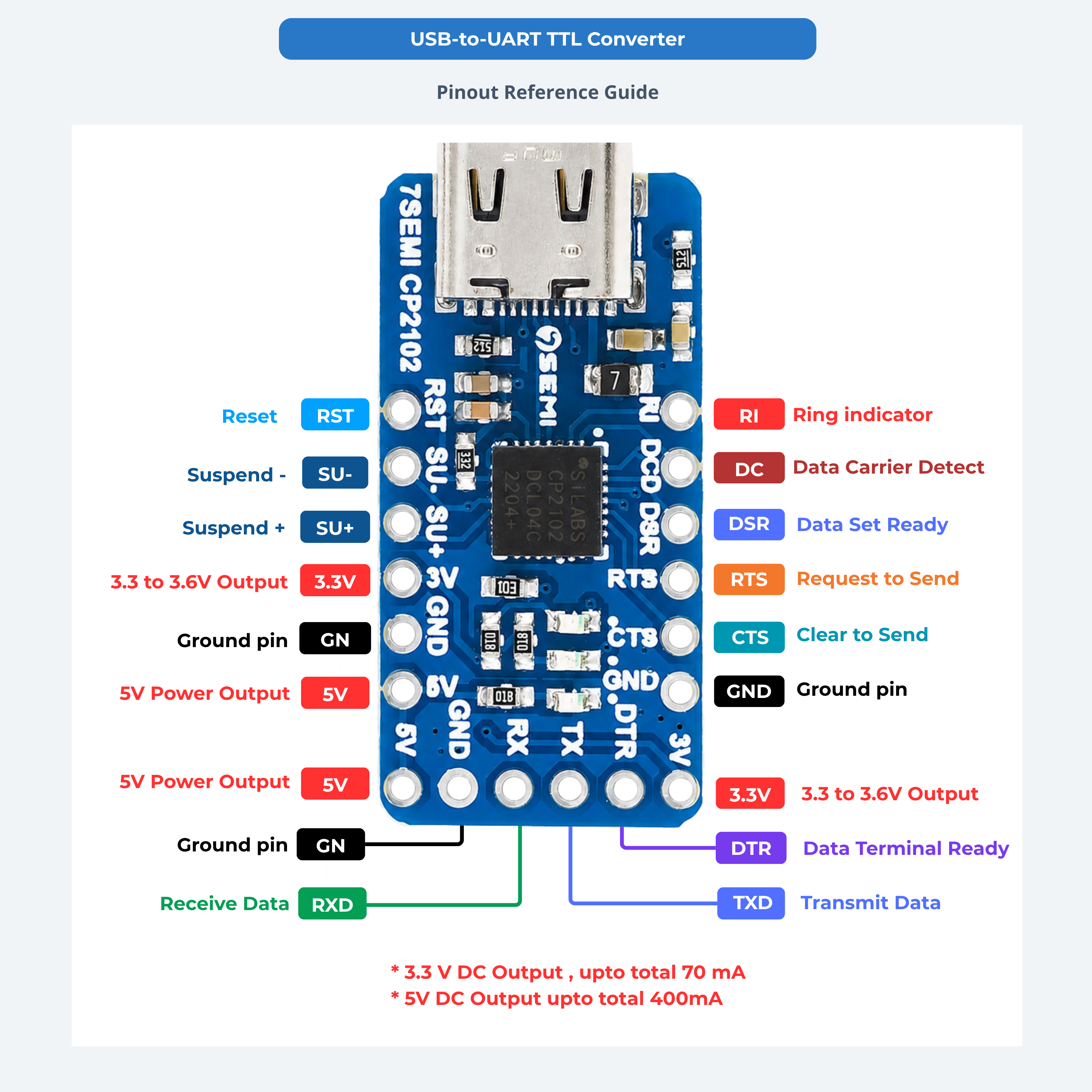

The module is useful for development, testing, configuration, debugging, and serial communication tasks. It can be connected to the target device through TX, RX, and GND, while serial-terminal or development software on the computer can be used to send commands and view data from the connected hardware.

Key Features

• Supports RTS/CTS hardware flow control for reliable UART communication.
• Appears as a Virtual COM Port for easy use with commonly available serial-terminal and development software.
• Supports commonly used UART configurations including different data bits, stop bits, and parity settings.
• The integrated USB transceiver and clock reduce the need for additional external components.
• The module supports a 5 V DC typical USB-C supply, while the built-in regulator provides 3.3 V typical output with up to 100 mA rating
• The integrated programmable memory allows USB identification information to be configured for suitable applications.
• Its compact design makes it convenient for development benches, prototypes, testing fixtures, and embedded-system servicing.

Items Included

• 1 × 7Semi CP2102 UART Module (CM-11012)
• 1 × 2.54 mm Pitch Pin Headers

Resources

Datasheet of CP2102

DXF Files

STEP Files
