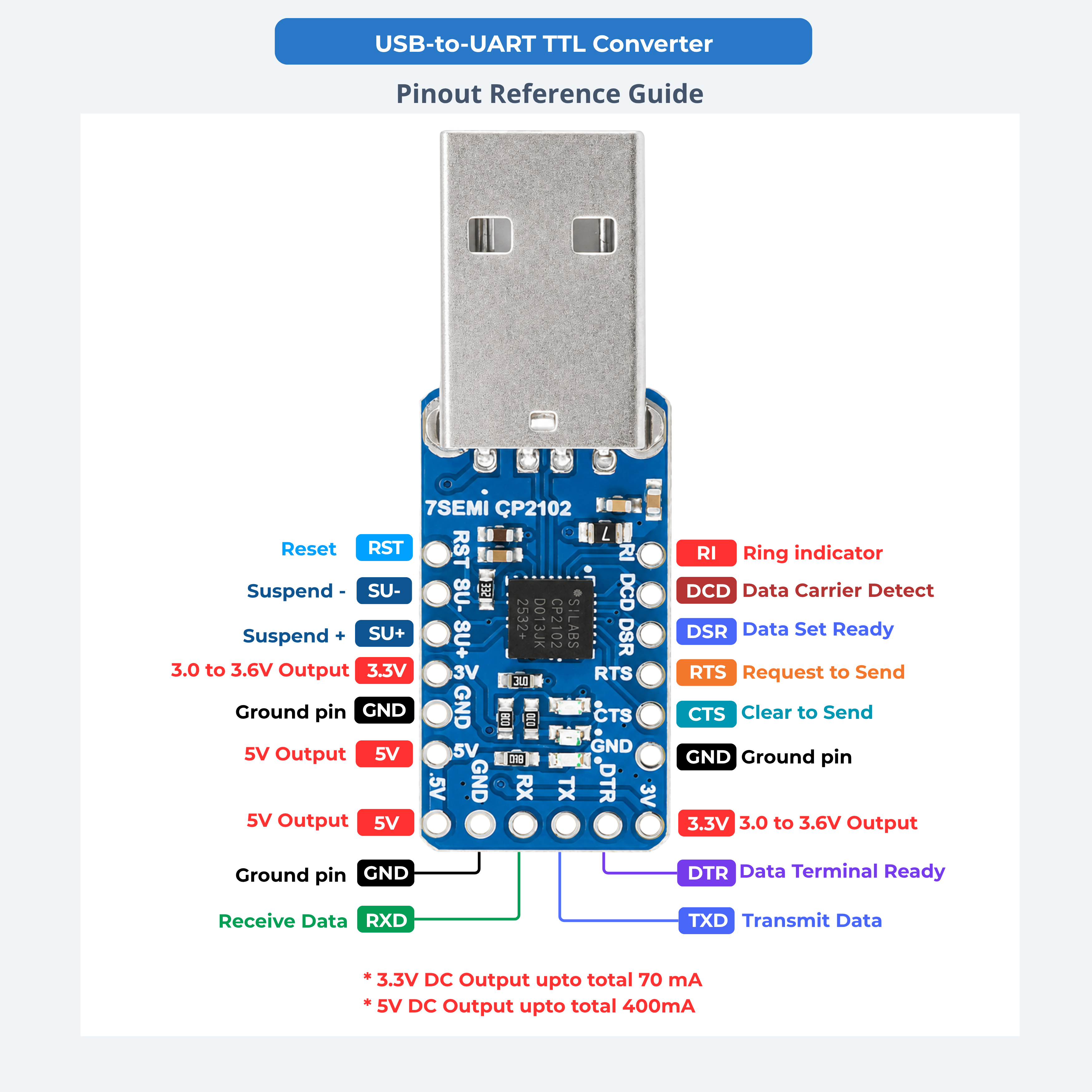

The 7Semi CP2102 USB-A to UART Converter Board provides a compact, plug-and-play interface for connecting computers to microcontrollers and other TTL UART devices. Powered by the CP2102 USB-to-UART bridge controller, it supports USB 2.0 full-speed communication at 12 Mbps and UART baud rates from 300 bps to 1 Mbps. The board works with royalty-free Virtual COM Port drivers, allowing it to appear as a standard COM port, and supports flexible UART formats, hardware and software flow control, and reliable bidirectional data transfer.
Key Features
- Wide Baud-Rate Range: Supports UART communication speeds from 300 bps to 1 Mbps.
- Common Baud Rates: Supports 9600, 19200, 38400, 57600 and 115200 bps.
- Hardware and Software Flow Control: Supports RTS/CTS hardware handshaking and X-On/X-Off software flow control.
- Flexible UART Configuration: Supports 5–8 data bits, 1, 1.5 or 2 stop bits, and none, odd, even, mark or space parity.
- Integrated Data Buffers: Features a 576-byte receive buffer and 640-byte transmit buffer for smooth and reliable data transfer.
Resources
- Category of product:
- USB to UART TTL Converter
- USB support:
- USB type A
- Operational temprature:
- –40°C to +70°C
- Operational voltage:
- 5V Via USB
- Dimension (L x B x H):
- 45mm x 15mm x 4.95mm
- _3d_glb:
- https://7semi.com/content/3d-files/10139.glb
- Common Baud rate support:
- 9600, 19200, 38400, 57600 and 115200 bps.
