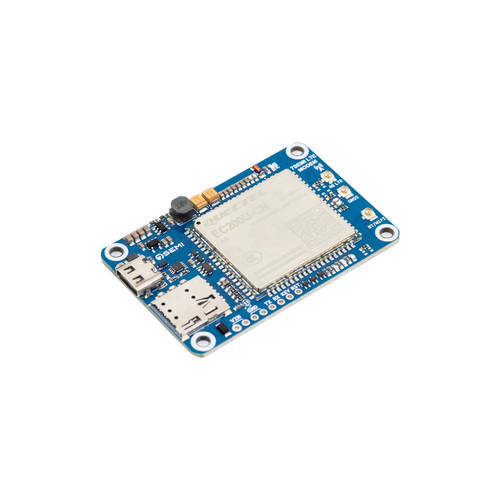

The 7Semi EC200U-CN 4G LTE Mini Modem is a compact and easy-to-use module for internet connectivity and location tracking. It supports 4G LTE with fallback to 2G networks, so you get stable connection in most areas. It also supports GNSS like GPS, GLONASS, BeiDou, Galileo, and QZSS for accurate location tracking. The modem can be powered using USB or external supply and supports both USB and UART communication, making it flexible for different setups. It comes with an FPC antenna for better signal strength. This module is ideal for IoT, tracking, automation, and communication projects.
Note: The EC200U-CN is compatible exclusively with the frequency bands used in India and China.
Features:
• 4G LTE Connectivity: Supports LTE with fallback to GSM networks.
• GNSS Support: Works with GPS, GLONASS, BeiDou, Galileo, and QZSS.
• Easy Power Options: Can use USB (5V) or external power (5–26V).
• USB & UART Support: Simple connection for communication and control.
• Nano SIM Support: Works with standard nano SIM cards.
• Strong Signal: Comes with FPC antenna for better network reception.
• Wide Frequency Support: Works across multiple LTE and GSM bands.
• Compact Design: Small and easy to integrate into projects.
• Ideal for IoT: Suitable for tracking, remote monitoring, and automation
Important Documents
- EC200U-CN Datasheet
- EC200U GNSS AT Commands
- EC200U TCP/IP Application
- EC200U LTE Modem User Manual
- Download the EC200U-CN USB Modem Windows 10 Driver
- EC200U-CN USB Modem Driver Installation Guide
- EC200U-CN Firmware Update Guide
- Module EC200U-CN_quectel_driver
- EC200U-CN Firmware Update Guide
- QCOM_V1.6 for Windows
- Qnavigator_V1.6.9.1 for Windows
- EC200U-CN LTE GNSS Mini Modem 3D Step File
- EC200U-CN LTE GNSS Mini Modem DXF file
- Module used:
- Quectel EC200U-CN
- _3d_glb:
- https://7semi.com/content/3d-files/10329.glb
- Category:
- LTE +GNSS COMMUNICATION MODULE
- Communication interface:
- USB 2.0, UART
- Operational voltage:
- 5V to 26V
- Connectors:
- 2.54mm pitch standard connectors
- Operational temprature:
- -40C to +80C
- GNSS Constellations:
- GPS, BDS (BeiDou), Galileo, GLONASS, QZSS
- LTE-Frequency Bands:
- FDD-LTE: B1, B3, B5, B8; TDD-LTE: B34, B38, B39, B40, B41
- GSM Frequency Bands::
- B3 / B8
- Supported Protocols:
- TCP, UDP, PPP, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX
- Antenna Connector:
- U.FL / I-PEX RF Connectors
- Board Dimensions:
- 62mm X 40mm X 4.92mm
