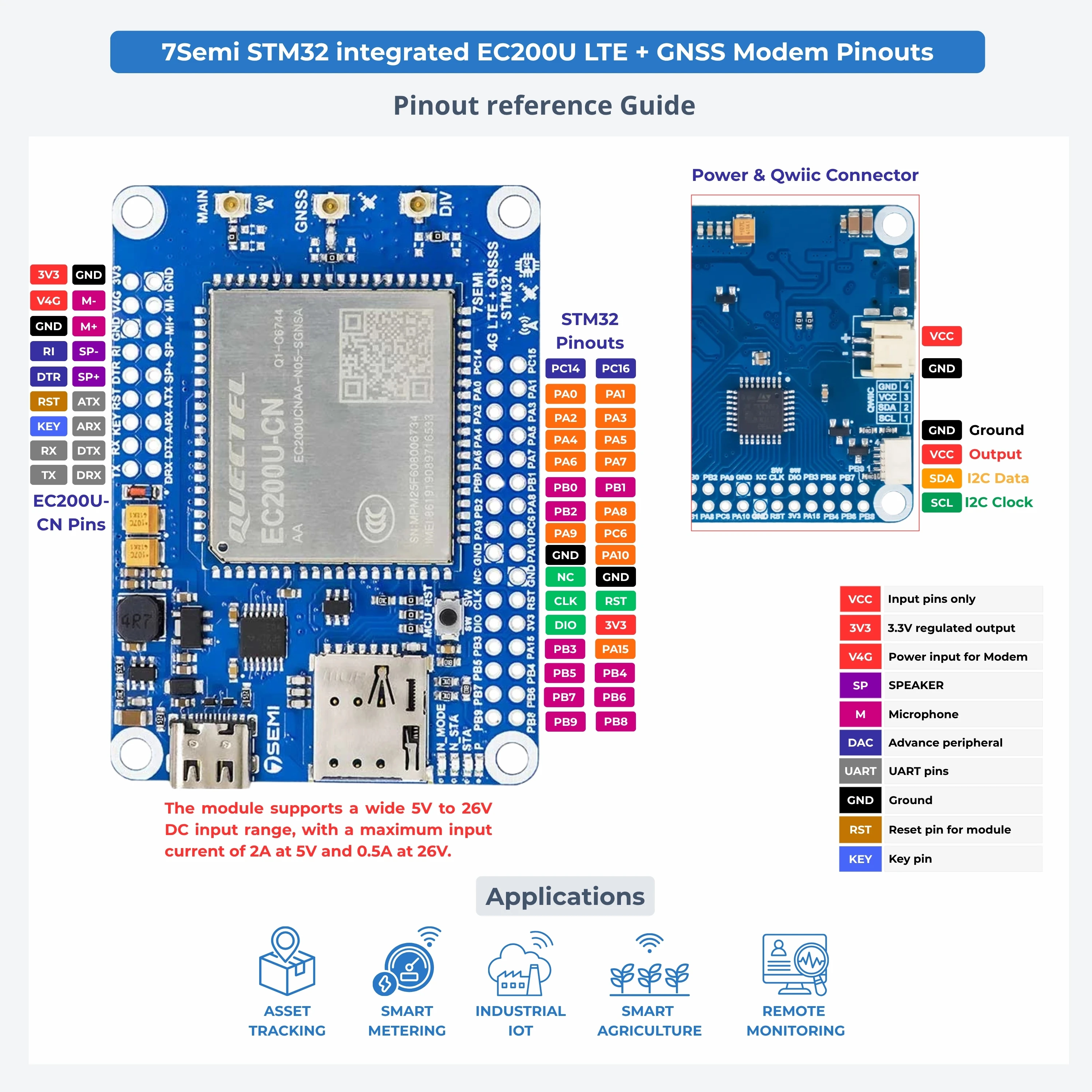

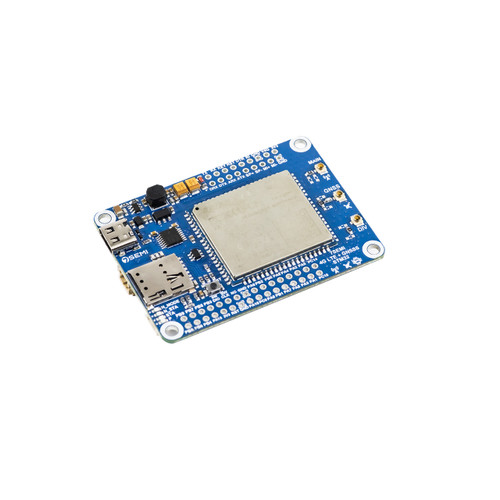

The 7Semi EC200U-CN + STM32 Module combines 4G LTE Cat 1 connectivity, GNSS, and an onboard STM32 microcontroller in a compact solution for IoT and embedded applications. The EC200U-CN provides reliable cellular communication with data rates up to 10 Mbps downlink and 5 Mbps uplink. It supports multiple LTE bands along with optional GSM/GPRS connectivity. Integrated GNSS enables positioning using GPS, BeiDou, Galileo, GLONASS, and QZSS. The onboard STM32 controller provides additional processing and system-control capability. Multiple hardware interfaces make the module easy to integrate with sensors, controllers, and other peripherals.
Key Features
- 4G LTE Cat 1 Connectivity: Up to 10 Mbps download and 5 Mbps upload speeds.
- Multi-Band LTE Support: FDD B1/B3/B5/B8 and TDD B34/B38/B39/B40/B41.
- Multi-Constellation GNSS: Supports GPS, BeiDou, Galileo, GLONASS, and QZSS positioning.
- Onboard STM32 Controller: Integrated STM32G070KBT6 MCU for additional processing, control, and peripheral management.
- Multiple Communication Interfaces: Supports UART, USB 2.0, I²C, SPI
- IoT Protocol Support: Supports TCP/UDP, MQTT, HTTP/HTTPS, FTP/FTPS, SSL, NTP, PPP, and other protocols.
Resources
- EC200U STM32 Modem User Manual
- EC200U-CN Datasheet
- EC200U GNSS AT Commands
- EC200U TCP/IP Application
- EC200U MQTT Application Note
- EC200U AT Commands Manual
- EC200U-CN Firmware Update Guide
Note: The EC200U-CN is compatible exclusively with the frequency bands used in India and China.
- Category:
- LTE +GNSS COMMUNICATION MODULE
- Controller used:
- STM32GO70KBT6
- Controller Flash:
- 128KB
- Controller SRAM:
- 36KB
- Communication interface:
- USB 2.0, UART, I²C, SPI, ADC
- Operational voltage:
- 5V to 26V
- Connectors:
- 2.54mm pitch standard connectors
- Operational temprature:
- -40C to +80C
- GNSS Constellations:
- GPS, BDS (BeiDou), Galileo, GLONASS, QZSS (Optional)
- LTE-Frequency Bands:
- FDD-LTE: B1, B3, B5, B8; TDD-LTE: B34, B38, B39, B40, B41
- GSM Frequency Bands::
- B3 / B8
- Supported Protocols:
- TCP, UDP, PPP, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX
- Antenna Connector:
- U.FL / I-PEX RF Connectors
- Board Dimensions:
- 65mm x 47mm x 10.42mm
