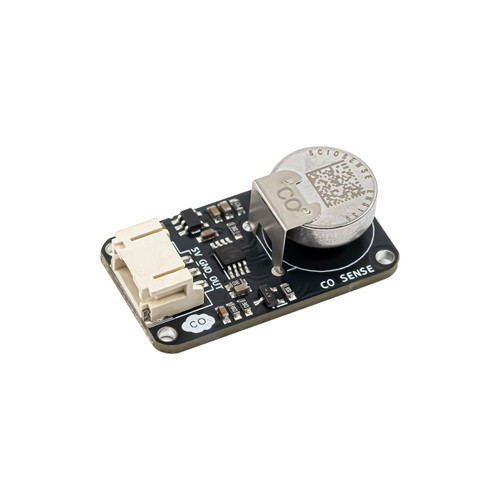

The 7Semi ENS130 CO Sensor Breakout Board is a compact analog carbon monoxide (CO) sensing module designed for rapid integration into embedded systems, IoT devices, and safety monitoring applications. Based on the ScioSense ENS130 electrochemical fuel-cell CO sensor, this breakout converts the sensor's nanoamp-level output into an analog voltage using an onboard precision signal conditioning circuit, allowing direct interfacing with microcontrollers, ADCs, PLCs, and industrial controllers.
Unlike bare electrochemical sensors that require external amplification and precision analog circuitry, this breakout board includes the necessary analog front-end, making it suitable for quick prototyping and product development. It is ideal for applications such as indoor air quality monitoring, residential and commercial CO alarms, battery energy storage systems (BESS), industrial safety equipment, smart building automation, and portable gas detection instruments.
The board operates from a 5V supply, provides a linear analog output proportional to CO concentration, and offers low-power operation suitable for continuously powered monitoring systems. The ENS130 sensor measures carbon monoxide concentrations from 0 to 5000 ppm, with fast response time, excellent stability, and a typical service life of up to 10 years.
Features:
- Genuine ScioSense ENS130 electrochemical CO sensor
- Detects Carbon Monoxide (CO) from 0–5000 ppm
- Precision analog output proportional to CO concentration
- Integrated signal conditioning circuit
- Operates from a single 5V supply
- Ultra-low current consumption suitable for continuous monitoring
- Fast response time (t90 < 60 seconds)
- Excellent repeatability and long-term stability
- High immunity to interfering gases
- Anti-poisoning electrochemical sensor technology
- Compact breakout board for rapid integration
- Compatible with Arduino, ESP32, STM32, Raspberry Pi (with ADC), PLCs, and industrial controllers
- Designed for permanent air quality and safety monitoring applications
Applications
Indoor Air Quality Monitoring: Continuously monitor carbon monoxide levels in homes, offices, and commercial buildings.
Industrial Safety Systems: Detect hazardous CO leaks in factories, warehouses, and manufacturing facilities.
Battery Energy Storage Systems (BESS): Monitor carbon monoxide generation in battery rooms for enhanced safety.
Smart Home & IoT Devices: Integrate CO detection into connected safety, automation, and environmental monitoring systems.
Fire & Gas Detection Equipment: Build residential, commercial, and portable carbon monoxide detection and alarm systems.
Resources
- Operational Voltage:
- 3.3V
- Operational temperature °C:
- -40°C ~ 70°C
- Sensitivity:
- 1.5±1nA/ppm
- Application range:
- 0~5000ppm
- Response time:
- 60s
- Operational humidity:
- 10 TO 90%RH
- Dimensions in mm:
- L=32mm W=18mm H=2mm
