7Semi BNO055 Absolute Orientation Sensor Nano Breakout Board – 9DOF IMU

SKU
ES-12277

Combines inertial and magnetic sensing with onboard fusion for motion and orientation tracking.

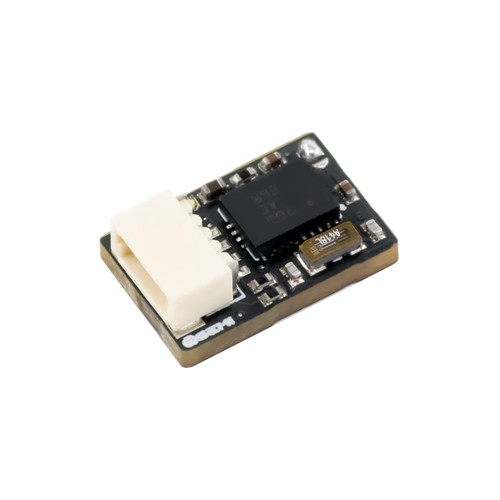

Angled View of BNO055 sensor

Select a photo to enlarge it.

13 x 9 x 4.7

Write a Review
$21.00
Only 9 left
Adding to cart… The item has been added

About this product

The 7Semi BNO055 Absolute Orientation Sensor Module is a compact motion-sensing board designed to provide accurate orientation and movement data. It combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in a single module. Built-in sensor fusion processes the sensor data internally and provides ready-to-use orientation information, reducing the processing required from the main controller. The module supports I²C and UART communication, making it easy to integrate with microcontrollers and embedded systems. It is well suited for robotics, motion tracking, drones, wearable devices, navigation, and orientation-based applications.

Key Features

  • 9-Axis Motion Sensing: Combines acceleration, rotation, and magnetic field sensing in one compact module.
  • Built-in Sensor Fusion: Processes multiple sensor inputs internally to provide usable orientation data.
  • Direct Orientation Data: Provides heading, rotation, and motion information without complex external calculations.
  • I²C and UART Communication: Offers flexible connection options for different controllers and embedded systems.
  • Easy System Integration: Simplifies development for applications that require orientation and motion sensing.
  • Compact Breakout Design: Suitable for prototypes and space-constrained embedded applications.
  • Ideal for Motion-Based Projects: Useful for robotics, drones, wearables, navigation, stabilization, and tracking systems.

 Resources

Datasheet of BNO055

DFX File

STEP File
