7Semi BNO085 9-DOF Orientation IMU Fusion Nano Breakout

7Semi
SKU
ES-12234

Combines inertial and magnetic sensing with onboard fusion for orientation and heading tracking.

BNO085 9-DOF Orientation IMU Fusion Nano Breakout, a high-performance sensor module offering 9 degrees of freedom for precise motion tracking and orientation in compact applications.

Select a photo to enlarge it.

11mm x 10mm x 6mm

Write a Review
$25.80
90 in stock

Shipped in 24 Hours from Mumbai Warehouse

Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 2 or above and get 0% off
Adding to cart… The item has been added

About this product

The BNO085 9-DOF Orientation IMU Fusion Nano Breakout is a compact inertial measurement unit providing 9 degrees of freedom with built-in sensor fusion for precise orientation tracking. It combines accelerometer, gyroscope, and magnetometer sensors to deliver accurate data on movement and heading, suitable for robotics, VR, AR, and IoT applications. With support for I2C and SPI interfaces, it integrates easily into systems requiring responsive motion sensing and orientation feedback.

Features:
  • Advanced Sensor Fusion: 9-axis integration with precise data outputs, including acceleration, angular velocity, and magnetic field strength.
  • Low Power Consumption: Optimized for efficient energy usage in portable devices, with a low-power ARM Cortex M0+ processor.
  • Versatile Compatibility: Backward compatible with BNO080, offering enhanced reliability with SPI compatibility fixes.
  • Comprehensive Data Reporting: Supports a variety of calibrated, uncalibrated, and raw data reports.
  • Enhanced Detection and Classification: Includes Stability Detection, Motion Detection, Activity Classification, and unique AR/VR rotation vectors.

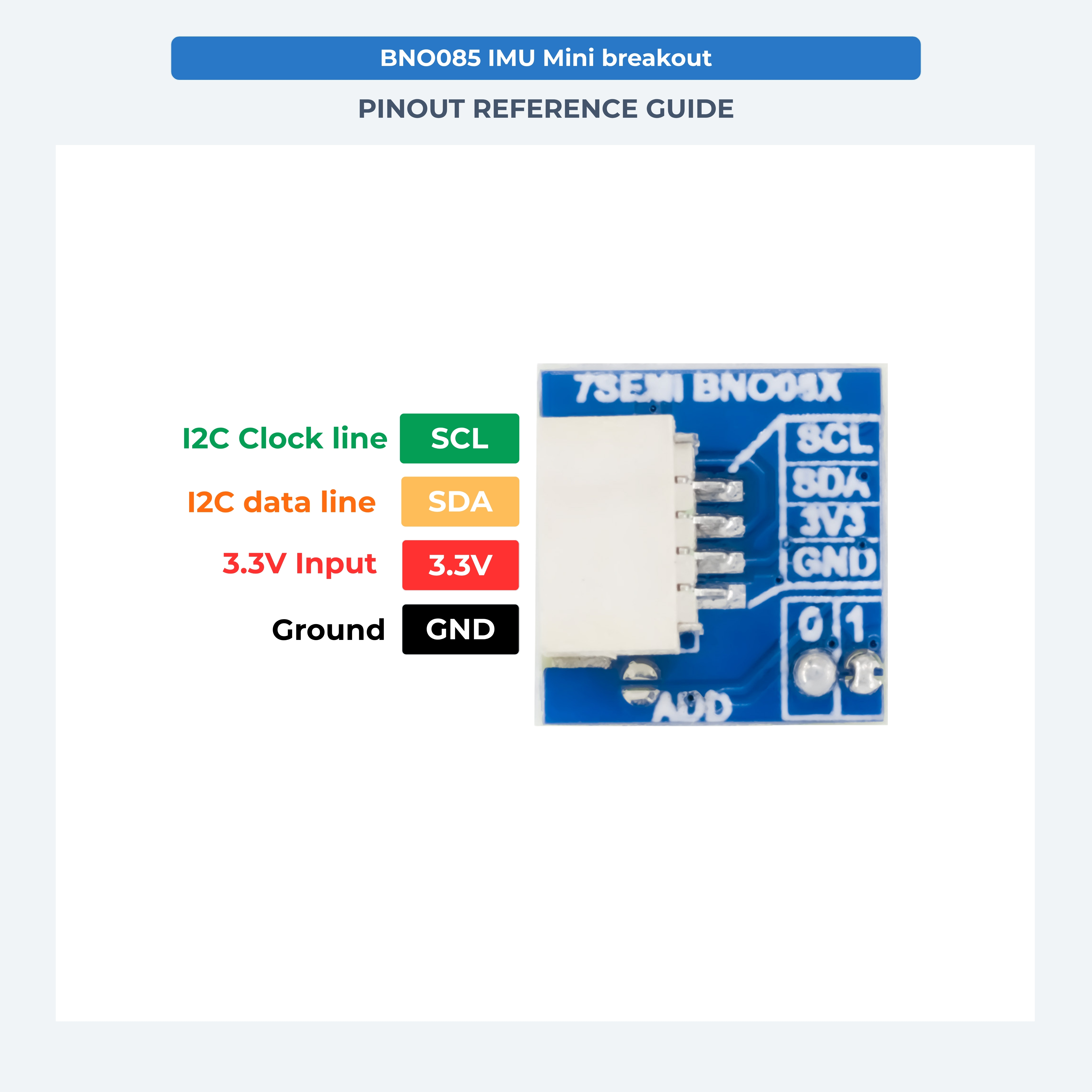

  • Developer-Friendly Interface: I2C interface for straightforward integration with multiple device architectures.

Resources


BNO085 Datasheet

DXF File

STEP File
