The 7Semi BMI323 Nano Sensor Board delivers high-performance motion sensing in an ultra-compact Qwiic-ready module. Powered by the Bosch BMI323 IMU, this board combines a 3-axis accelerometer and 3-axis gyroscope in a space-saving form factor suitable for space-constrained wearables, drones, and compact robotics. It supports I²C communication and is plug-and-play compatible with the Qwiic ecosystem.
Designed for low power and intelligent motion recognition, this sensor is ideal for gesture detection, activity classification, orientation, and mobile asset tracking in embedded systems.
Features
-
6DOF Motion Tracking – 3-axis accelerometer + 3-axis gyroscope
-
Ultra-Low Power Operation with configurable power modes
-
Built-in Features: Step counting, tap detection, auto low-power switching
-
Dual Interface Support: I²C (up to 1MHz)
-

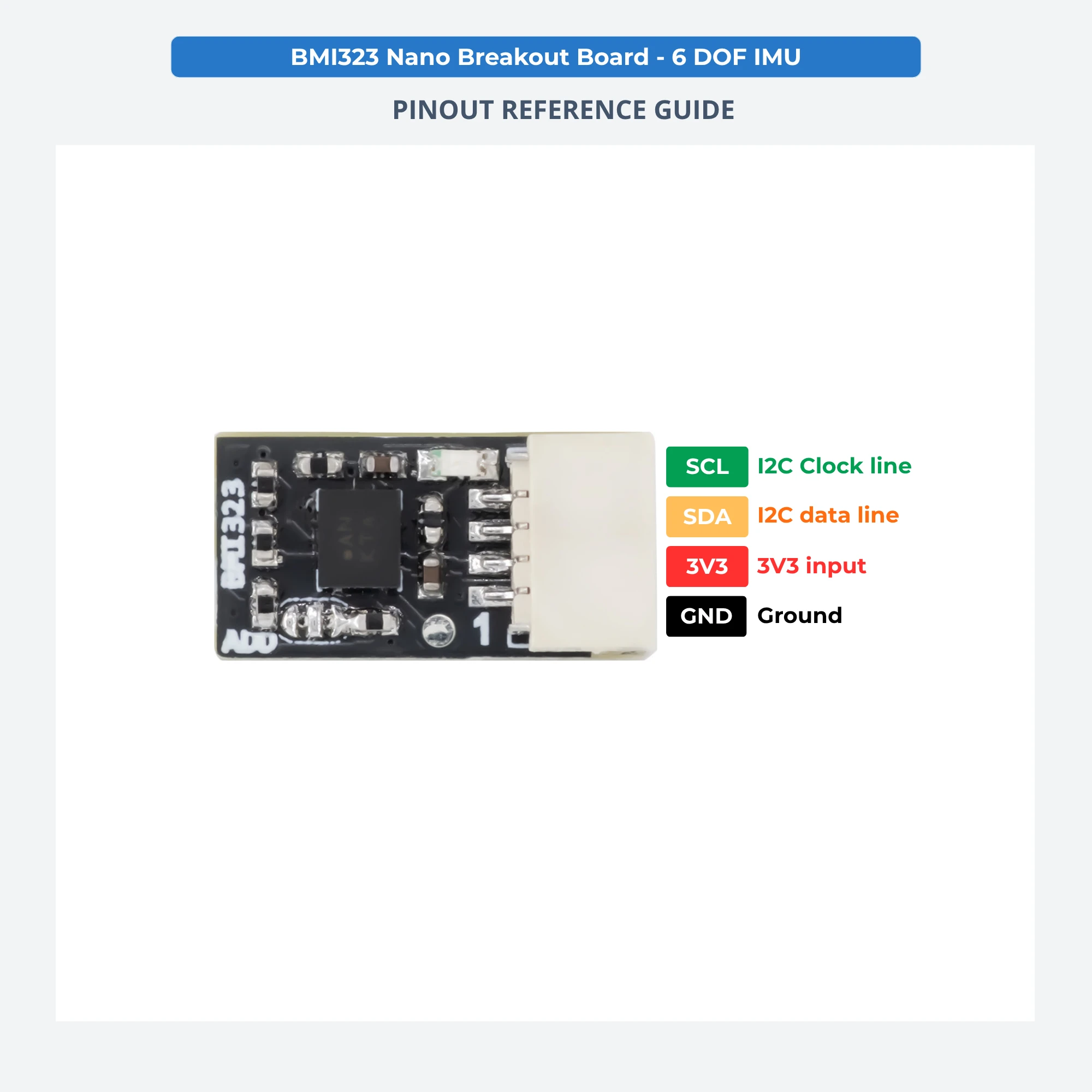

Qwiic-Compatible Connectors – Plug-and-play for rapid prototyping
What is Included?
-
1 × 7Semi BMI323 IMU 6DOF Sensor Board
Resources
- Sensor IC:
- Bosch BMI323
- Acceleration Range:
- ±2g, ±4g, ±8g, ±16g
- Gyroscope Range:
- ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
- Interface:
- I²C Qwiic
- I²C Address:
- 0x69 (default)
- Voltage Input:
- 3.3V
- Operating Temperature:
- -40°C to +85°C
- Board Size:
- ~19mm × 8mm
- Board Weight:
- 2g
- _3d_glb:
- https://7semi.com/content/3d-files/dfx_step/10382.glb
