7Semi LSM6DSV16X 6-Axis IMU (Accelerometer + Gyroscope) Qwiic

7Semi
SKU
ES-12280

Combines acceleration and rotation sensing with onboard processing for motion-tracking applications.

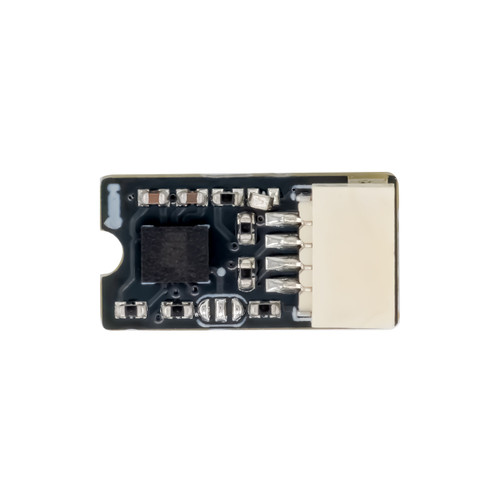

Front view of 7SEMI LSM6DSV16X motion sensor module showing MEMS accelerometer and gyroscope components

Select a photo to enlarge it.

13mm x 7mm x 4.5mm

Write a Review
$9.26
Only 8 left

Shipped in 24 Hours from Mumbai Warehouse

Adding to cart… The item has been added

About this product

The 7SEMI MOTION module is an ultra-compact Qwiic-compatible 6-axis IMU built around ST’s LSM6DSV16X, one of the newest high-performance accelerometer + gyroscope combinations from STMicroelectronics.
It features advanced motion processing, edge AI capabilities, finite state machines (FSM), machine learning cores (MLC), and ultra-low-power operation — making it ideal for smart IoT devices, robotics, tracking systems, wearables, and industrial motion analysis.

The tiny footprint and JST-SH Qwiic connector ensure fast plug-and-play integration into modern embedded systems.

Key Features

  • Based on LSM6DSV16X, ST’s next-gen 6-axis IMU

  • Integrated 3-axis accelerometer + 3-axis gyroscope

  • Edge AI features:

    • Machine Learning Core (MLC)

    • Finite State Machine (FSM)

    • Motion pattern recognition

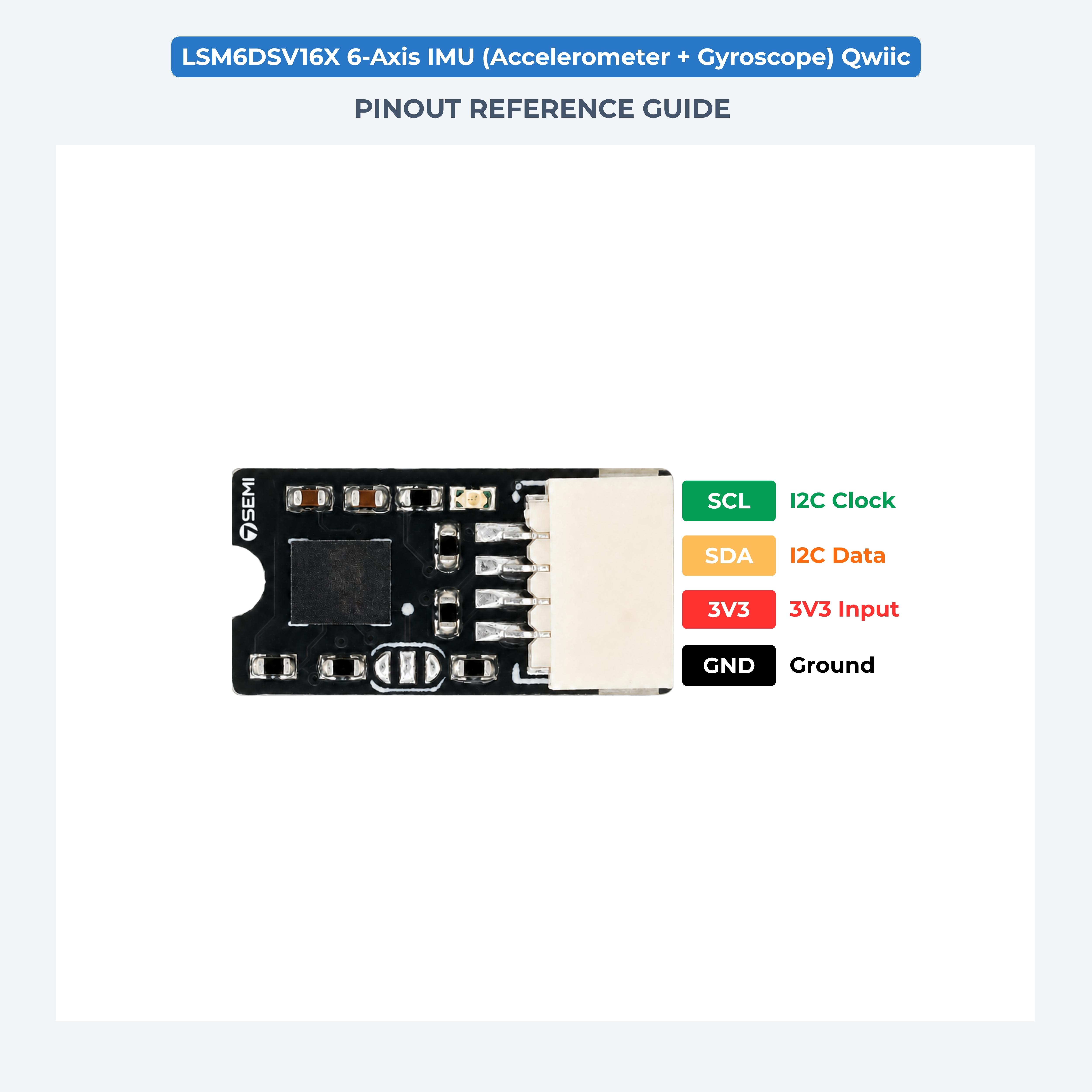

  • Qwiic/JST-SH 4-pin connector (GND, 3V3, SDA, SCL)

  • Ultra-low-power profiles for wearable/IoT

  • Ultra-low noise accelerometer and gyro

  • High output data rates with filtering and digital processing

  • Embedded temperature sensor

  • Compact SMD module footprint

  • Works with Arduino, ESP32, STM32 & Raspberry Pi (I²C)

Resources

Datasheet of LSM6DSV16X

DXF File

Step file
