7Semi BMI330 IMU Nano Module – 6-Axis Accelerometer & Gyroscope Motion Sensor (I²C / SPI)

SKU: ES-12282

Combines three-axis acceleration and rotation sensing for movement and orientation monitoring.

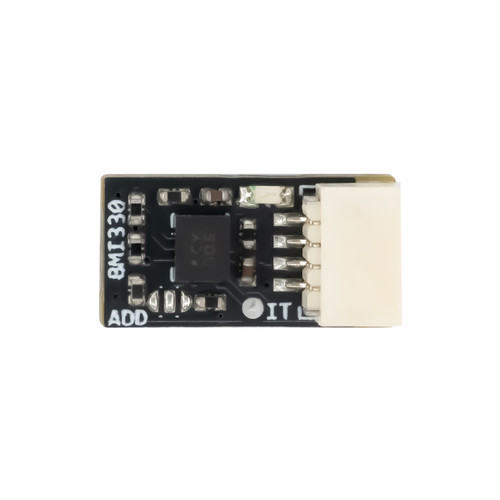

Front view of 7Semi BME330 Nano module showing connectors and components

Select a photo to enlarge it.

13 × 7 × 4.3 mm

Write a Review

$13.00

Out of stock

Upc:

Out of stock

About this product

The 7Semi BMI330 6-Axis IMU Nano Module is an ultra-compact motion-sensing module designed for accurate measurement of 3-axis acceleration and 3-axis angular velocity. Built around the BMI330 inertial measurement unit, it combines a 16-bit accelerometer and 16-bit gyroscope to provide reliable motion, rotation, orientation, and movement data for embedded applications.

The module provides configurable accelerometer ranges of ±2 g, ±4 g, ±8 g, and ±16 g, along with gyroscope ranges of ±125, ±250, ±500, ±1000, and ±2000 dps. Selectable output data rates up to 6.4 kHz and an integrated 2 KB FIFO support both high-speed motion acquisition and efficient sensor-data buffering. Designed for space-constrained applications, the nano module provides a Qwiic-compatible I²C connection for simple integration with microcontrollers and embedded systems. Its compact construction makes it suitable for robotics, drones, wearable devices, motion tracking, navigation, industrial monitoring, IoT devices, and other motion-sensing applications.

Features:

Combines a 3-axis accelerometer and 3-axis gyroscope for 6-axis motion sensing.
Provides 16-bit digital resolution for both acceleration and angular-rate measurements.
Supports configurable accelerometer ranges of ±2 g, ±4 g, ±8 g, and ±16 g.
Supports configurable gyroscope ranges of ±125, ±250, ±500, ±1000, and ±2000 dps.
Supports selectable output data rates up to 6.4 kHz.
Features a 2 KB on-chip FIFO for accelerometer, gyroscope, temperature, and timestamp data buffering.

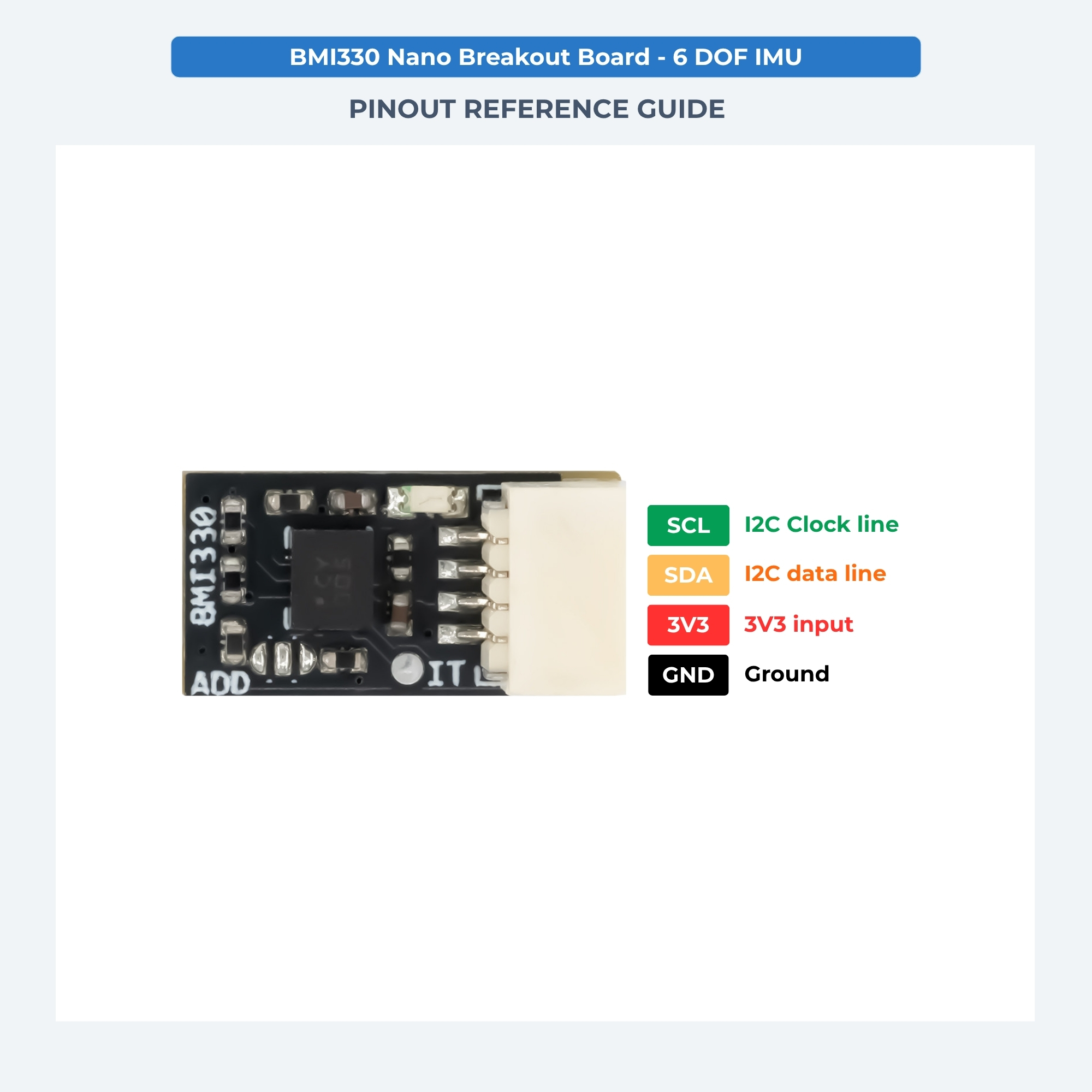

Provides a Qwiic-compatible I²C interface for convenient connection with embedded systems.
Supports I²C communication speeds up to 1 MHz.
Includes an integrated 16-bit digital temperature sensor.
Supports motion detection, step detection and counting, orientation and flat detection, and single/double/triple tap detection.
Features an integrated power management unit with multiple operating modes for efficient power consumption.
Ultra-compact nano module design suitable for space-constrained applications.
Suitable for robotics, drones, wearables, motion tracking, industrial monitoring, and IoT applications.
