7Semi BMI330 IMU 6DOF Sensor Module – 3-Axis Accelerometer & 3-Axis Gyroscope (I²C / SPI)

SKU
ES-12281

Combines three-axis acceleration and rotation sensing for movement and orientation monitoring.

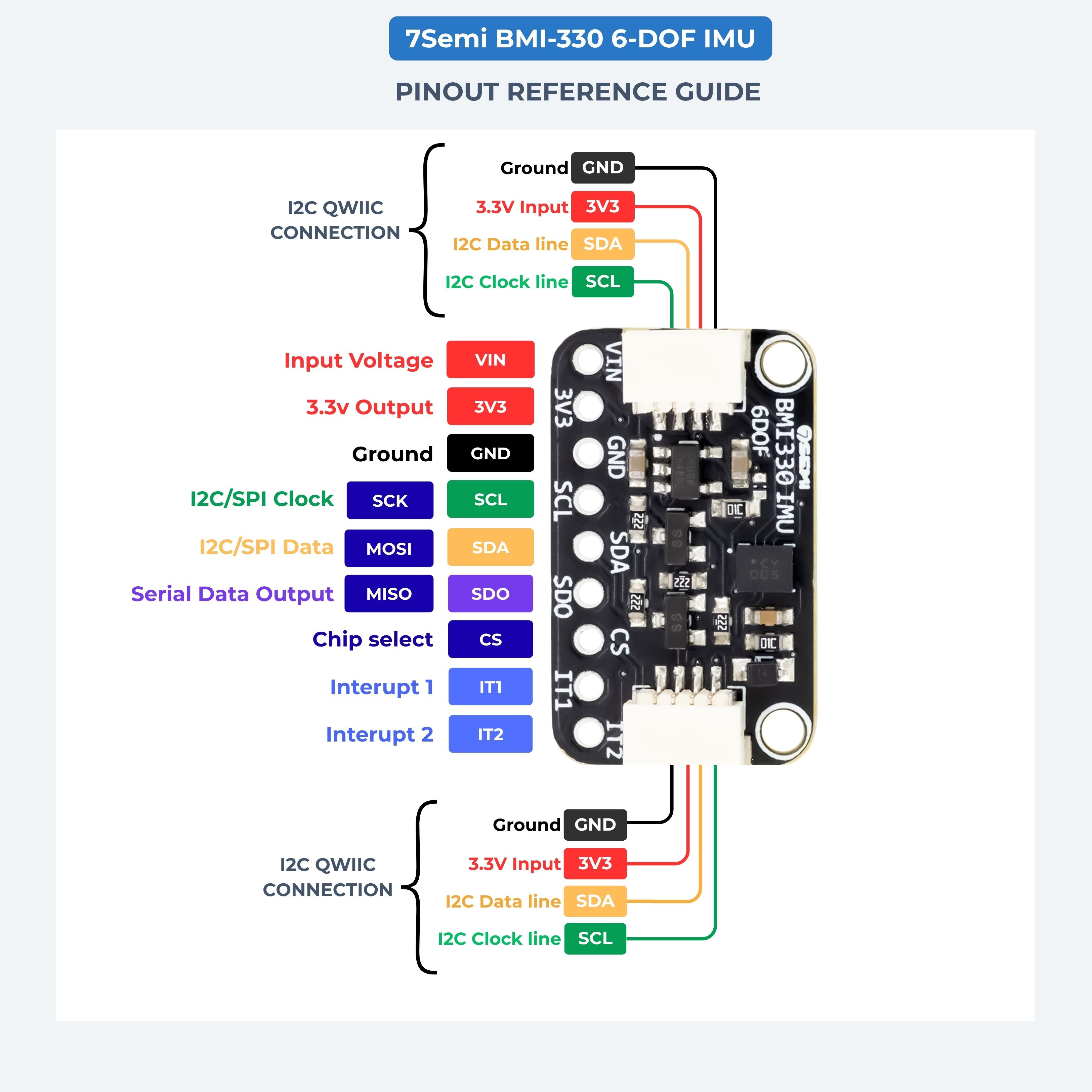

7Semi BMI330 IMU 6DOF sensor module front view showing Bosch accelerometer and gyroscope with dual Qwiic connectors
Sold Out

Select a photo to enlarge it.

24 x 15 x 4.8

Write a Review
$14.00

Out of stock

Out of stock

About this product

The 7Semi BMI330 IMU 6DOF Sensor Module is a compact motion sensing board built around Bosch’s advanced BMI330 sensor. It combines a 3-axis accelerometer and a 3-axis gyroscope in a single low-power device, allowing accurate detection of movement, rotation, and orientation. The module supports both I²C and SPI communication and includes dual Qwiic-compatible connectors for quick plug-and-play integration with development boards. Additional interrupt and configuration pins are also available for advanced control in embedded systems. With its stable performance, low noise, and configurable output data rates, this module is well suited for robotics, drones, wearable electronics, motion tracking systems, and industrial sensing applications.

Features

• 6-Axis Motion Sensing: Combines a 3-axis accelerometer and 3-axis gyroscope for accurate motion and rotation detection.

• Dual Communication Support: Works with both I²C and SPI interfaces for flexible system integration.

• Qwiic-Compatible Connectors: Two Qwiic ports allow quick plug-and-play connection without complex wiring.

• Low Power and High Stability: Designed for reliable motion sensing with efficient power usage.

• Compact Breakout Board: Small form factor suitable for space-constrained designs and portable electronics.

• Ideal for Motion Applications: Suitable for robotics, drones, wearables, motion tracking, and industrial monitoring systems.

Resources

BMI330 IMU 6DOF sensor datasheet

STEP file

DFX File
