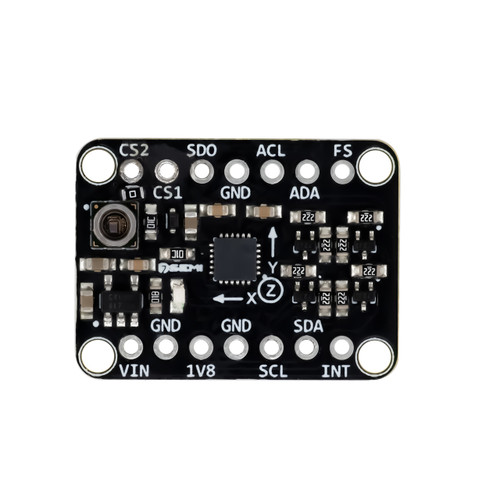

The 7Semi 10DOF IMU Module combines the powerful ICM20948 9-axis motion sensor with the high-precision BMP585 barometric pressure sensor to provide a complete motion and environmental sensing solution in a compact breakout board. The ICM20948 integrates a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer, enabling accurate motion tracking, orientation detection, and heading measurement. The addition of the BMP585 sensor allows the module to measure atmospheric pressure and estimate altitude, making it useful for applications that require both motion and environmental data. With support for both I²C and SPI communication and low-voltage operation, the module is suitable for low-power embedded systems and sensor fusion applications. Its compact design makes it ideal for drones, robotics, navigation systems, industrial monitoring, and advanced IoT projects.
Features:
• Complete 10DOF sensing with accelerometer, gyroscope, magnetometer, and pressure sensor.
• Accurate motion tracking and orientation detection using the ICM20948 sensor.
• Precise altitude and atmospheric pressure measurement with the BMP585 sensor.
• Supports both I²C and SPI communication for flexible system integration.
• Low-power operation suitable for embedded and portable devices.
• Compact module design ideal for drones, robotics, navigation, and IoT systems.
- VOLTAGE REQUIRE:
- 3.3V
- OPERATIONAL TEMPRATURE:
- -40C to 70C
- ACCELARATION:
- ±2g, ±4g, ±8g, ±16g
- GYROSCOPE:
- ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
- MAGNETOMETER RANGE:
- 4900uT
- COMMUNICATION METHOD:
- I2C/SPI
- DIMENSION IN mm:
- L=23mm W=17mm H=3.60mm
- _3d_glb:
- https://7semi.com/content/3d-files/10467.glb
