Provides a programmable Wi-Fi and Bluetooth platform for wireless and embedded IoT applications.
Select a photo to enlarge it.
56mm x 28mm x 5.8mm
Out of stock
Shipped in 24 Hours from Mumbai Warehouse
The 7Semi ESP32-WROOM-32E-N8R2 Development Board is a compact and versatile wireless development platform featuring Espressif's ESP32-WROOM-32E-N8R2 module. Equipped with a dual-core Xtensa LX6 processor running up to 240 MHz, 8MB Flash memory, and 2MB PSRAM, the board provides reliable performance for IoT, embedded systems, automation, and wireless applications. It supports 2.4 GHz WiFi, Bluetooth Classic, and Bluetooth Low Energy (BLE) for seamless wireless connectivity. The additional PSRAM enables memory-intensive applications such as web interfaces, data buffering, and connected display systems. With a USB Type-C interface, onboard BOOT and EN buttons, and accessible GPIO pins, the board simplifies programming, prototyping, and debugging. It also supports multiple communication interfaces, including UART, SPI, I2C, I2S, and CAN-compatible TWAI, making it suitable for a wide range of hardware projects. Compatible with Arduino IDE, ESP-IDF, PlatformIO, and MicroPython, it offers a flexible development environment for beginners and experienced developers.
Dual-Core Processing: Delivers responsive performance for multitasking, wireless communication, and embedded applications.
WiFi and Bluetooth Connectivity: Enables wireless networking, device communication, and remote monitoring through integrated WiFi, Bluetooth Classic, and BLE.
Expanded Flash Memory: Provides additional storage space for firmware, application code, and embedded web resources.
Additional PSRAM: Supports memory-demanding applications such as data buffering, graphical interfaces, and network services.
USB Type-C Connectivity: Simplifies board powering, firmware uploading, and serial communication through a modern USB interface.
Versatile Peripheral Support: Allows easy integration with sensors, displays, actuators, and external communication devices.
Flexible Programming Support: Works with popular development environments, including Arduino IDE, ESP-IDF, PlatformIO, and MicroPython.
BOOT and Reset Controls: Includes dedicated buttons for entering firmware download mode and manually restarting the board.

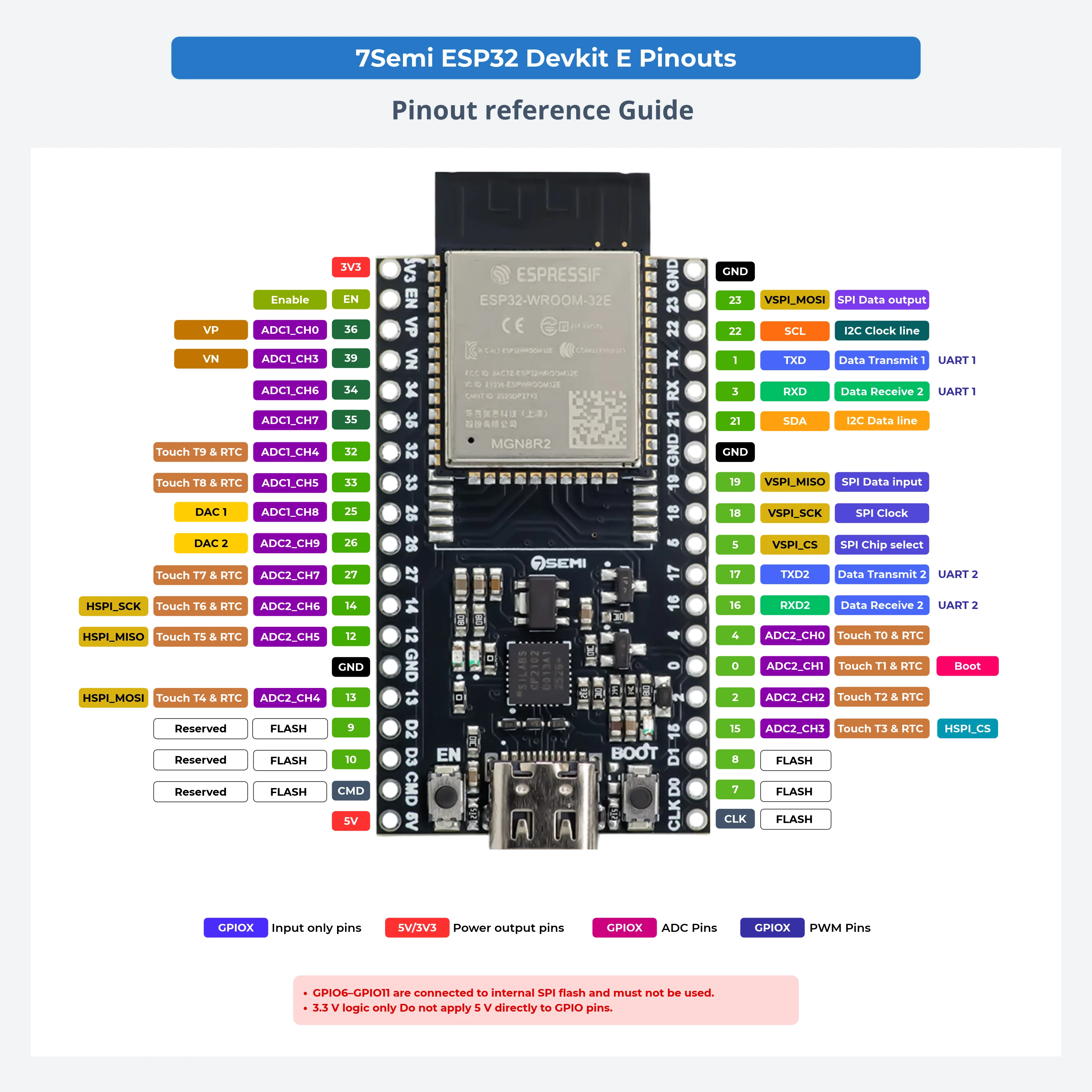

Accessible GPIO Connections: Features clearly labeled pin connections for breadboard prototyping and hardware development
