7SEMI ESP32-S3-Dev-BoardC-1-N16R8 WiFi, Bluetooth, 16MB Flash, 8MB PSRAM

7Semi
SKU
DC-10126

Provides a programmable Wi-Fi and Bluetooth platform for wireless and embedded IoT applications.

TOP VIEW

Select a photo to enlarge it.

70mm x 25mm x 4.86mm

Write a Review
$12.95
99 in stock

Shipped in 24 Hours from Mumbai Warehouse

Adding to cart… The item has been added

About this product

The 7Semi ESP32-S3 Dual USB Development Board is a compact platform powered by the ESP32-S3-WROOM-1-N16R8 module. It features a dual-core 32-bit Xtensa LX7 processor running up to 240 MHz for high-performance embedded applications. Built-in 2.4 GHz Wi-Fi and Bluetooth 5 LE provide reliable wireless connectivity for IoT applications. The board includes 16 MB Flash and 8 MB PSRAM, providing ample memory for demanding applications. Dual USB Type-C ports provide convenient programming, debugging, and native USB connectivity. Multiple interfaces including GPIO, ADC, PWM, UART, SPI, I²C, I²S, USB enable easy peripheral integration. It is ideal for IoT, automation, wireless sensing, smart devices, and embedded development.

Key Features

  • ESP32-S3-WROOM-1-N16R8 with dual-core Xtensa LX7 processor up to 240 MHz.
  • Built-in 2.4 GHz Wi-Fi and Bluetooth 5 LE connectivity.
  • 16 MB Flash + 8 MB PSRAM for memory-intensive applications.
  • Dual USB Type-C ports for programming, debugging, and native USB functionality.

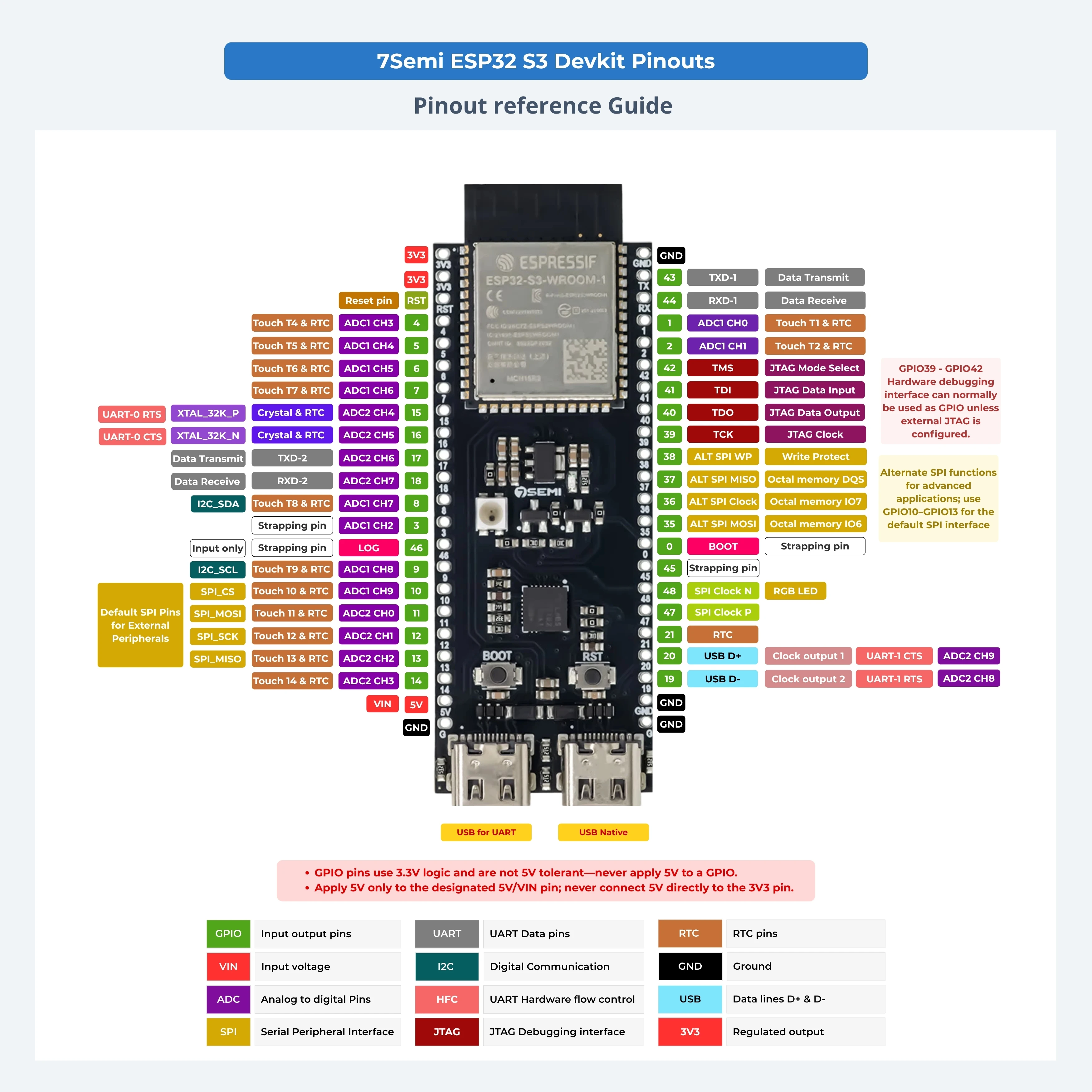

  • Supports GPIO, ADC, PWM, UART, SPI, I²C, I²S, USB interfaces.

Package Includes

  • 1 × 7Semi ESP32-S3 Dev Board

  • 2.54mm headers (unsoldered)

Resources

ESP32-S3 Datasheet

DFX File

STEP File
