7Semi Human Presence and Motion Sensor FOV 80deg STHS34PF80 - 4 Meters

7Semi
SKU
ES-12267

Detects stationary human presence and movement using infrared sensing.

7Semi STHS34PF80 Human Presence and Motion Sensor Module with 80° FOV and JST XH 2.5mm Connector
Sold Out

Select a photo to enlarge it.

Write a Review
$12.50

Out of stock

Out of stock

About this product

The 7Semi Human Presence and Motion Sensor is a compact and intelligent infrared sensing module built around the advanced STHS34PF80 sensor for accurate human presence, motion, and ambient temperature detection. Using precision black-body infrared sensing technology, the module detects both stationary and moving human targets up to 4 metres away without requiring additional optics or lenses.

Designed for smart automation, occupancy sensing, and low-power IoT applications, the module features an 80° field of view and an integrated smart processing engine capable of distinguishing between static and dynamic objects. Its floating thermal transistor architecture minimizes self-heating effects, ensuring stable and reliable detection across varying indoor conditions.

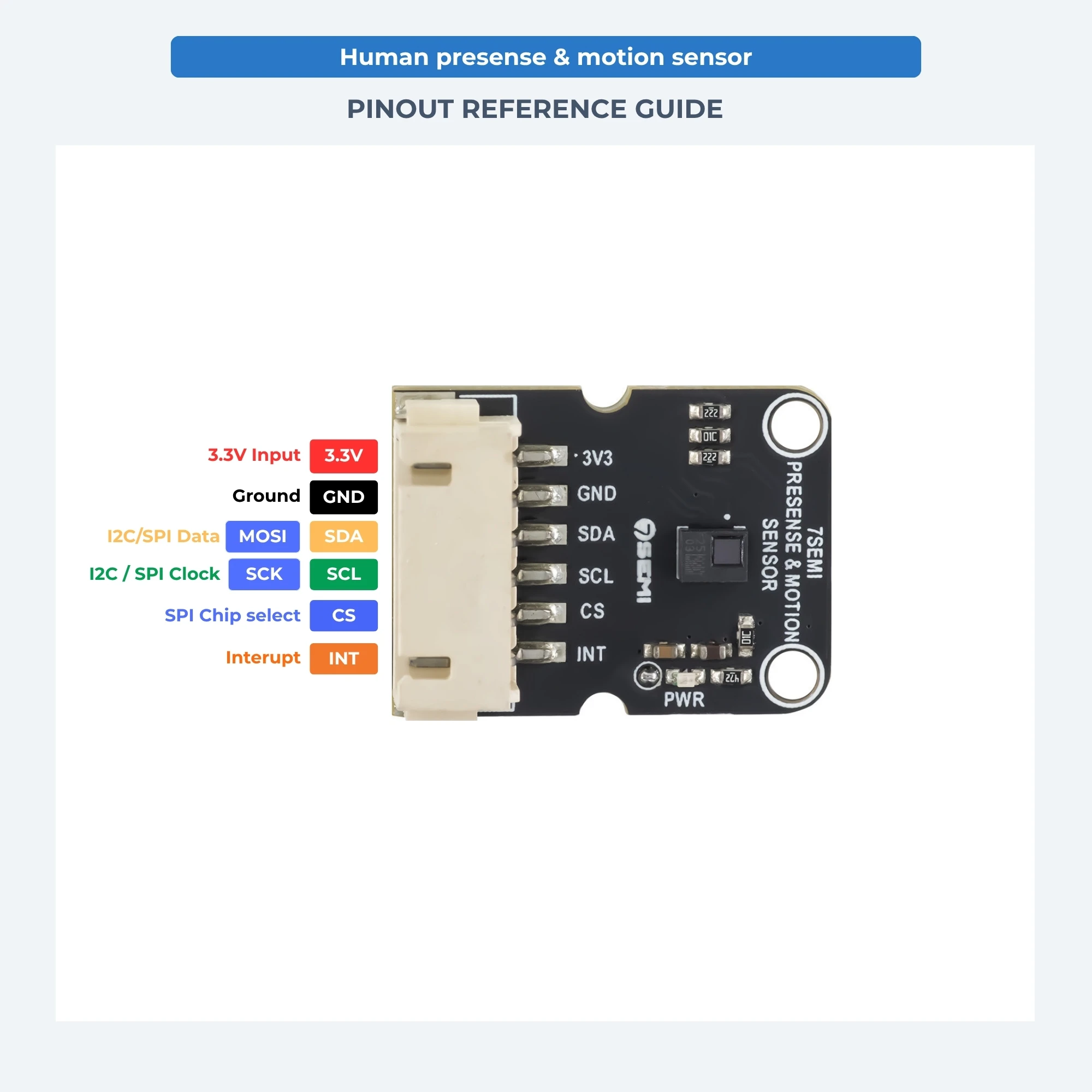

The board includes a 6-pin JST XH 2.5mm connector, onboard I2C/SPI interface support, standard PTH breakout pins, mounting holes, and a power status LED for easy integration into embedded systems, smart lighting, security devices, automation systems, and intelligent occupancy monitoring solutions.

Features

• Advanced STHS34PF80 infrared sensing technology for human presence and motion detection

• Detects stationary and moving human targets up to 4 metres

• Wide 80° field of view for large-area coverage

• Integrated smart algorithms for reliable occupancy detection

• Built-in IR band-pass filter operating in the 5–20 µm range

• Low-power operation suitable for battery-powered IoT devices

• Supports both I2C and SPI communication interfaces

• 6-pin JST XH 2.5mm side-entry connector for easy wiring

• Additional PTH pins for flexible prototyping and development

• Factory-calibrated sensor for stable and accurate measurements



Resources

STHS34PF80 Datasheet

DXF File

STEP File
